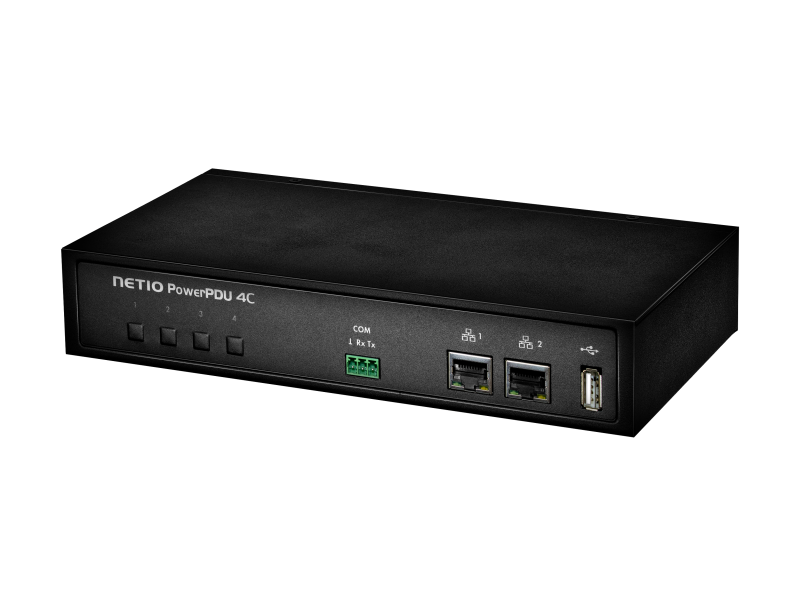

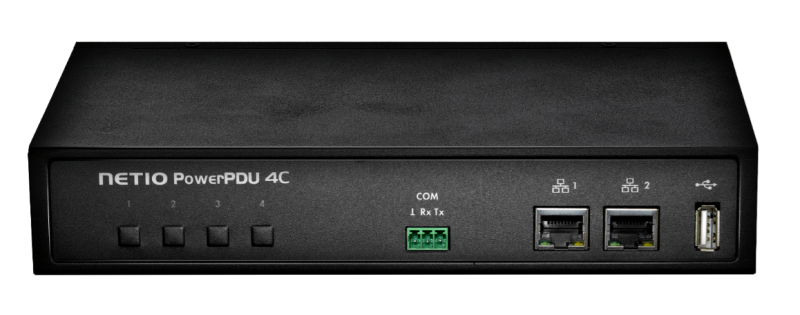

NETIO PowerPDU 4C - Intuitive Control and Electric Energy Consumption Measurement

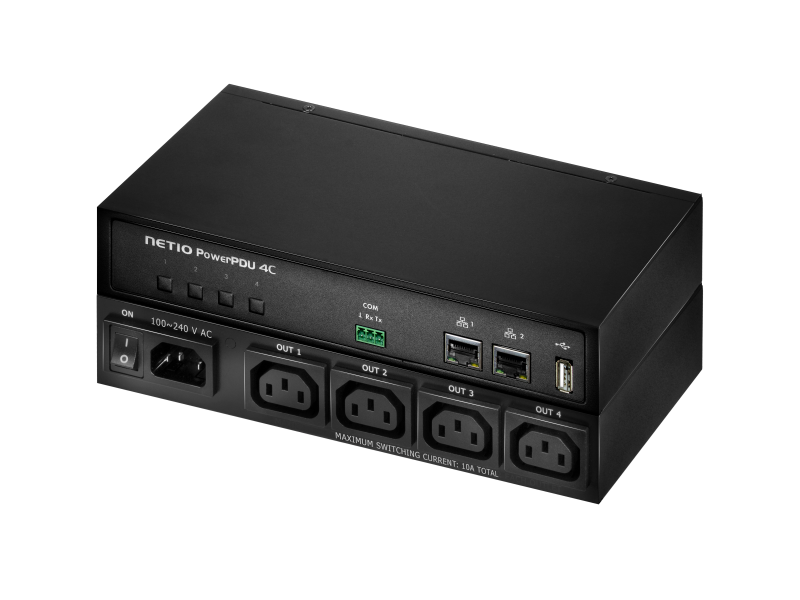

NETIO PowerPDU 4C is a small Power Distribution Unit (PDU) with a voltage of 110/230V. Each of the four IEC-320 C13 sockets can be independently controlled (Turn On / Turn Off / Reset / Switch).

Electric parameters (A, W, kWh, TPF, V, Hz) are accurately measured on each socket. The device is equipped with two LAN ports (and a built-in Ethernet switch) for connection to LAN.

Each power output supports ZCS (Zero Current Switching), providing protection for connected devices. Using the NETIO Cloud service, outputs can be controlled from anywhere. The NETIO Cloud service, available for a fee, uses SSL security and servers in Europe.

Benefits:

• M2M Protocol Support: PowerPDU 4C supports multiple M2M protocols, facilitating integration with various systems and enabling remote management.

• Independent Output Control: Each IEC-320 C13 socket can be controlled independently, allowing flexible control of connected devices. You can turn them on and off as needed.

• Precise Energy Measurement: The device accurately measures electrical parameters on each output, enabling monitoring and optimization of electrical energy consumption.

• Network Security: The device provides a high level of network security, securing data and communication using HTTPS/SSL protocols.

Technical Data:

• Input Voltage: 110/230V

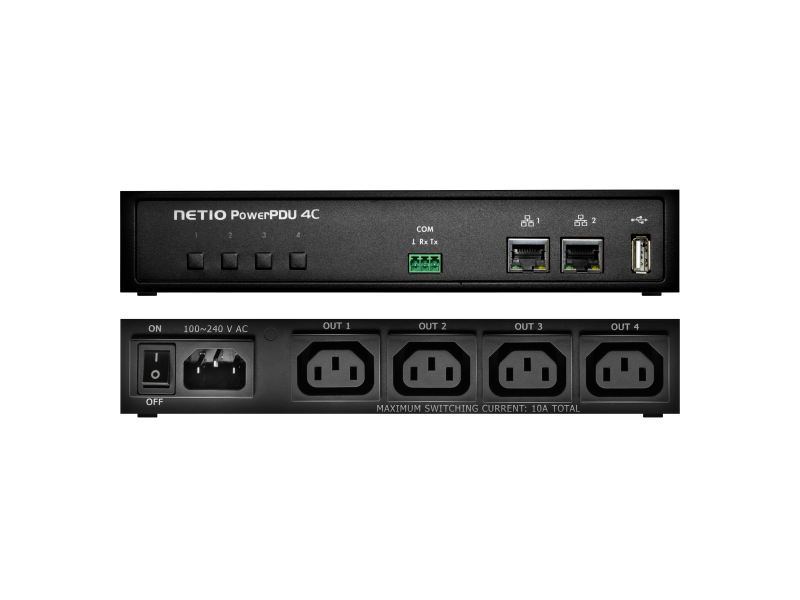

• Outputs: 4 x IEC-320 C13 socket

• Electric Measurement: A, W, kWh, TPF, V, Hz

• M2M Protocols: REST API, SNMP, MQTT, Modbus/TCP and more

• RS-232 Serial Port: Yes

• ZCS (Zero Current Switching): Yes

• NETIO Cloud Support: Yes

• Size: Small and compact

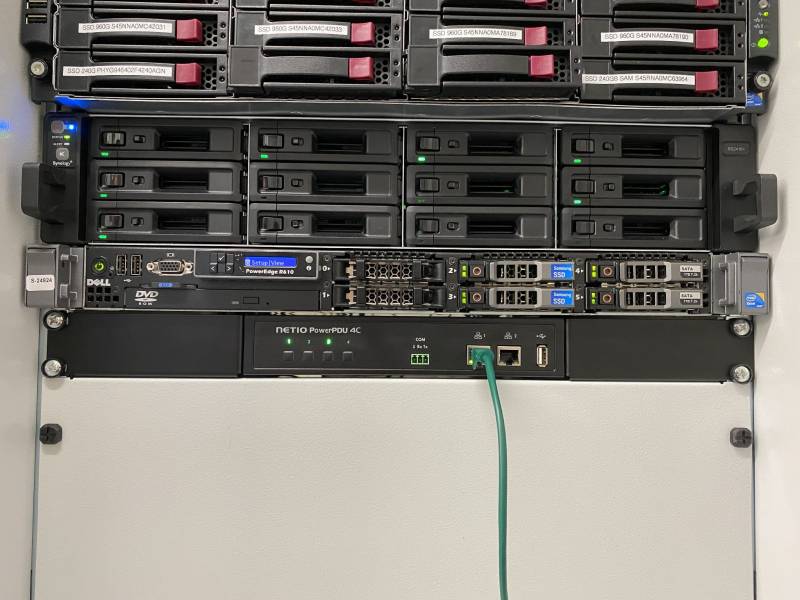

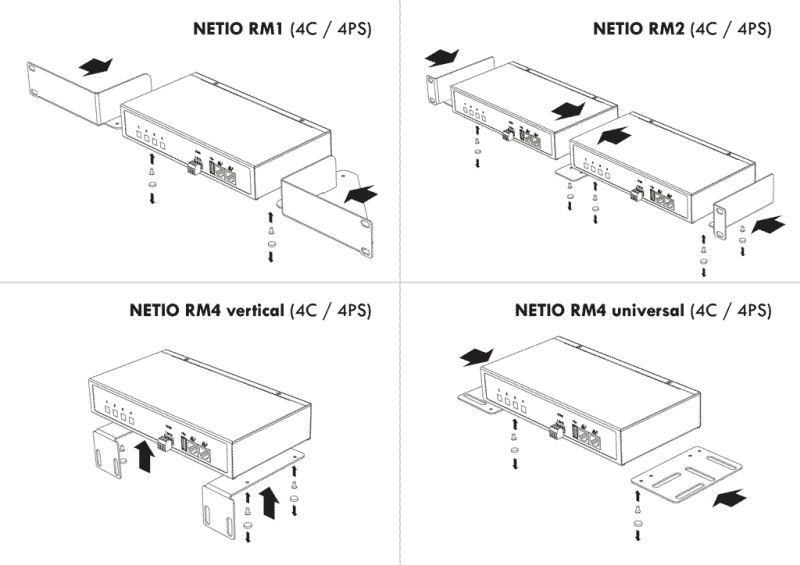

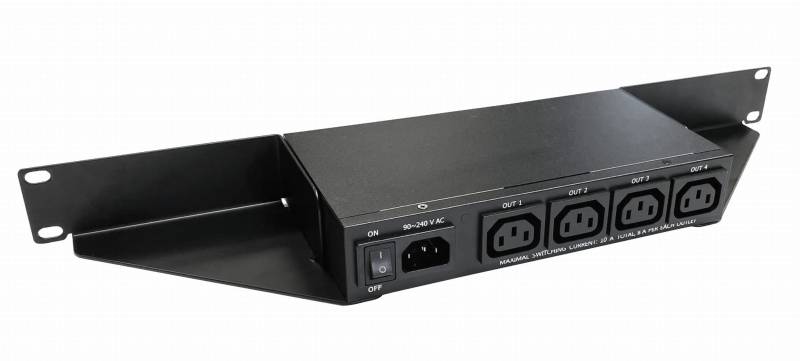

• Mounting: Possible to mount in a 19" rack cabinet

Online Demo

Login: demo

Pass: demo

Applications of NETIO PowerPDU 4C:

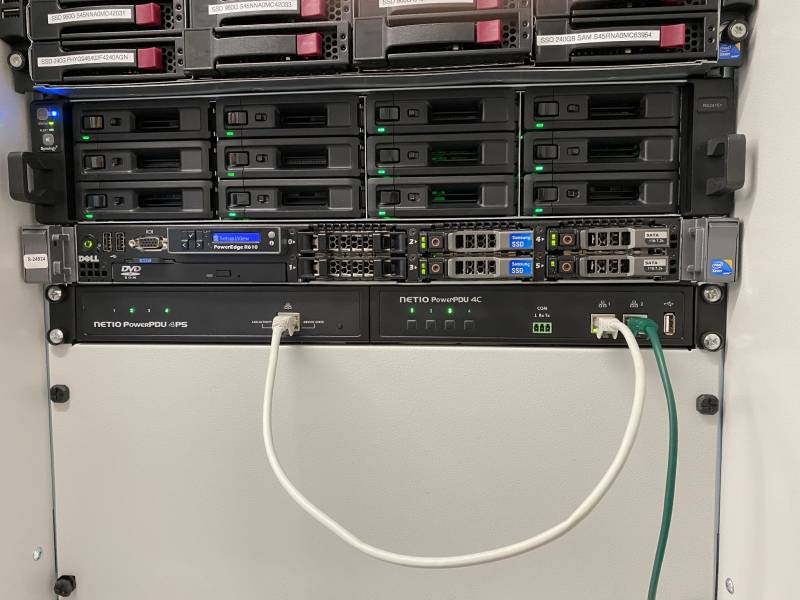

• Data Centers: Ideal for power distribution in 19" racks in data centers, allowing independent control of devices.

• Conference Rooms: Often used in conference rooms and multimedia applications for individual control of 110/230V sockets.

• Energy Consumption Monitoring: Excellent for measuring energy consumption for equipment such as 3D printers or laboratory equipment.

• Digital Signage and Multimedia: Used for controlling multimedia screens and monitoring their functions.

• Remote Restart: Used in monitoring centers or information points where continuous operation is required.

• Water Device Control: Used for monitoring and controlling various devices such as pumps, heaters, etc., in aquariums and other places.

Other Advantages

Electric Power Measurement:

NETIO PowerPDU 4C accurately measures electrical parameters on each output, providing precise data on energy consumption. You can monitor current, power, energy, power factor, voltage, and frequency.

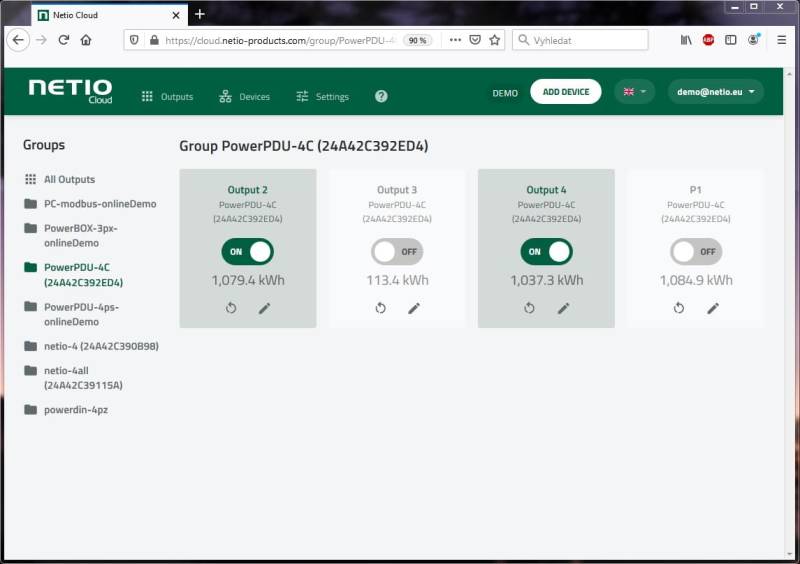

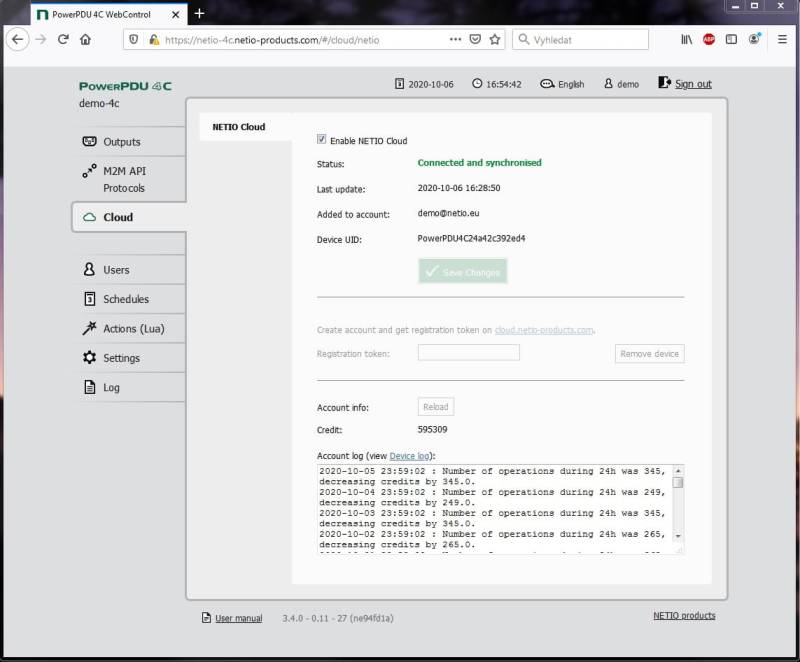

NETIO Cloud:

With the NETIO Cloud service, you can control devices from anywhere. Connection to the NETIO Cloud service is secure and supported by NETIO products a.s.

RS-232 Serial Port:

The device has an RS-232 serial port, which can be used as a remote serial port or controlled using Lua scripts.

Lua Scripts:

NETIO PowerPDU 4C can execute custom scripts written in Lua. This allows for flexible automation and device control.

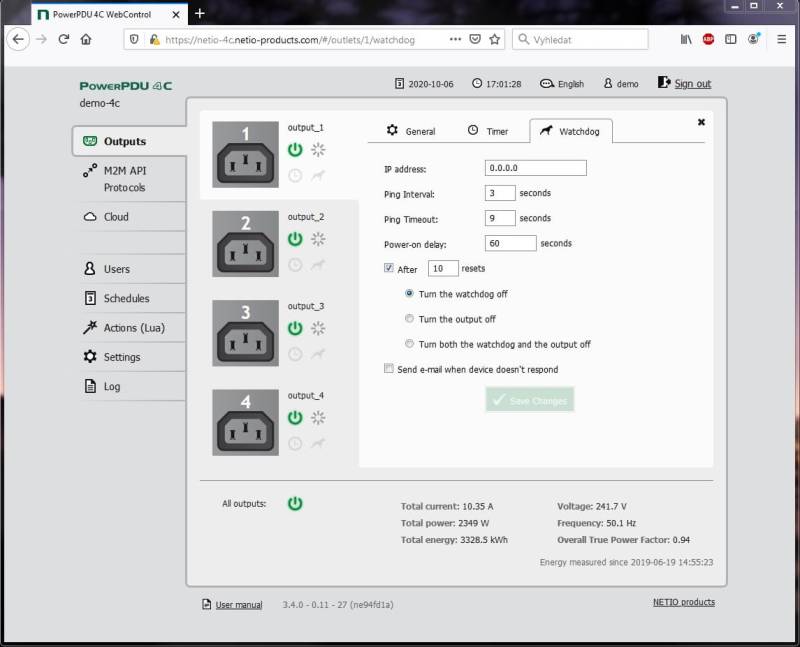

Network Device Monitoring:

The IP WatchDog function monitors PING (ICMP) responses and can automatically restart connected devices in case of failure.

Power-On State:

You can define the output state immediately after power-on, which is useful in some applications.

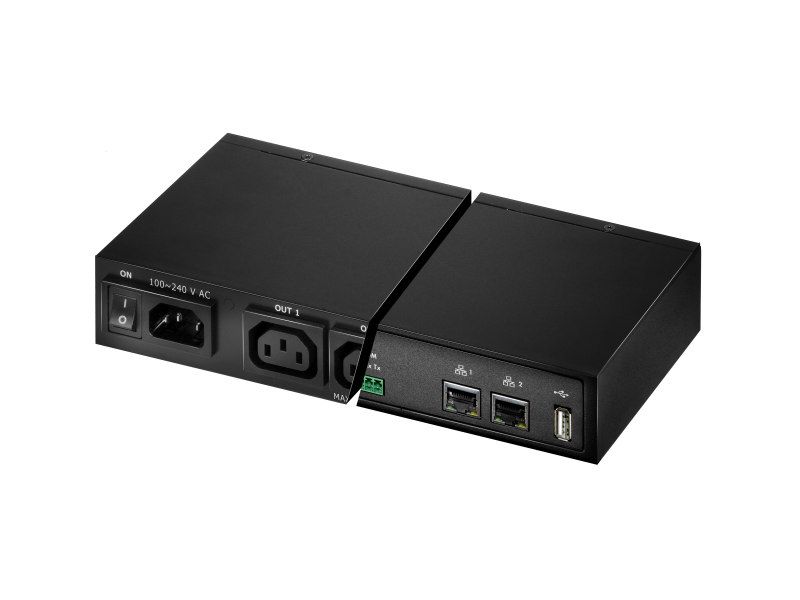

Built-in Ethernet Switch:

The device includes a built-in Ethernet switch, allowing connection of multiple PowerPDU 4C units in a chain and assigning each of them a unique IP address.

Zero Current Switching (ZCS):

ZCS is a feature that ensures the device switches the IEC-320 C13 socket when the current zero level is exceeded. This protects connected devices and minimizes electromagnetic interference.

Independent Output Control:

Output control is completely independent of the LAN communication system. The output state is not changed by LAN disconnection, device reset, or software update.

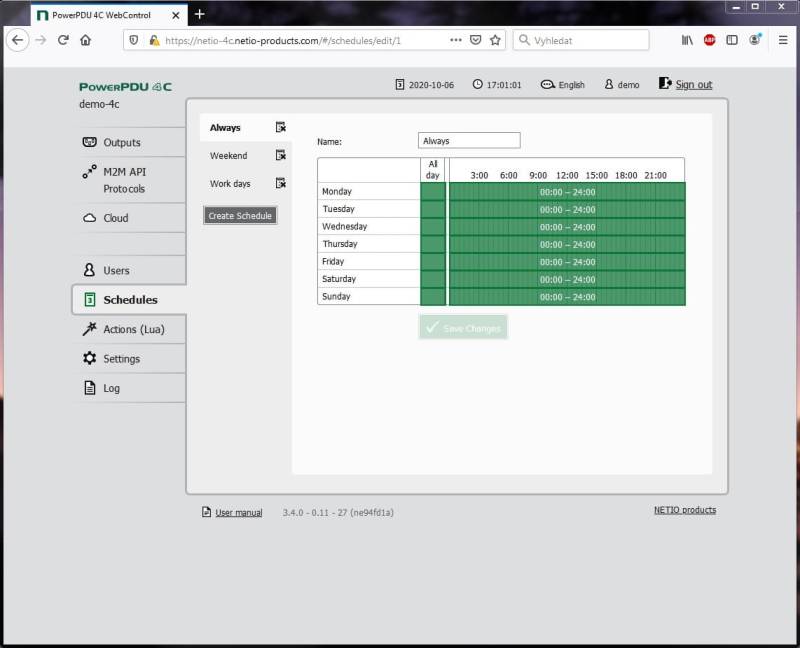

Scheduler (Output Scheduling):

Ability to schedule turning on and off individual outputs at specified times.

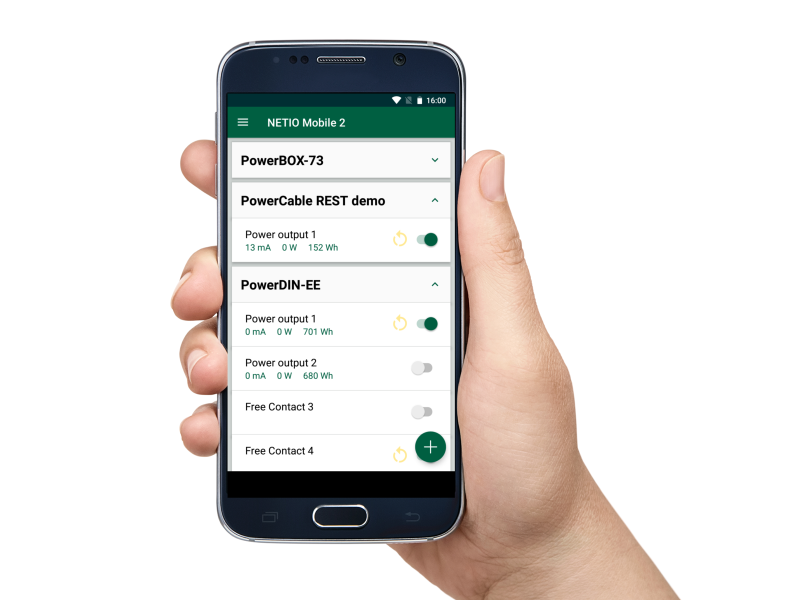

Mobile Application:

The device can be controlled using the NETIO Mobile 2 mobile application available on Android and iOS.

With NETIO PowerPDU 4C, you can effectively control and monitor your electrical devices from anywhere and manage them flexibly and precisely. It is a tool that contributes to energy savings and increases the reliability of your system.
