NETIO PowerPDU 4KS - Power Management with Electricity Measurement and Output Switching

NETIO PowerPDU 4KS is an intelligent power distribution unit (PDU) with 4 IEC-320 C13 output sockets and 1 digital input (DI).

The PDU measures electricity consumption (A, kWh, TPF, W, V, Hz) and allows individual switching on/off of each output. The device supports local Ping & Power WatchDog functions and time scheduling (Scheduler).

Benefits:

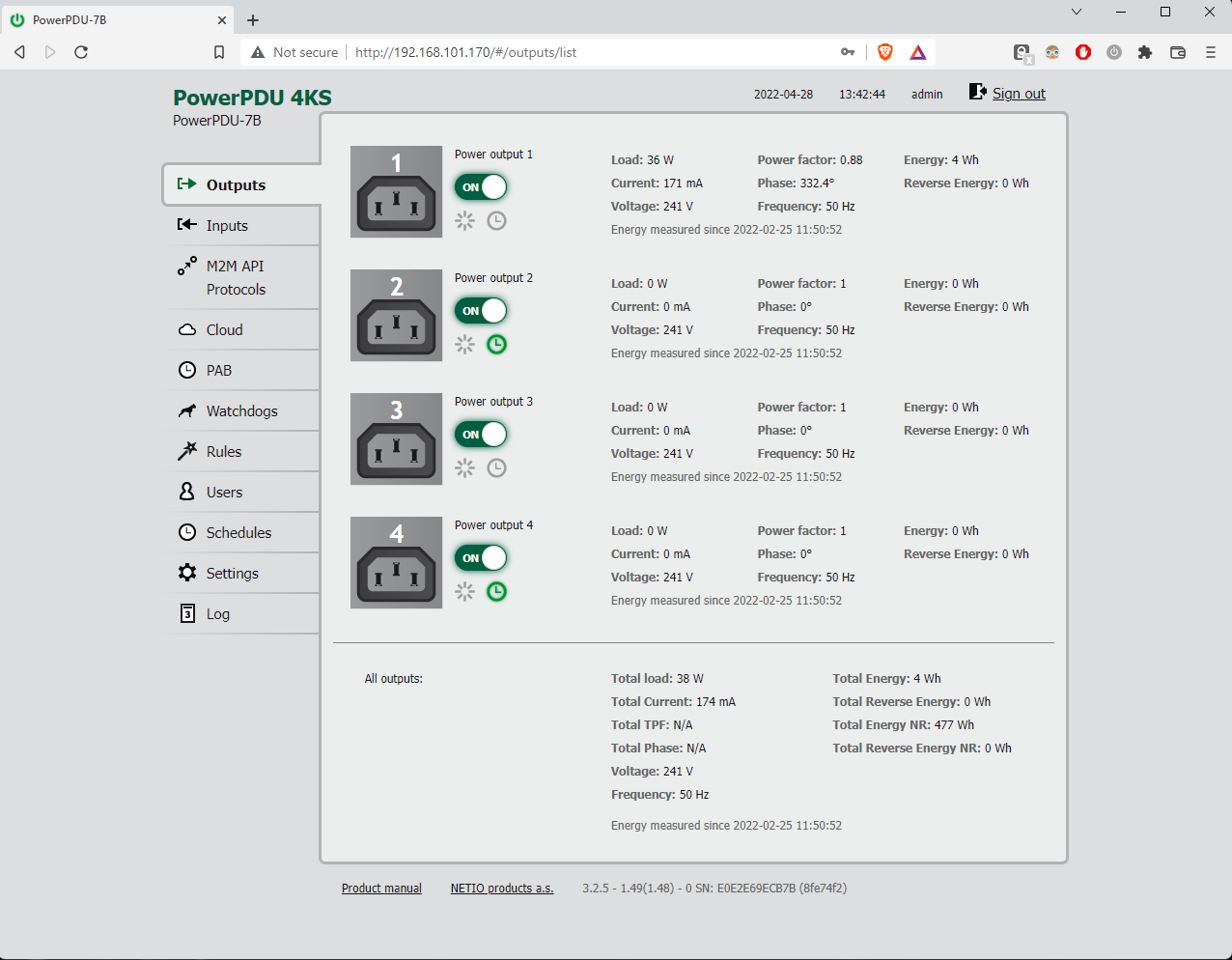

• Individual Output Control: Each output can be independently switched on and off via the network interface, mobile application, NETIO Cloud service, or Open API.

• Electricity Measurement: NETIO PowerPDU 4KS accurately measures electricity consumption and other parameters with 1% accuracy, enabling energy consumption monitoring and optimization.

• M2M Protocols Support: Supports various M2M protocols such as Modbus/TCP, MQTT, SNMP, Telnet, facilitating integration with other systems.

• Multi-position Mounting: Can be mounted in rack cabinets in various positions - horizontally, vertically, or as a 1U device.

• Remote Control with NETIO Cloud: Ability to remotely control outputs from anywhere in the world using the NETIO Cloud service. This service is paid but offers secure SSL connection and servers in Europe.

• Integration with AV Systems: With AV drivers, you can easily connect NETIO sockets to professional Audio/Video systems such as Neets, Crestron, Control4, etc.

Technical Specifications:

• Input Voltage: 110/230V

• Outputs: 4 x IEC-320 C13 sockets

• Electricity Measurement: Yes, with accuracy up to 1%

• M2M Protocols: Modbus/TCP, MQTT, SNMP, Telnet, and others

• DI (Digital Input): 1 input, capable of controlling outputs or counting S0 impulses

• Mounting: Horizontal, vertical, or as a 1U device in a rack cabinet

• ZCS (Zero Current Switching): Supported, minimizes voltage spikes and prolongs device lifespan

Online Demo - LINK

Login: demo

Pass: demo

Applications of NETIO PowerPDU 4KS:

1. Data Centers: Ideal for measuring and distributing electricity in 19" rack cabinets in data centers. Allows remote rebooting of connected devices.

2. Electricity Monitoring: Excellent for real-time energy consumption monitoring and cost reporting.

3. Integration with Other Systems: Supports various M2M protocols, facilitating integration with systems from other manufacturers.

4. Remote Control: Ability for remote control via the NETIO Mobile 2 mobile app or NETIO Cloud service.

Additional Benefits

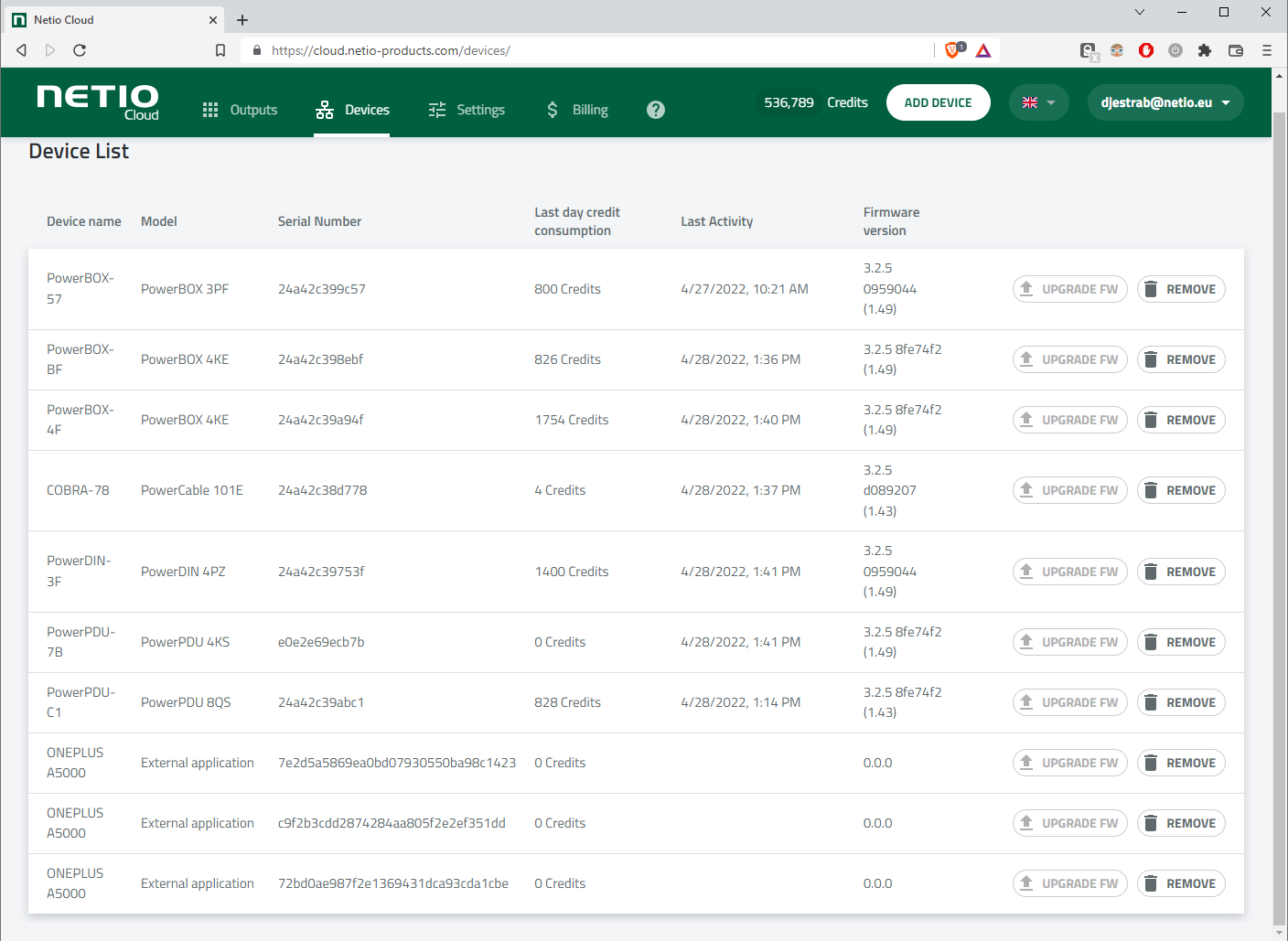

NETIO Cloud:

The NETIO Cloud service enables remote control of outputs from anywhere in the world. It is a paid service but provides secure SSL connection and servers in Europe. New devices connected to the NETIO Cloud service receive a welcome credit for the first 3 years of service.

Industrial Product Quality:

NETIO PowerPDU 4KS is designed for industrial applications. It operates in a wide temperature range (-20°C to +65°C), supports software updates over the Internet, remembers the last state of sockets before power loss, and switches relays at zero voltage.

Zero Current Switching (ZCS):

The most important feature of NETIO PowerPDU 4KS is ZCS (Zero Current Switching). It controls the precise moment when the mechanical relay contacts close and open, minimizing current spikes and prolonging the lifespan of connected devices.

PowerUp State Control:

For some applications, it is important to set the socket state immediately after device startup. It is also possible to configure the delay in switching on outputs after power restoration.

Scheduler Outputs:

The Scheduler function allows scheduling the switching on and off of outputs at specified times and days of the week.

Power Analysis (PAB):

WatchDog Power is an autonomous system based on energy analysis. It continuously monitors the current (energy) of the device connected to any NETIO PDU measurement socket. It can be used for all 4 outputs.

Mobile App:

The device can be controlled using the NETIO Mobile 2 mobile app on Android and iOS systems. It enables control of individual outputs, energy consumption data reading, and many other functions.

Comparison of PowerPDU 4KS, 4PS, and 4C:

NETIO offers three product versions, PowerPDU 4KS, 4PS, and 4C.

• PowerPDU 4KS measures and controls outputs and supports API interfaces.
• PowerPDU 4PS allows only output control.
• PowerPDU 4C additionally measures electrical parameters with high accuracy, supports ZCS, and many other functions.

Mobile App:

Using the NETIO Mobile 2 app, users can control outputs from mobile devices.
