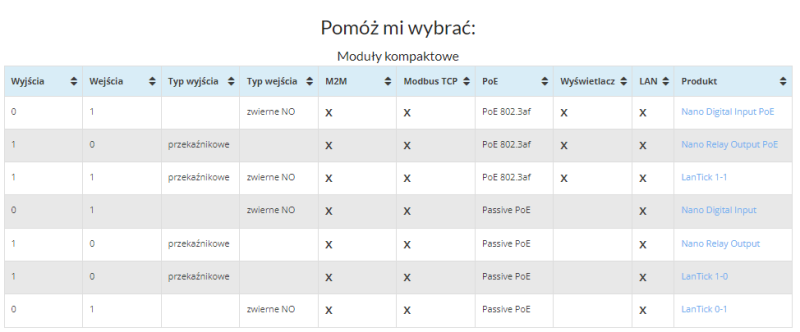

Lantick - wszystkie modele kompaktowe.png

Read the input status via Ethernet

Rating:

Gross price: €137.54

incl. 23.00% TAX, excl. shipping costs

Regular price:

137.54

The lowest price during 30 days prior to the reduction:

Net price: €111.82

excl. 23.00% TAX, excl. shipping costs

Regular price:

The lowest price during 30 days prior to the reduction:

・Kup teraz i zapłać za 30 dni

quantity szt.

You gain 447 points []

product unavailable

Availability: no information

Dispatched within: 3 working days

Delivery:

Vendor:

Product code: NANO_Digital_Input_PoE

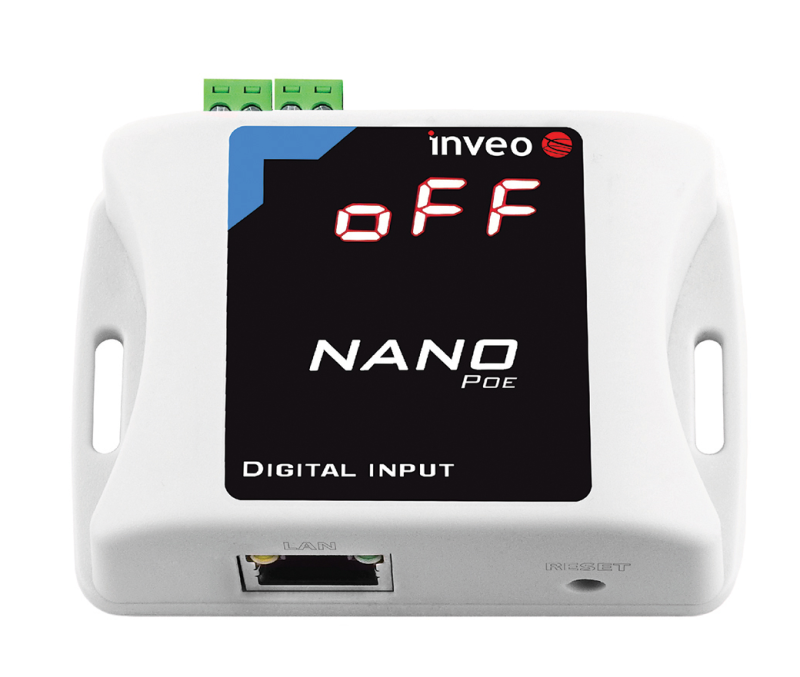

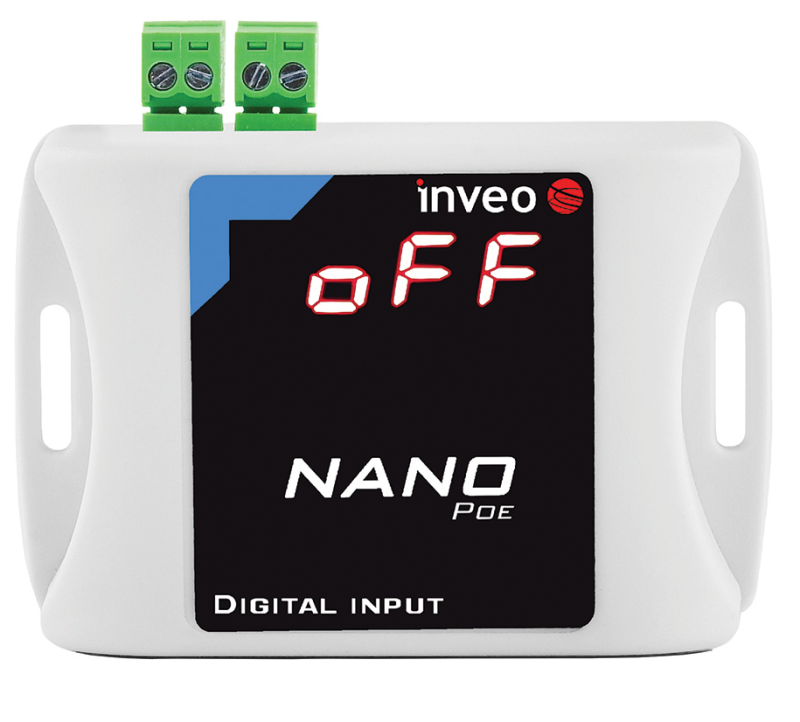

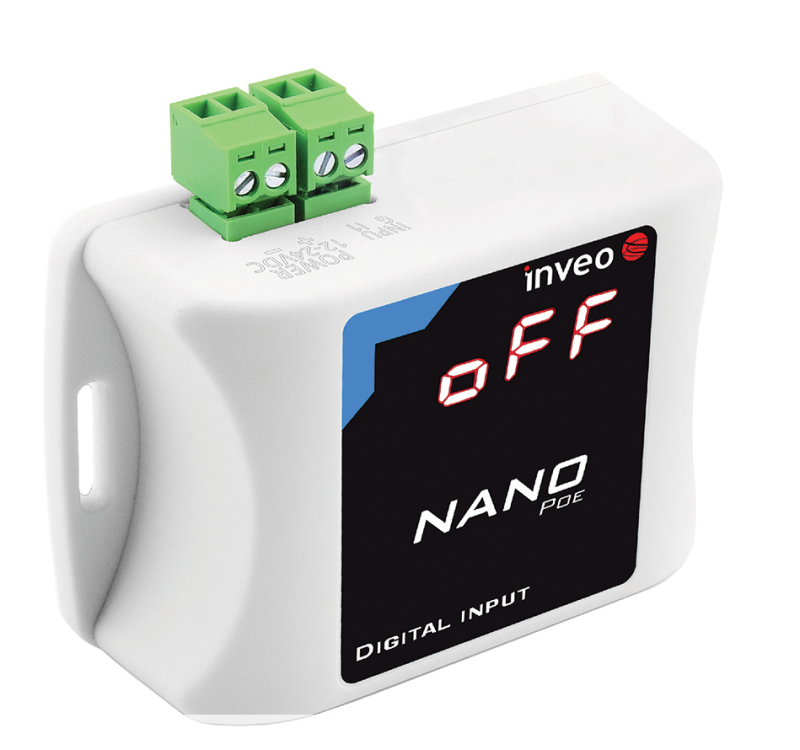

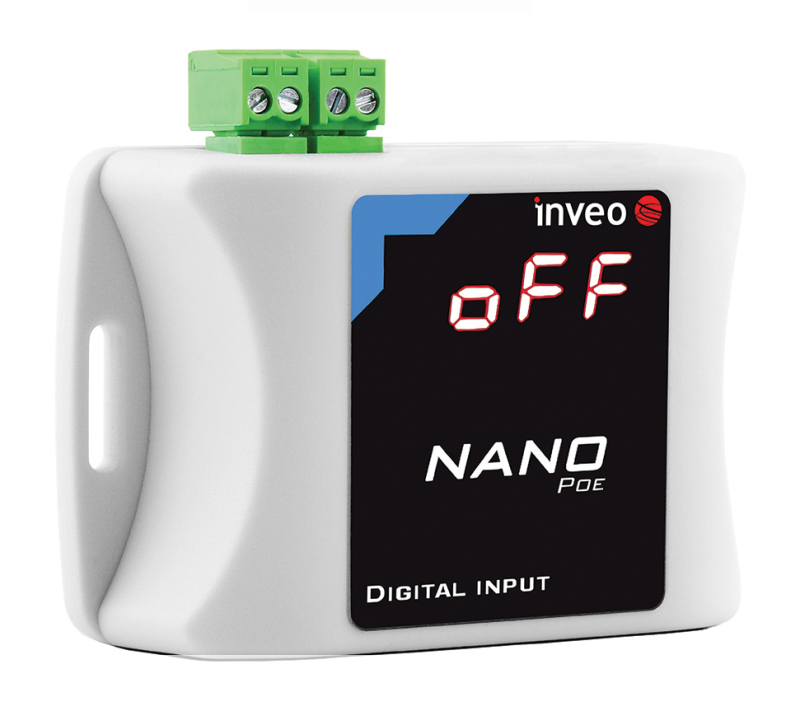

Read the input status via Ethernet

Technical data

Power supply

PoE IEEE 802.3af,
10-24 VDC, screw connection,
Power consumption: 1,5W – 2W.

Inputs

Number of inputs: 1,
Type of the input: NO, dry contact,
Maximum value of the counter: 4 294 967 296,
Maximum input frequency: 1000Hz.

Communication

Port LAN 1x10Mbps, RJ45.

M2M connection configuration – remote relay extension

Nano series devices (Nano Digital Input PoE, Nano Relay Output PoE) as the modules of the Lantick series can work together to create a remote extension input -> output.

Using the M2M connection, it is possible to design a remote relay activation path (blower, fan, heater) after the input is triggered.

How it’s working: After triggering the input in the Nano Digital Input PoE module, the relay in the Nano Relay Output PoE module will switch on.

Example of direct connection (M2M) configuration between Inveo modules:

Nano Digital Input	Nano Relay Output
Network -> IP Address: 192.168.111.15	Network -> IP Address: 192.168.111.16
Network -> IP Mask: 255.255.255.0	Network -> IP Mask: 255.255.255.0
Network -> Destination IP: 192.168.111.16
Network -> Destination PORT: 9761
Administration -> Enable Destination Client	Administration -> Enable Program Access
Channel -> Dest:1

Supported protocols

HTTP (GET) protocol,
M2M,
SNMP (Trap) protocol,
Modbus TCP protocol,
Built-in web server,
TCP/UDP communication protocol,
Smartphone / tablet with Android system.

If the MQTT Inveo service is enabled, the module sends the input status to the server every 1 minute and every input status change. You can read the input status directly on the smartphone. Only what you need is any application the support MQTT (for Android system).

The adventage of using MQTT Inveo service is that you do not need route ports on the router. Simply connect the device to the local router, configure the application and that’s all. You can enjoy remote data reading.

Device configuration

At the first start-up, it is necessary to configure the device. The easiest way to configure Inveo devices is to use a Discoverer application. The program is available here. After installing and launching the application, all Inveo devices connected to the network will appear in the table. If the device has not been found, select another Interface or check the connection to the router.

If the devices have the Enable Remote Config service disabled, it is necessary to change the settings manually by changing the computer’s IP address. The precise device configuration instruction can be found in the manual.
