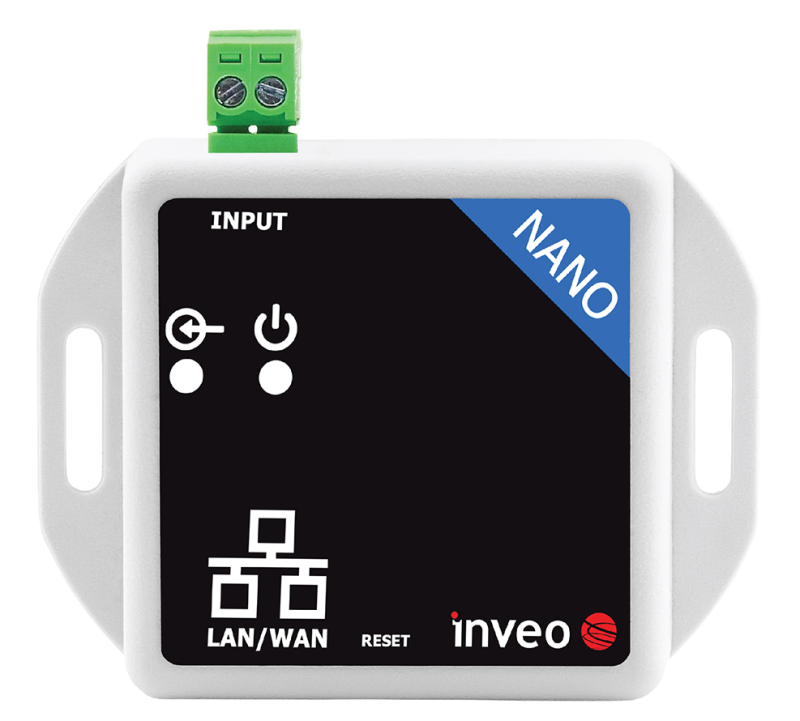

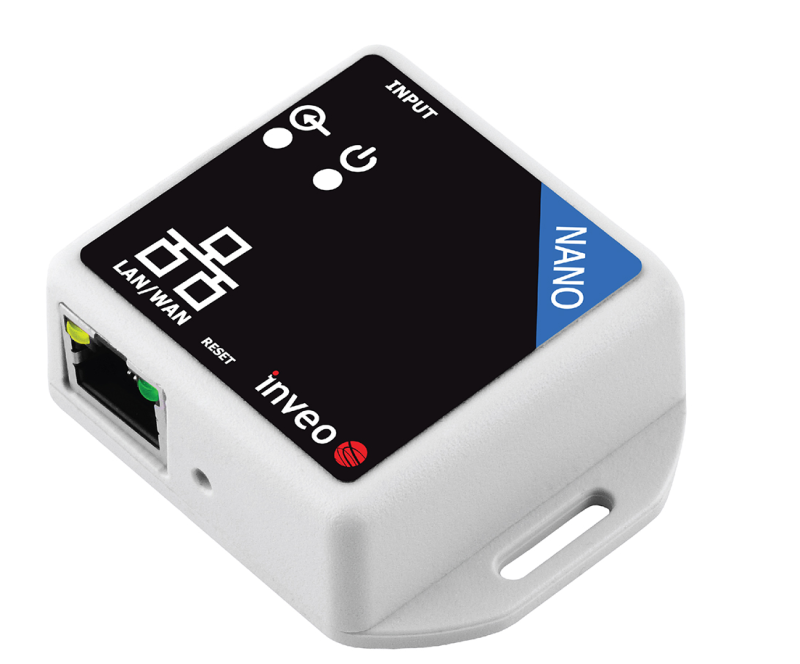

NANO IN Input status monitoring via LAN

Rating:
0
Gross price: €100.00
incl. 23.00% TAX, excl. shipping costs

Regular price:

100.00
The lowest price during 30 days prior to the reduction:
Net price: €81.30
excl. 23.00% TAX, excl. shipping costs

Regular price:

The lowest price during 30 days prior to the reduction:
quantity szt.
You gain 325 points [?]

product unavailable

Vendor: Inveo
Product code: EN_NANO_IN

Technical data

Power supply

  • Passive PoE 10-24VDC,
  • Power consumption: 1,5W – 2W.

Inputs

  • Number of inputs: 1,
  • Type of the input: NO, dry contact,
  • Maximum value of the counter: 4 294 967 296,
  • Maximum input frequency: 1000Hz.

Communication

  • Port LAN 1x10Mbps, RJ45.

Supported protocols

  • HTTP (GET) protocol,
  • M2M,
  • SNMP (Trap) protocol,
  • Modbus TCP protocol,
  • Built-in web server,
  • TCP/UDP communication protocol,
  • Smartphone / tablet with Android system.

If the MQTT Inveo service is enabled, the module sends the input status to the server every 1 minute and every input status change. You can read the input status directly on the smartphoneOnly what you need is any application the support MQTT (for Android system).

The adventage of using MQTT Inveo service is that you do not need route ports on the router. Simply connect the device to the local routerconfigure the application and that’s all. You can enjoy remote data reading.

M2M connection configuration – remote relay extension

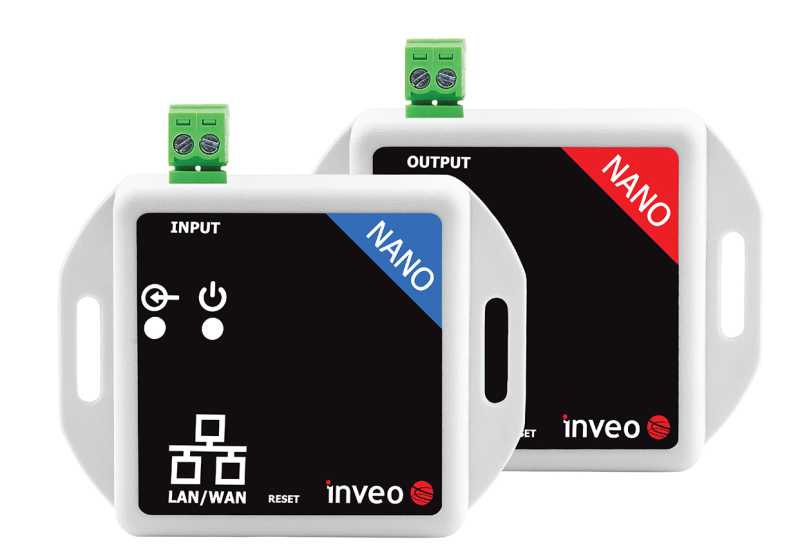

Nano series devices (Nano InNano Out) as the modules of the Lantick series can work together to create a remote extension input -> output.

Using the M2M connection, it is possible to design a remote relay activation path (blower, fan, heater) after the input is triggered.

How it’s working: After triggering the input in the Nano Digital Input PoE module, the relay in the Nano Relay Output PoE module will switch on.

Example of direct connection (M2M) configuration between Inveo modules:

Device configuration

At the first start-up, it is necessary to configure the device. The easiest way to configure Inveo devices is to use a Discoverer application. The program is available here. After installing and launching the application, all Inveo devices connected to the network will appear in the table. If the device has not been found, select another Interface or check the connection to the router.


Change settings
Change settings
Inveo Discoverer
Inveo Discoverer


If the devices have the Enable Remote Config service disabled, it is necessary to change the settings manually by changing the computer’s IP address. The precise device configuration instruction can be found in the manual.

Files to download:
