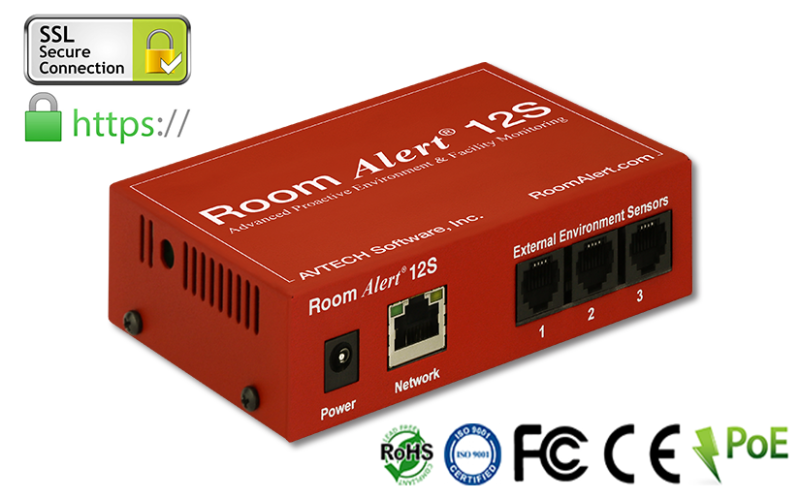

Room Alert 12S IP Controller - Comprehensive Environmental Monitoring

Room Alert 12S is an advanced device from the Room Alert PRO series, offering exceptional control over environmental conditions in your facility. It features a range of secure protocols that ensure safe and reliable environmental monitoring.

Key Information

Benefits

1. Secure Connections: Room Alert 12S allows access to its built-in web interface using HTTP or HTTPS protocols, ensuring secure communication.

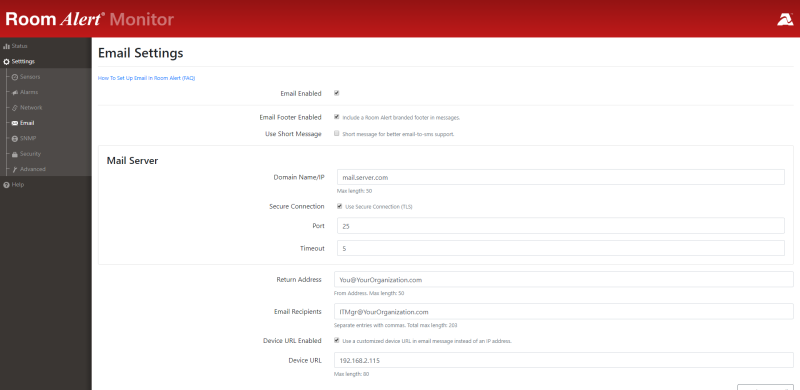

2. Data Transmission: Device data can be transmitted to the RoomAlert.com account via HTTPS protocol and email notifications can be sent from the device via TLS mail server.

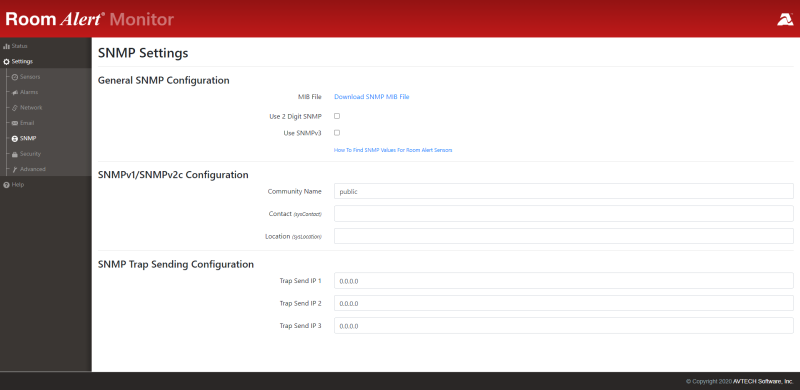

3. SNMP Integration: The device can be integrated with SNMP v3 or SNMP v1 and SNMP v2c, enabling monitoring and management using SNMP.

4. Software Updates: Software updates are easy and secure, requiring only user authentication and password.

5. Multi-functionality: Room Alert 12S/12SR features many advanced functions, including the ability to connect up to 8 additional sensors. It comes standard with 1 external digital temperature and humidity sensor (7.62m), allowing you to monitor temperature, humidity, heat index, and dew point.

6. Device Control: Dedicated ports allow remote control of electrical devices such as air conditioners, fans, or alarm panels, as well as LED indicators and sirens on the lighting tower.

7. Rack Mountable: The 12SR version features a removable rack mount and occupies only 1U of space in a server cabinet. Ideal for monitoring medium-sized spaces requiring comprehensive control.

8. Flexible Mounting: The 12S version can be ceiling-mounted or wall-mounted using the dedicated bracket.

9. Integration with Powerful Platforms: Ability to integrate with RoomAlert.com, room alarm manager, SNMP, or JSON of other companies, providing versatility and flexibility in accessing environmental data.

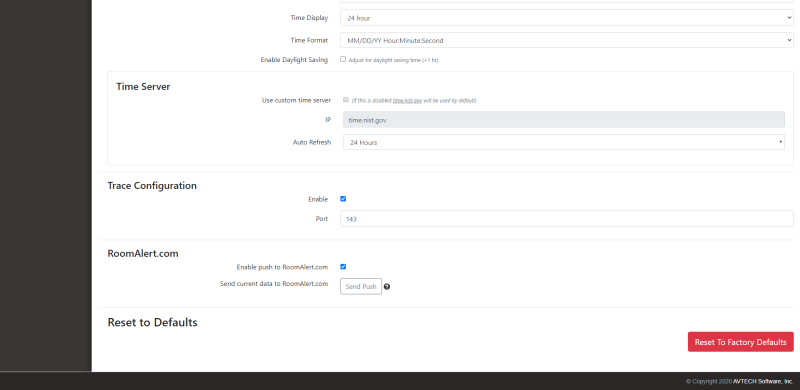

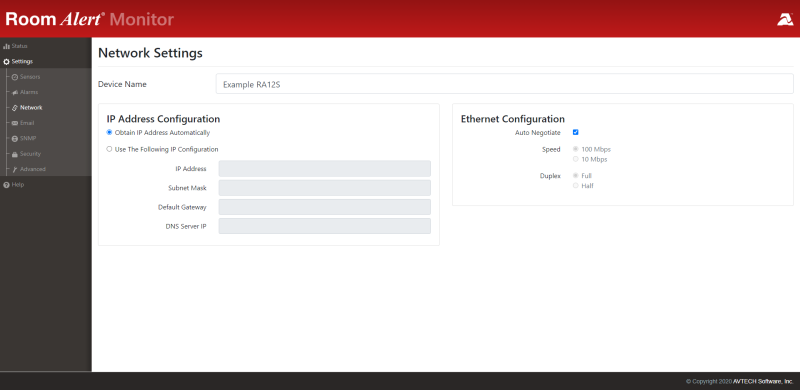

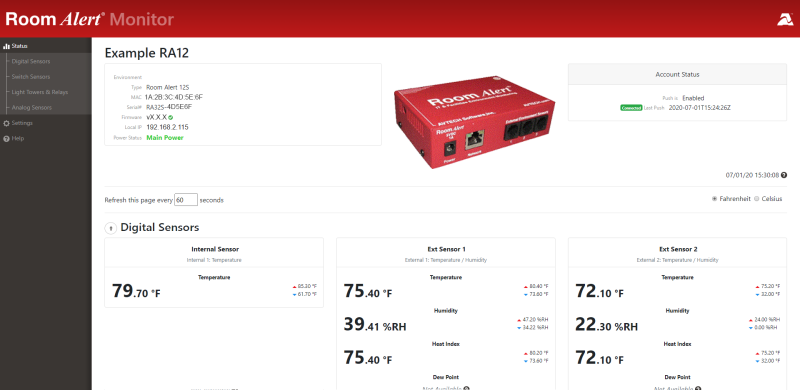

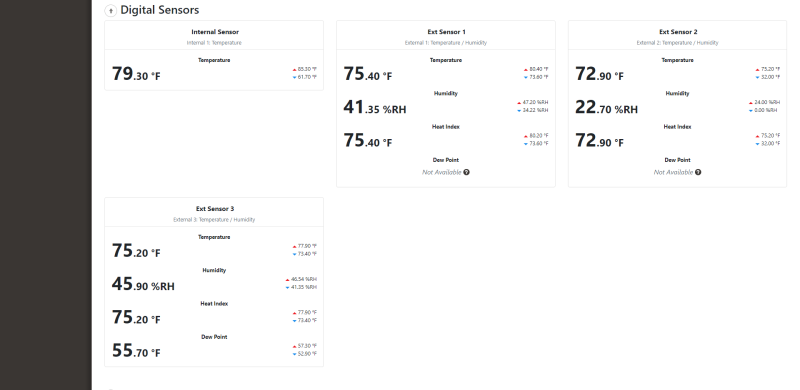

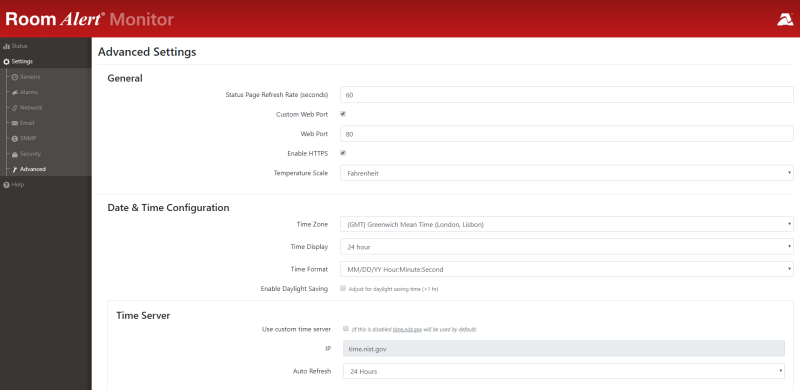

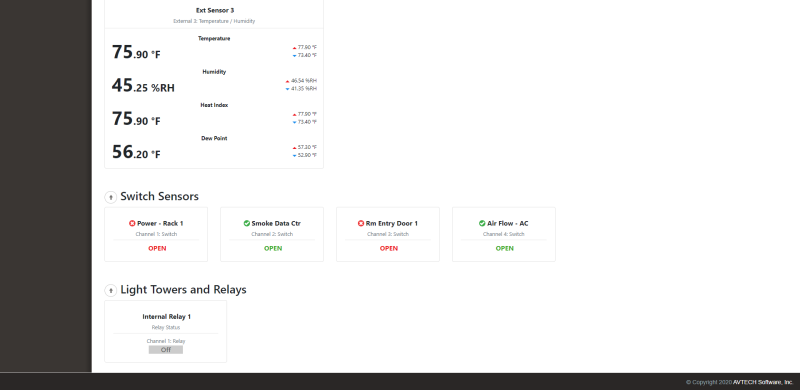

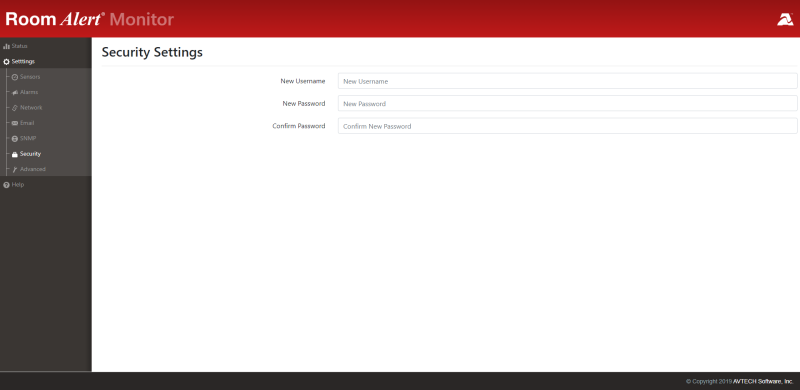

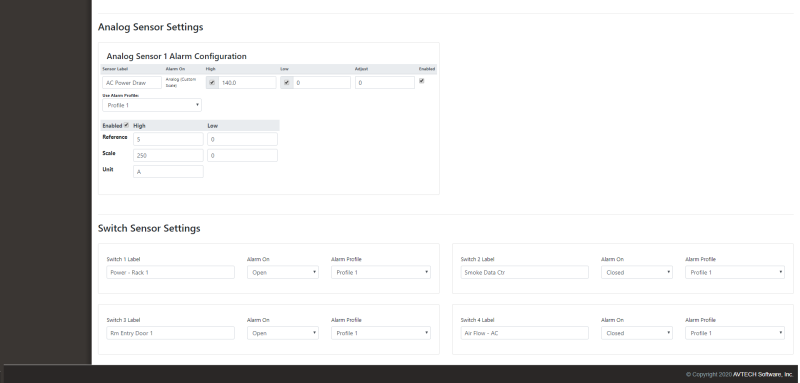

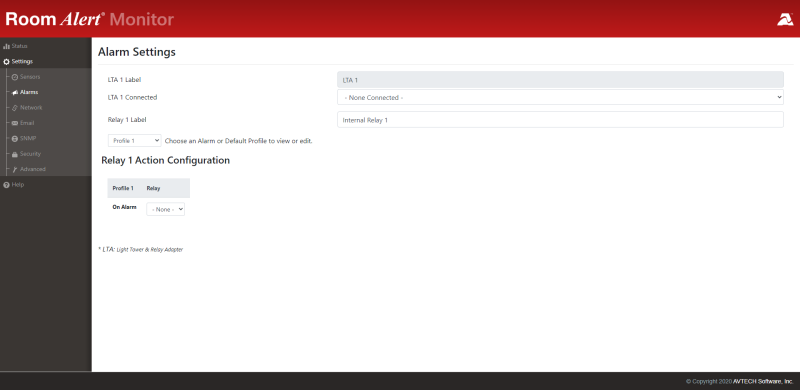

10. Easy Configuration and Operation: The device offers an intuitive web interface that allows convenient configuration and sensor readings review.

11. Precise Measurements: The internal temperature sensor provides accurate measurements over a wide temperature range from -40 to 85°C.

12. PoE or Power Supply: The device can be powered by PoE or the included 5V power supply.

13. Durable Construction: Room Alert 12S is designed for reliability and durability, ensuring long-term operation.

Package Includes

• Room Alert 12S unit
• 5V power supply with adapter
• 3m patch cord
• Wall mount bracket
• External digital temperature and humidity sensor 7.5m
• RoomAlert.com account in Base version with promotional upgrade option

Video

Summary

Room Alert 12S is the perfect solution for anyone who values control over environmental conditions. Whether you run a server room, warehouse, or any other place that requires monitoring, Room Alert 12S provides the necessary information to make quick decisions in case of changing environmental conditions. It is a tool that helps ensure the safety and efficiency of your workplace.

Your Comprehensive Monitoring Tool: Room Alert Account

The Room Alert account is free for every Room Alert user, an online dashboard designed to provide smooth monitoring and management capabilities for Room Alert installations.

With a Room Alert Account, which includes Monitor360 technology, you have full control over monitoring your environment. It allows you to create alerts, prepare reports, receive push notifications, and collaborate in real-time with your team. Here are key features that make the Room Alert Account an ideal solution for your monitoring needs:

Monitor and Manage:

• Central Dashboard: Access the central main panel from anywhere at any time, providing a comprehensive view of all Room Alert monitors and sensors, making it easy to manage and supervise the entire monitoring system.

• Real-Time Data: Receive real-time updates on environmental conditions such as temperature, humidity, or power status, allowing quick action to avoid critical situations.

• Monitor360: Utilize our patented technology to create virtual sensors and alerts, giving you an even deeper understanding of conditions in your environment. Other monitoring platforms may tell you what's happening... Monitor360 tells you why, helping you react and mitigate even faster.

Create Alerts:

• Alert Rules: Set individual alert rules based on specific thresholds and conditions, ensuring you receive notifications immediately when environmental conditions exceed the limits you set.

• Various Alerting Methods: Choose from various alerting methods, including email, SMS, or push notifications.

Prepare Reports:

• Comprehensive Reports: Generate detailed reports on environmental conditions to gain insight, identify patterns, and make informed decisions.

• Automatic Reports: Set report schedules, so you regularly receive updates without manual intervention.

Integration with Mobile App:

• Push Notifications: Use our free Room Alert mobile app to receive instant notifications on your mobile device.

• In-App Chat: Take advantage of the modern in-app chat feature in the Room Alert mobile app, allowing real-time communication with team members in case of triggered alerts.

Specification

Internal Temperature Sensor:

• Monitored state: Ambient room temperature
• Type: Digital
• Range: -40 to 85°C (-40 to 185 F)
• Accuracy: +/- 2°C
• Resolution: 0.03125°C
• Readings: Numerical values in Fahrenheit or Celsius

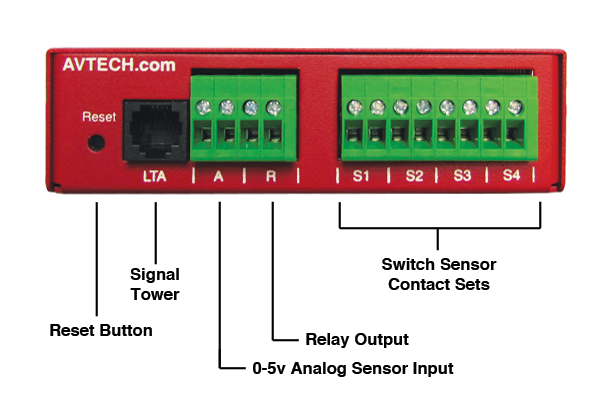

External Sensor and Accessory Ports:

• 3 digital sensor ports (RJ-11)
• 4 switch sensor ports (screw terminals)
• 1 analog sensor port (screw terminals)
• 1 relay output port (screw terminals)
• 1 tower light and relay adapter port (RJ-11)

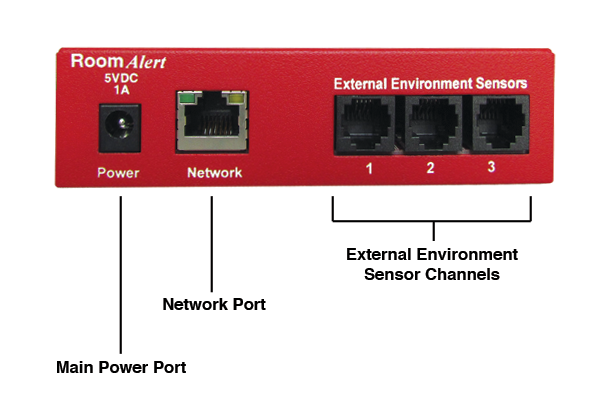

Power and Communication Ports:

• 1 5 V power socket with barrel connector
• 1 RJ-45 Ethernet port (with PoE support)

Power Supply:

• AVTECH 5V power adapter (100/240 VAC, 50/60 Hz, RoHS) or PoE (IEEE802.3af compliant)

Dimensions:

• Height: 1.75"
• Depth: 3.75"
• Width: Version 4.5" 12S (without rack mount) Version 19" 12SR (rack mounted)

Weight:

• 1.6 Ibs (with rack mounting)

Operating tolerances:

• Temperature: -40 to 85°C (-40 to 185 F)
• Humidity: 5% - 85% RH, non-condensing
