19" Rack IP Controller Room Alert 12SR with Sensor Kit - Advanced Environmental Monitoring

Room Alert 12SR is a unique IP controller from the Room Alert PRO line, providing reliable environmental control in your facility. This advanced model offers a range of secure protocols to ensure safe and effective environment monitoring.

Key Information

Benefits

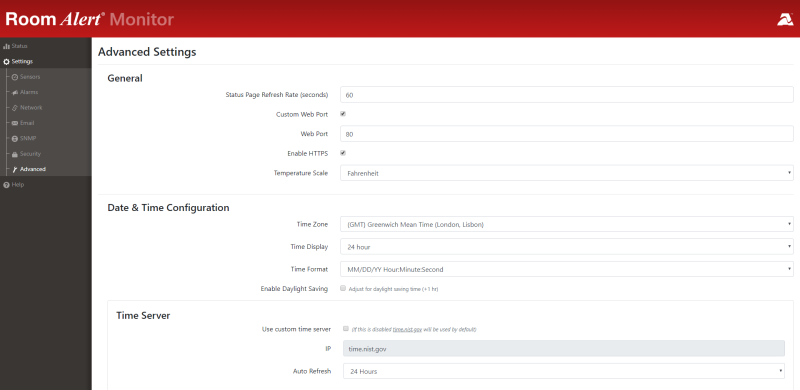

1. Secure Connections: Room Alert 12SR enables access to the built-in web interface via HTTP or HTTPS protocols, ensuring full communication security.

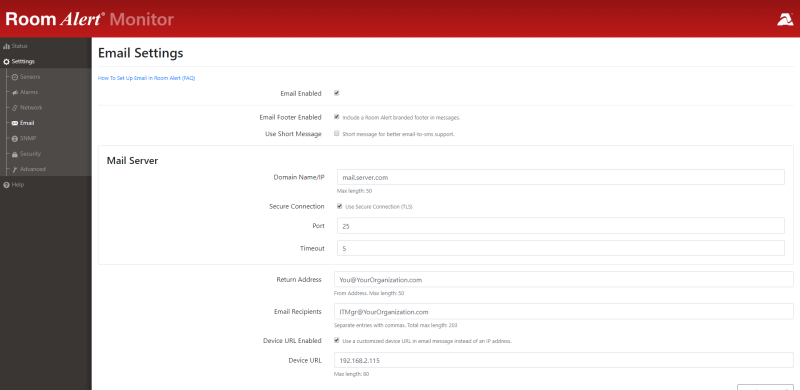

2. Data Transmission: Device data can be transmitted to RoomAlert.com account via HTTPS protocol and email notifications can be sent from the device via TLS mail server.

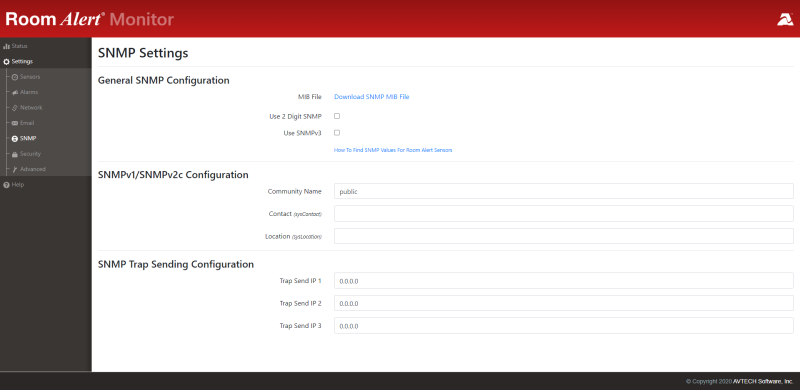

3. SNMP Integration: The device is compatible with SNMP v3, SNMP v1, and SNMP v2c, allowing for monitoring and management of the device via SNMP.

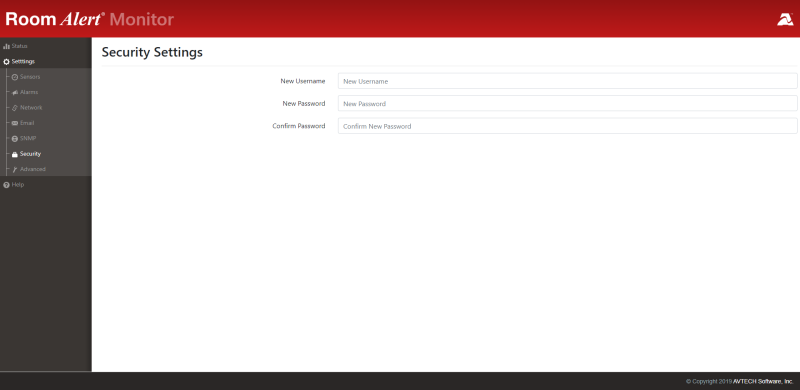

4. Software Updates: Software updates are simple and secure, requiring only user authentication and password.

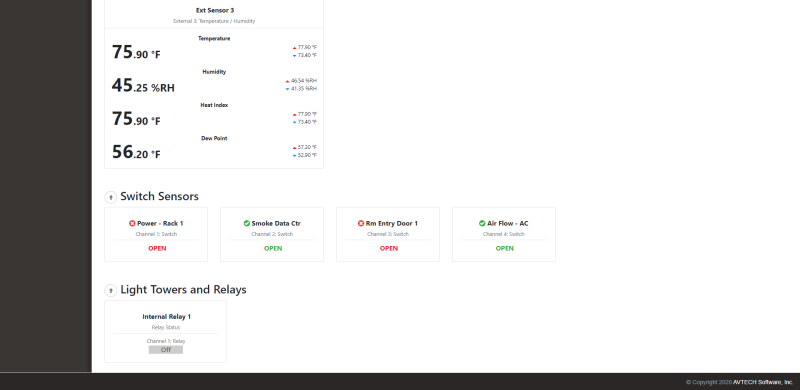

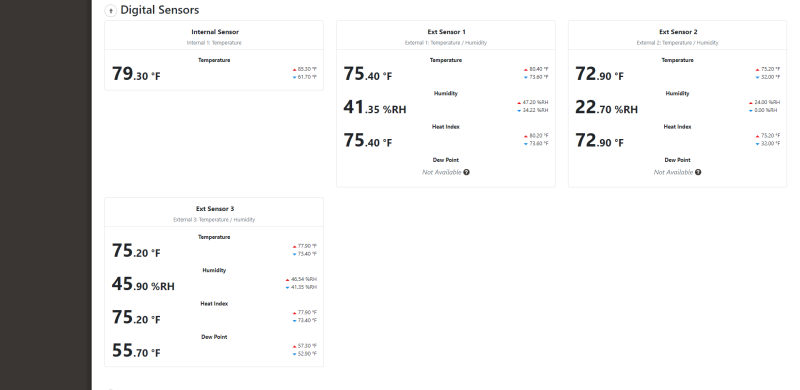

5. Versatility: Room Alert 12SR has many advanced features and can handle up to 8 additional sensors. The standard package includes 1 external digital temperature and humidity sensor (7.62 m), allowing for monitoring of temperature, humidity, heat index, and dew point.

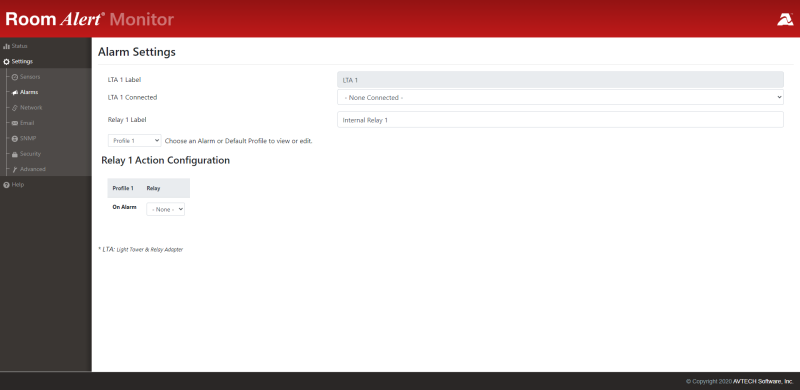

6. Device Control: Dedicated ports allow for remote control of electrical devices such as air conditioners, fans, alarm panels, and LED control panels and tower light sirens.

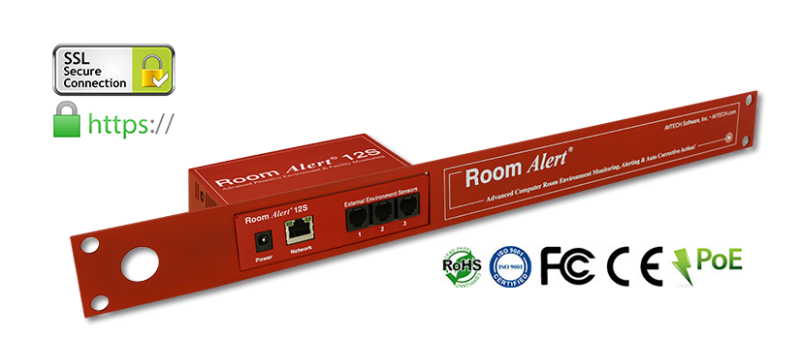

7. Flexible Mounting: The 12SR version has a removable rack mount and fits in a 1U space in a server cabinet, and the 12S version can be ceiling-mounted or wall-mounted using a dedicated bracket.

8. Software Integration: Ability to integrate with RoomAlert.com (Base version included), RoomAlert.com Manager, SNMP, or JSON from other companies, providing versatile access to environmental data.

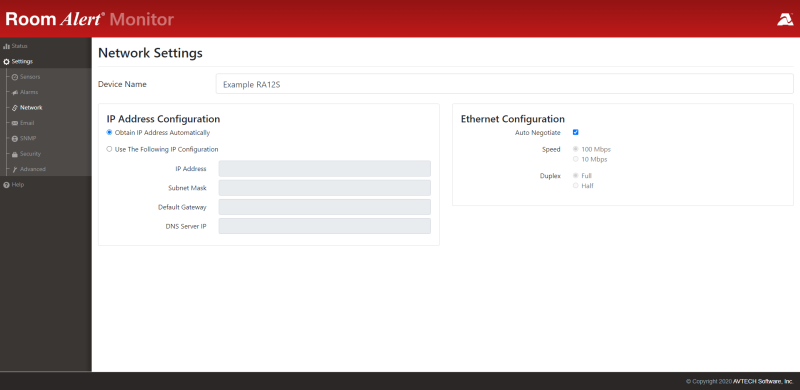

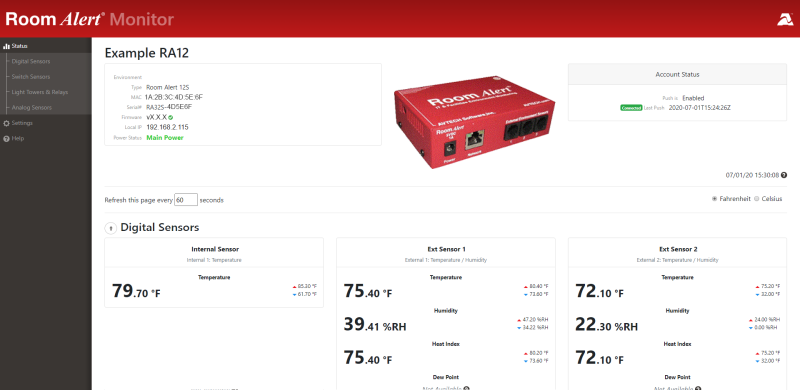

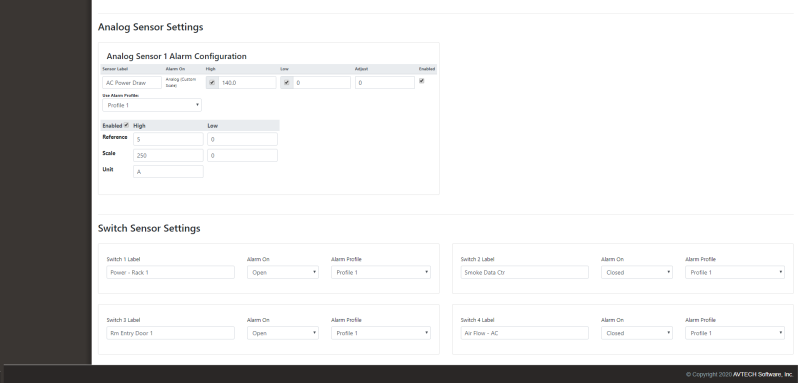

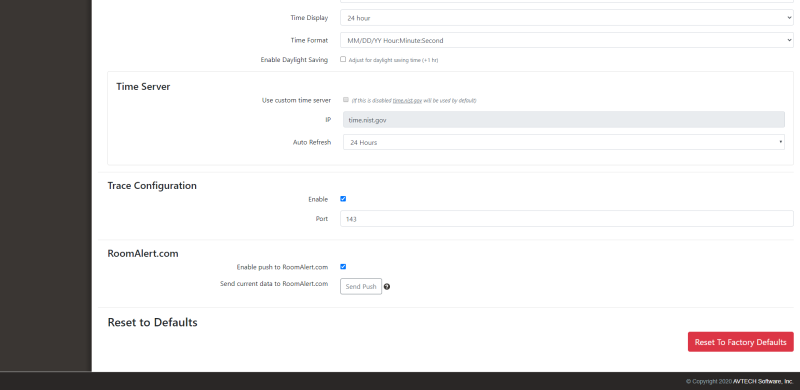

9. Easy Configuration and Operation: The device offers an intuitive web interface, making configuration and sensor readings review easy.

10. Precise Measurements: The internal temperature sensor provides accurate measurements over a wide temperature range from -40 to 85°C.

11. PoE or Power Adapter: Ability to power the device using PoE or included 5V power adapter.

12. Solid Construction: Room Alert 12SR is designed for reliability and durability, ensuring long-term operation.

Your Comprehensive Monitoring Tool: Room Alert Account

Room Alert Account is a free online dashboard prepared for every Room Alert user to provide smooth monitoring and management capabilities for Room Alert installations.

With Room Alert Account, which includes Monitor360 technology, you have full control over monitoring your environment. It allows you to create alerts, prepare reports, receive push notifications, and collaborate in real-time with your team. Here are the key features that make Room Alert Account the ideal solution for your monitoring needs:

Monitor and Manage:

• Central Dashboard: Access the central main panel from anywhere at any time, providing a comprehensive view of all Room Alert monitors and sensors for easy management and supervision of the entire monitoring system.

• Real-Time Data: Receive real-time updates on environmental conditions such as temperature, humidity, or power status, allowing for quick actions and avoidance of critical situations.

• Monitor360: Utilize our patented technology to create virtual sensors and alerts, gaining deeper insights into your environment. While other monitoring platforms may tell you what's happening... Monitor360 tells you why, helping you react and mitigate situations even faster.

Create Alerts:

• Alert Rules: Set individual alert rules based on specific thresholds and conditions, enabling you to receive immediate notifications when environmental conditions exceed the limits you set.

• Various Alerting Methods: Choose from various alerting methods, including email, SMS, or push notifications.

Generate Reports:

• Comprehensive Reports: Generate detailed reports on environmental conditions to gain insights, identify patterns, and make informed decisions.

• Automated Reports: Set report schedules to receive regular updates without manual intervention.

Mobile App Integration:

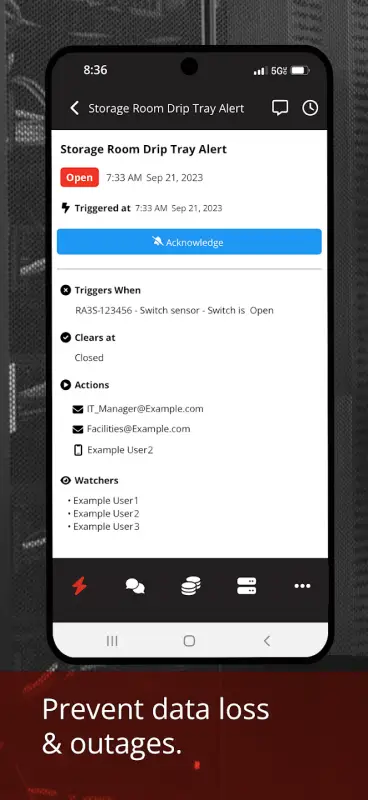

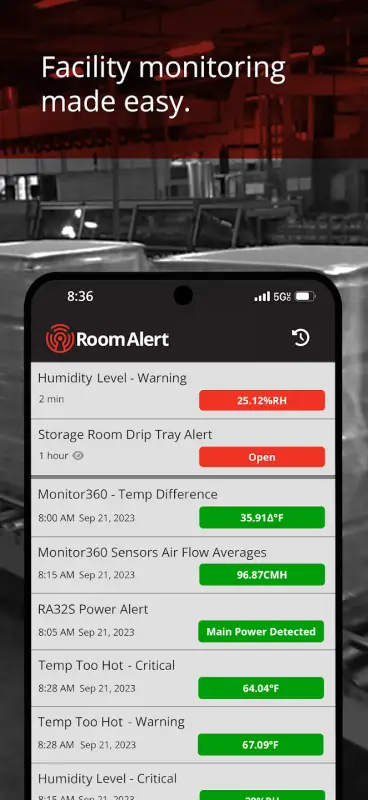

• Push Notifications: Use our free Room Alert mobile app to receive instant notifications on your mobile device.

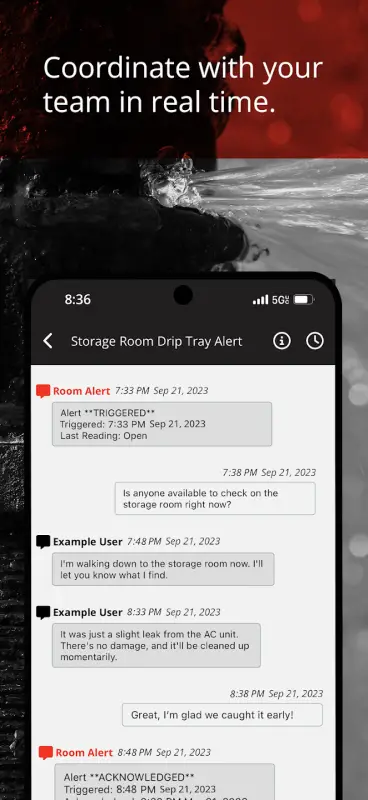

• In-App Chat: Utilize the app's modern chat feature for real-time communication with team members in the event of triggered alerts.

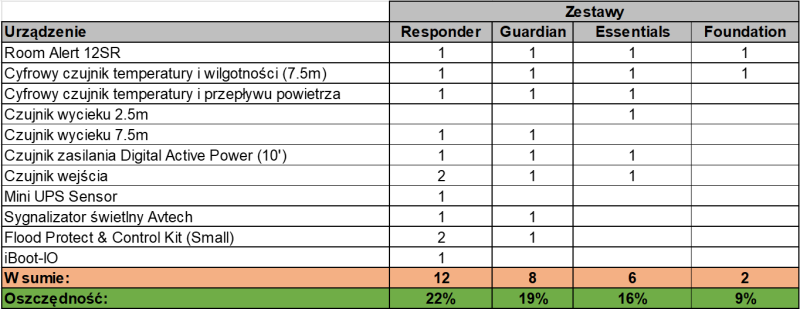

Available Packages

Video Presentation

Specifications

Internal Temperature Sensor:

• Monitored condition: ambient room temperature
• Type: digital
• Range: -40 to 185 F (-40 to 85°C)
• Accuracy: +/- 2°C
• Resolution: 0.03125°C
• Readings: numerical values in Fahrenheit or Celsius

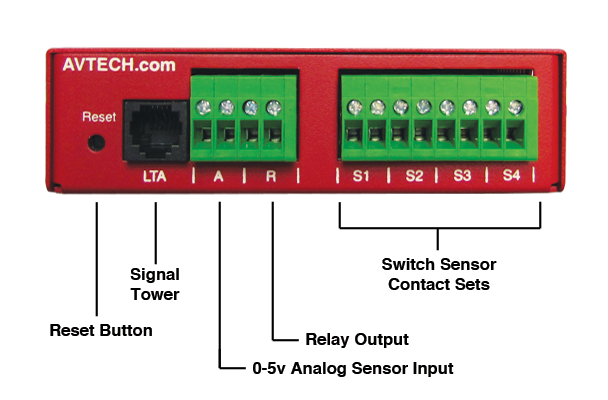

External Sensor and Accessory Ports:

• 3 digital sensor ports (RJ-11)
• 4 switch sensor ports (screw terminals)
• 1 analog sensor port (screw terminals)
• 1 relay output port (screw terminals)
• 1 light tower and relay adapter port (RJ-11)

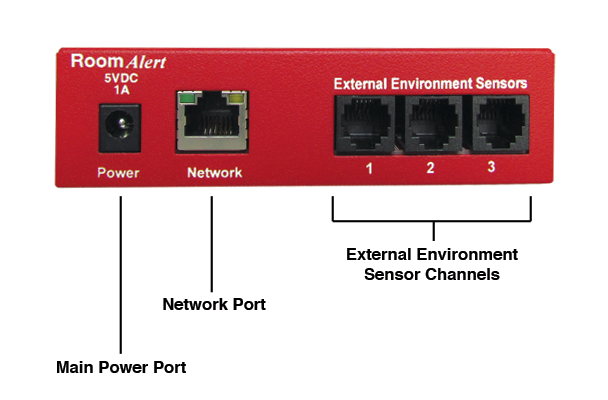

Power and Communication Ports:

• 1 5V power jack with barrel
• 1 Ethernet RJ-45 port (with PoE support)

Power Supply:

• AVTECH 5V power adapter (100/240 VAC, 50/60 Hz, RoHS) or PoE (IEEE802.3af compatible)

Dimensions:

• Height: 1.75"
• Depth: 3.75"
• Width Version: 4.5" 12S (without rack mount) Version 19" 12SR (rack mountable)

Weight:

• 1.6 Ibs (with rack mount)

Operating Conditions:

• Temperature: -40 to 185 F (-40 to 85°C)
• Humidity: 5% - 85% RH, non-condensing
