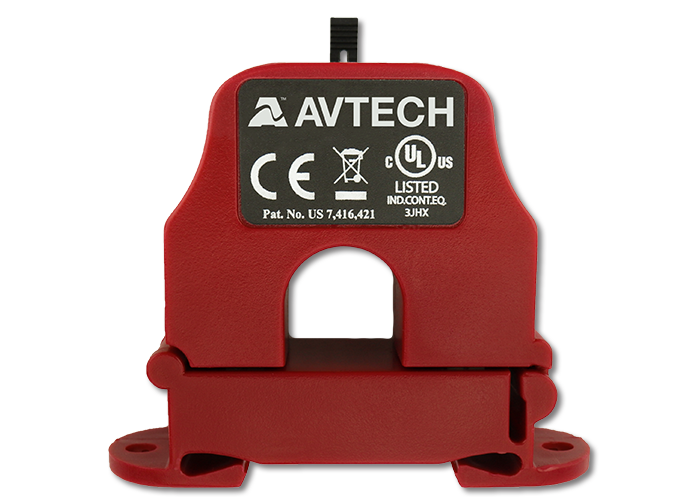

AVTECH Current Clamp Sensor 2 (250A)
The AVTECH Current Clamp Sensor 2 (250A) is an advanced tool for monitoring the flow of electrical current through a single-phase cable. With an output signal ranging from 0 to 5 VDC and compatibility with the Room Alert monitor, users can easily and accurately determine the energy consumption of various devices in their facilities.
Key Benefits:
- Flexibility in Use: Allows for the sensor to be moved between different devices for accurate monitoring.
- Energy Optimization: Identifies devices consuming excessive amounts of electricity.
- Quick Problem Detection: Identifies power drops or excessive energy consumption in real-time.
- Cost Savings: Helps control rising electricity costs, making it a valuable tool for IT managers.
- Precision Measurements: Provides readings with an accuracy of +/- 1.0% in the range of 5 to 100% FSO.

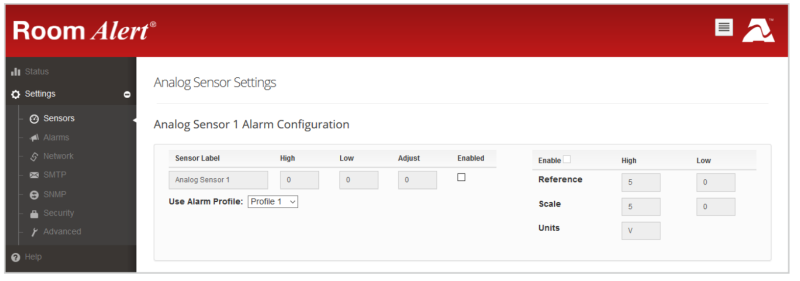

- Versatility: Compatible with built-in and external analog sensor ports of Room Alert.
Technical Specifications:
- Monitored Conditions: Electrical current (amperes)
- Sensor Type: Switch
- Power Supply: Induction from the monitored conductor

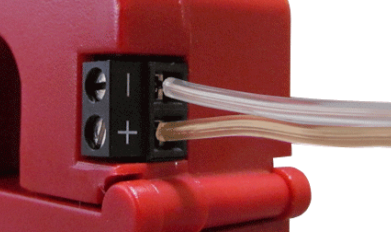

- Attached Cable Type: Low-voltage 2-wire speaker cable
- Cable Length: 7.62 m
- Max Cable Length: 30.48 m
- Output Voltage: 0-5 VDC
- Input Current Range: 0-250 A
- Response Time: < 100 ms
- Frequency Range: 50-600 Hz
- Max Measurement Voltage: 600 VAC
- Hole Size: 0.75" or 1.91 cm
- Operating Temperature Range: -15 to 40°C (5 to 104°F)
- Operating Humidity: 0-95% RH, non-condensing
- Enclosure Rating: UL94-5VB
By investing in AVTECH's sensor, you ensure yourself a precise tool for managing energy consumption, leading to greater savings and operational efficiency in your facility.
