I/O module QuidoDuplex Ethernet 4/4

QuidoDuplex ETH is a set of two I/O modules for Ethernet (LAN, computer network) with a special firmware designed specificaly to transmit digital I/Os over Ethernet as an autonomous system - no PCs or PLCs needed. If one input is turned on, the corresponding output on the other unit is also turned on. Bi-directional.

I/O module features

• Digital two state signals are transmitted from one to the other and also the other way via Ethernet (or Internet).
• Uses Local Area Network (LAN) or Internet to transmit data, no need to place new cabling and the distance is virtually unlimited.
• Wide power voltage range: 8(12) to 30 V DC.

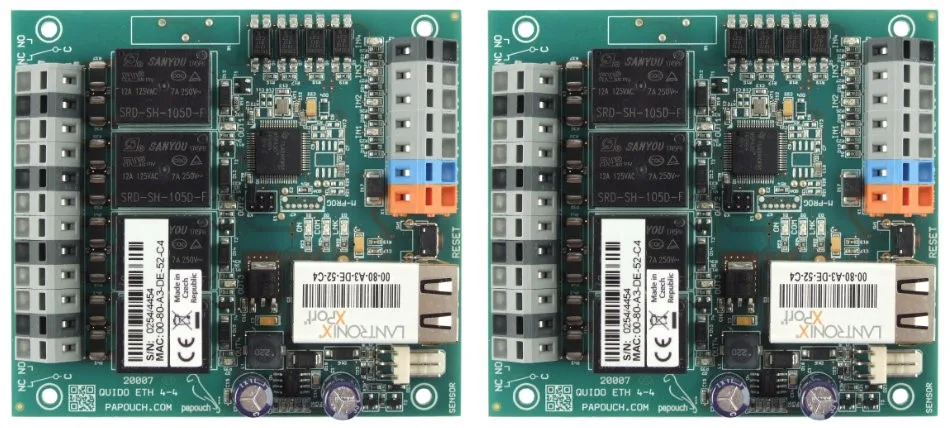

• Set consists of two I/O modules Quido ETH 4/4 (or 8/8) with special firmware.
• (power supply units not included, sold separately)

Usage of I/O module QuidoDuplex

• Transmission of control states over greater distances (status indication).
• Easy remote controll - bi-directional transmission can be used for control and monitoring.
• Transmitting digital I/Os over Internet
