Universal software for the majority of our standard devices. It enables central monitoring and storing of data from our thermometers, hygrometers, A/D converters, I/O modules etc. It is also able to communicate using the MODBUS protocol. Free version of Wix can be downloaded here.

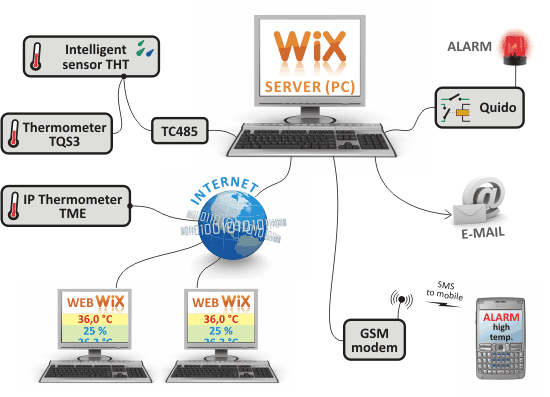

The Wix software is able to measure and control a wide range of devices – thermometers, hygrometers, anemometers, inputs and outputs of I/O Quido modules or general devices using the MODBUS RTU protocol. Depending on the measured variable and its current value, the software is able to carry out various subsequent actions - to notify the user by displaying a warning message, to switch an output in a different I/O Quido module, to send an email or an SMS directly to a mobile phone. Newly, the software is also able to display values from Wix on a different PC using an internal webserver.

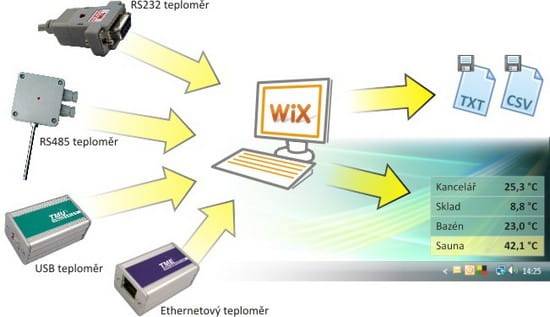

Wix is able to communicate with various devices via RS232, RS485, USB as well as the Ethernet (Internet).

Basic functions of WiFi

• Display of the latest measured values from connected devices.Display of numerical values.
• Display of coloured bars (a so called bar chart) whose colours depend on the current value.
• Display of texts depending on the current value.

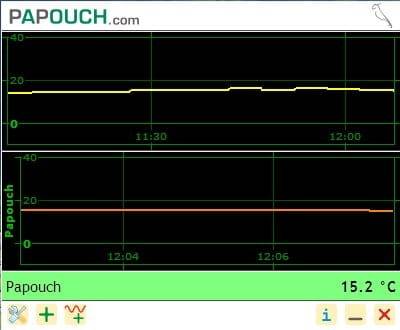

• Display of charts.
• Measurement history storing in the form of a text file for further processing or evaluation.
• Pre-set actions to be taken.
• Timer function – e.g. switch the relay at 16:30 etc.
• Sending an email.
• Switching an output (relay) in Quido.
• Counter reset at Quido input.
• Sending an SMS(via a connected modem Siemens TC65i).

What is the difference between the paid and free version?

The free version is subject to the following limitations:

• The maximum of 10 panels or 5 devices.

List of devices Wix works with

• PAPAGO modules: I/O modules with Ethernet, WiFi or GSM.
• TM: thermometer connected via RS232
• TMU: thermometer connected via USB
• TME: thermometer connected via Ethernet (IP Thermometer)
• TME PoE: thermometer connected via the Ethernet with PoE power supply
• TME multi: universal interface for connecting up to 32 thermometers and hygrometers via the Ethernet (Internet)
• TQS3: family of thermometers connected via RS485
• THT2: thermometer + hygrometer + dew point calculation connected via RS485
• TH2E: thermometer + hygrometer + dew point calculation connected via the Ethernet (Internet)
• AD4: family of measuring modules for a unified current or voltage signal; connected via RS232, RS485, USB or Ethernet (Internet)
• DRAK4: laboratory device measuring current or voltage
• Quido: family of thirty I/O modules with universal inputs and outputs (relay); connected via RS232, RS485, USB or Ethernet (Internet)
• TX20ETH: anemometer (measures wind speed and direction) connected via the Ethernet (Internet)
• TX20RS: anemometer (measures wind speed and direction) connected via RS232 and/or RS485
• DT4120: converter for Pt100 resistance thermometer with display
• MODBUS RTU: devices that are able to communicate via the universal MODBUS RTU protocol
• TM service: a universal service of the Windows system for thermometer data measuring and storing.
• TC65i: GSM modem used by Wix to send SMSs.
• TDS: LED display to view data measured by Wix.

System requirements

• Operating system: Windows 2000, XP, Vista nebo 7.
• RAM: approx. 40 MB
• Disc space: <5 MB
