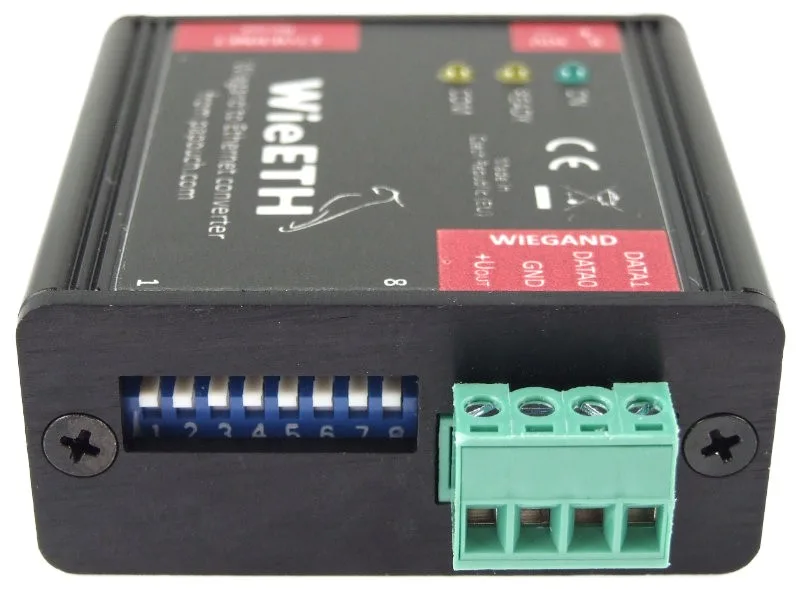

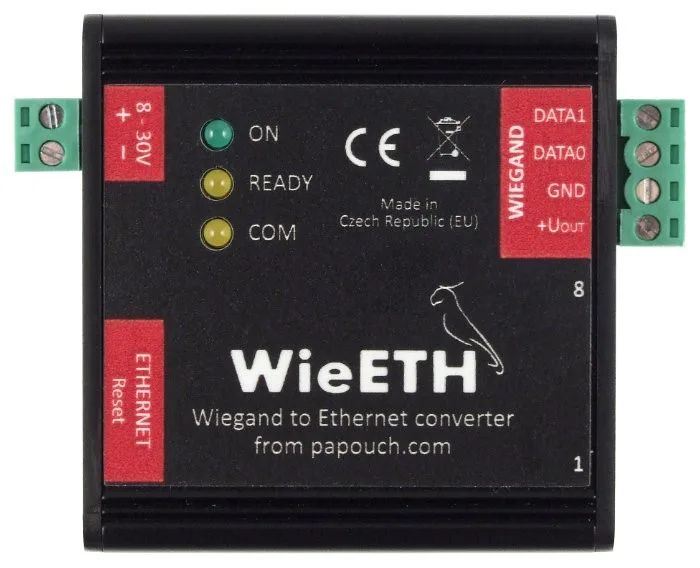

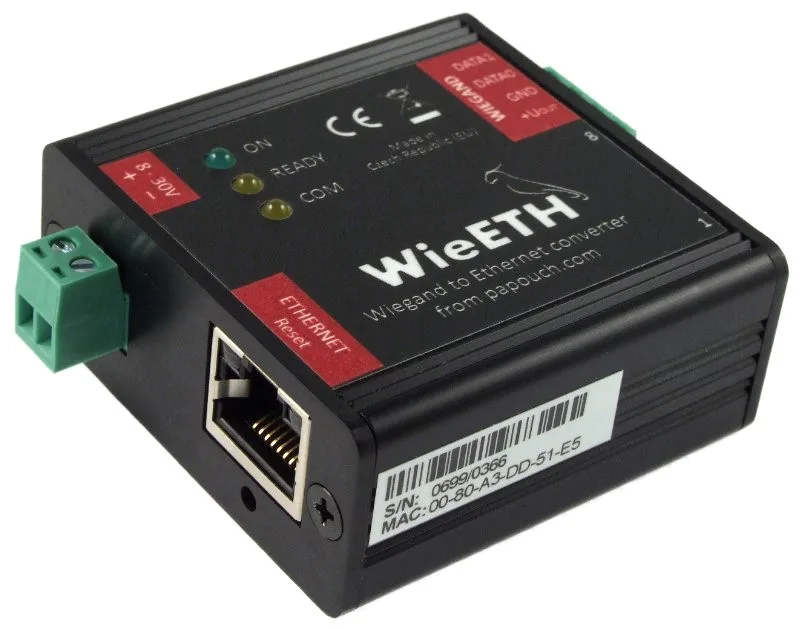

WieETH: Bidirectional converter Ethernet – Wiegand
Regular price:
Regular price:
・Kup teraz i zapłać za 30 dni
product unavailable
Wiegand is a standard protocol used by readers of contactless cards. WieETH allows for (1) conversion of Wiegand to Ethernet and (2) transmit Wiegand to a remote location over the Ethernet. WieETH can work with Wiegand protocols of any type with a length of 1 to 64 bits.
Examples of use
- Contactless readers
- Electronic access systems
- Security systems
- Legacy access systems updates
Operation
Converting Wiegand to Ethernet: The converter sends card numbers of from a reader using Spinel protocol. Data is sent through an established TCP connection to a controlling system. (Based on the configuration DIP switches it can also read the card number as a raw data in ASCII.) The controlling system reads the last card number using Spinel instructions.
Converting Ethernet to Wiegand: Any packet can be generated to the Wiegand interface using a Spinel instruction.
Transferring Wiegand over Ethernet: Two WieETH converters connected to Ethernet can work in a pair sending a Wiegand packet over the Ethernet as if there was a regular Wegand connection. First WieETH that reads cards is set to Wiegand – Ethernet mode (TCP client mode) and the second converter to Ethernet -
Wiegand mode (TCP server mode).
