Waterproof RFID reader with display in hermetic IP65 housing

Waterproof RFID reader with display in hermetic IP65 housing

Technical data

Supported transponders

• Unique EM4100, EM4102, 125kHz
• Mifare Classic® (ISO/IEC 14443-A), Mifare Plus® (UID), Mifare DESFire® (UID), 13,56MHz
• HID iClass® (only CSN), 13,56MHz
• HID 125kHz
• ICODE® (ISO 15693), 13,56MHz
• HITAG (HITAG 2), 125kHz

Communication

• LAN – RJ45 baud: up to 10Mbps
  • Modbus TCP
  • HTTP Client/server
  • SNMP
  • Embedded web server
• RS485
  • Modbus RTU

Power supply

• DC: 10 V - 24V and optional
• Passive PoE
• or PoE IEEE 802.3af
• Power consumption : max 2.5W

Memory

• Memory of the ID numbers: 1 000
• Memory of the events: 30 000
• Defining access hours for 4 groups of ID numbers
• Assign names to ID numbers

Inputs & outputs

• Number of the inputs: 2
  • Type of the inputs: NO

• Number of the outputs: 2
  • Type of the outputs : relay NO
  • Maximum load: 1A @ 30VDC

Aditional

• Alphanumeric LCD 4x20 signs
• Embedded RCT clock
• Lock function
• Event logging
• Possibility to personalize the front elevation

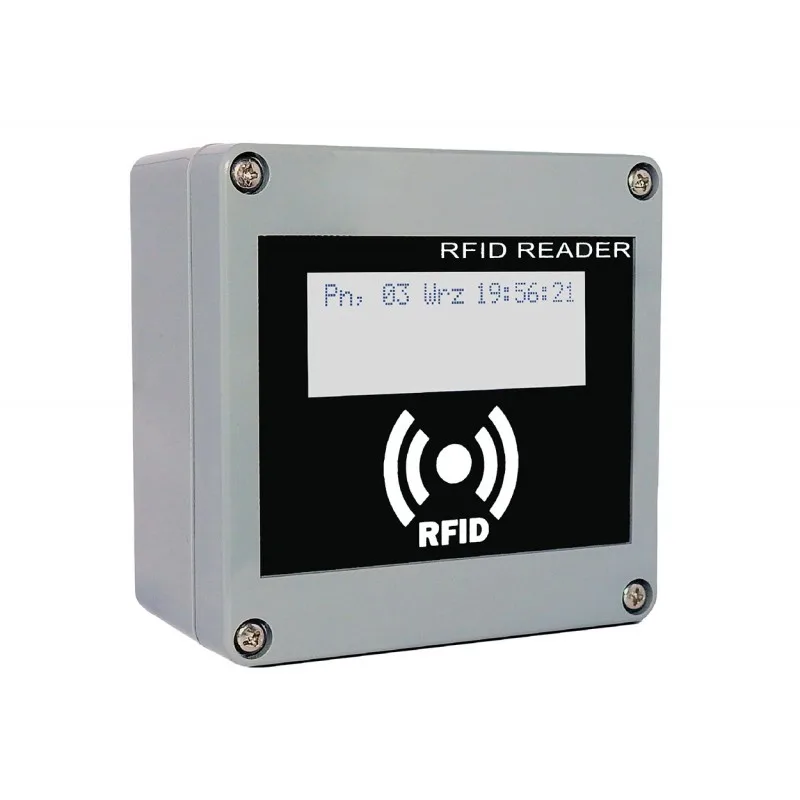

The RFID reader has a 4×20 characters LCD Display, LAN communication and RS485, two relay outputs and two digital inputs, a two-tone buzzer, RTC clock with SNTP synchronization with battery, memory for 1 000 users and 30 000 logs. Individual standards are supported depending on the device version.

A version of RFID reader without display is also available: RFID IND LED.

General features of the RFID reader with display

Advanced software gives the ability to communicate via:

• Modbus RTU,
• Modbus TCP,
• HTTP Client/Server,
• ICMP,
• SNMP,
• embedded web server.

Additional information

The reader can store 1000 transponders (optional 4000) and 30,000 logs in the device’s memory. Using the protocols, the user has several ways to download and read saved logs. Additionally, by assigning a tag to a appropriate person, the administrator can authorize the tag even depending on the time of day. The device has two digital inputs and two relay outputs, which allows to restrict access to the room or machine.

The reader housing has no cable glands.

Technical data

Power supply

• DC: 10 V – 24V and optional
• Passive PoE or
• PoE IEEE 802.3af,
• Power consumption: max 2.5W ( ~200mA@12V).

Transponder and memory

• Tag reading distance: up to 8cm from the front of the device (LCD display side),
• Memory of the ID numbers: 1 000,
• Memory of the events: 30 000,
• Defining access hours for 4 groups of ID numbers,
• Assign names to ID numbers.

Input

• Number of the inputs: 2,
• Type of the inputs: dry contact NO.

Output

• Number of the outputs: 2,
• Type of the outputs: relay NO,
• Maximum load: 1A @ 30VDC.

Device configuration

At the first start-up, it is necessary to configure the device. The easiest way to configure Inveo devices is to use a Discoverer application. The program is available here. After installing and launching the application, all Inveo devices connected to the network will appear in the table. If the device has not been found, select another Interface or check the connection to the router.



Change settings

Inveo Discoverer



If the devices have the Enable Remote Config service disabled, it is necessary to change the settings manually by changing the computer’s IP address. The precise device configuration instruction can be found in the manual.
