Server Room Thermohygrometer - Papago 2TH ETH Kit with management SaaS software 12 months

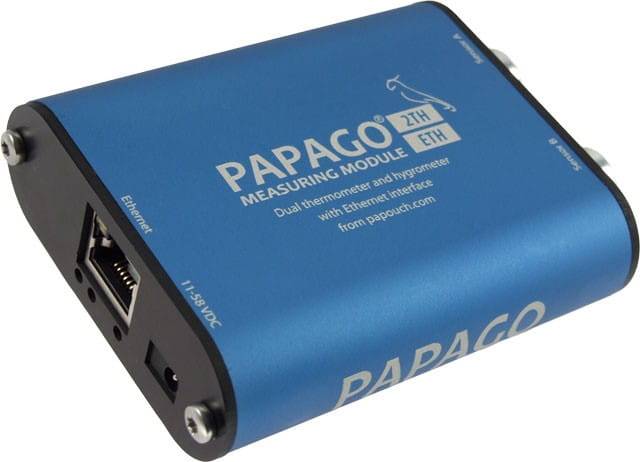

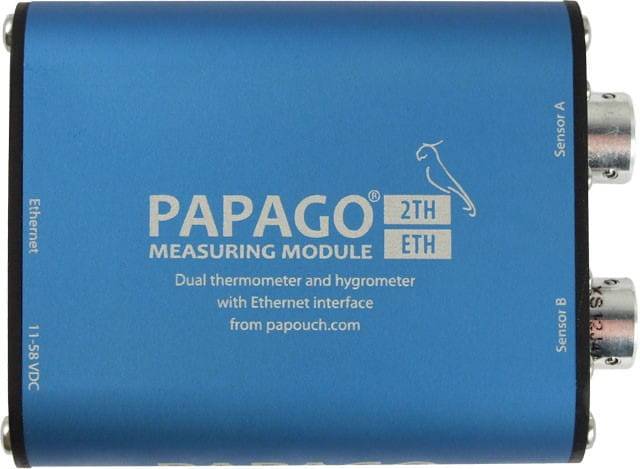

The Papago 2TH ETH with two channels, Ethernet interface, and PoE power supply measures temperature and humidity in server rooms, data centers, or other technical spaces. The Papago 2TH ETH is a device designed for monitoring environmental conditions with an Ethernet interface and PoE power supply, allowing measurement of temperature, humidity, and dew point. It's an ideal solution for monitoring critical parameters in various locations, offering a wide temperature measurement range from -55°C to +125°C.
Key Information
Interface
Ethernet
Power Supply
PoE IEEE 802.3af or power adapter
Protocols
MQTT, Modbus TCP, SNMP, HTTP GET, XML
Included Sensor
Temperature and humidity 3m
Software
CE MonitorApp, Embedded WWW, WIX
Sample Application
Server Room, Archive
Papago 2TH ETH Features

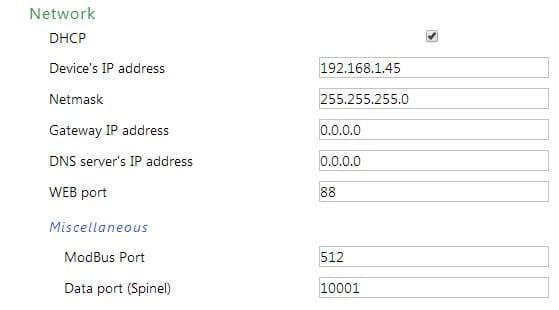

- Ethernet Interface and Web Interface: Equipped with Ethernet interface and internal website available in Czech and English, facilitating access to measurement data.
- Management Software Included: Easy monitoring and alarm sending with software for data collection, history, and email, SMS, and push alarm sending.
- PoE or External Power Supply: Ability to be powered by PoE eliminates the need for an external power source, convenient and space-saving.
- Internal Memory and RTC Clock: With built-in memory and real-time clock, measurement data with measurement time is automatically stored in memory in case of connection loss and sent upon restoration.

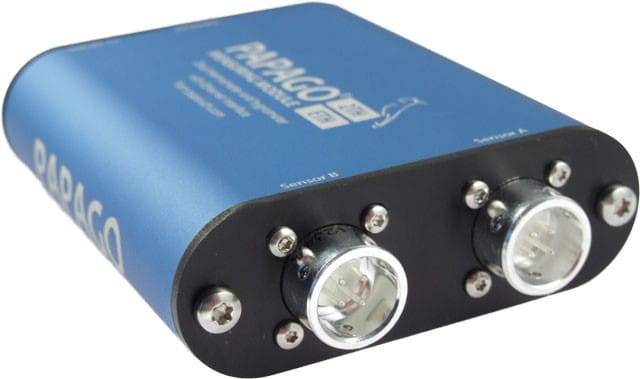

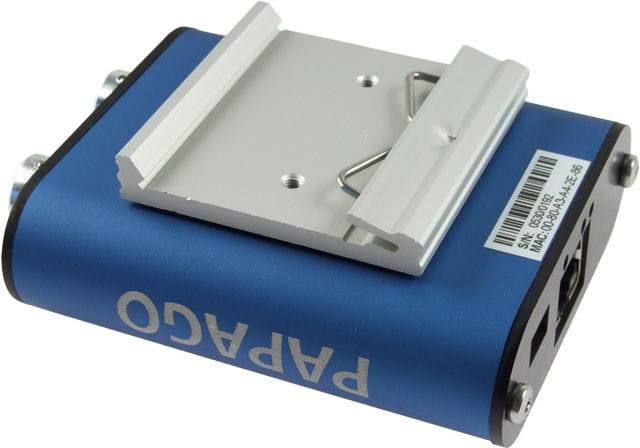

- Durable Housing: Despite its elegant appearance, the device has a sturdy metal housing that can be mounted on a DIN rail. It has descriptions facilitating connection without the need to consult the manual, and LED indicators signal important device states.
- Data Analysis in Wix: There is an option to display, store, and analyze data in the Wix platform, available at no extra charge for a smaller number of measurement parameters.

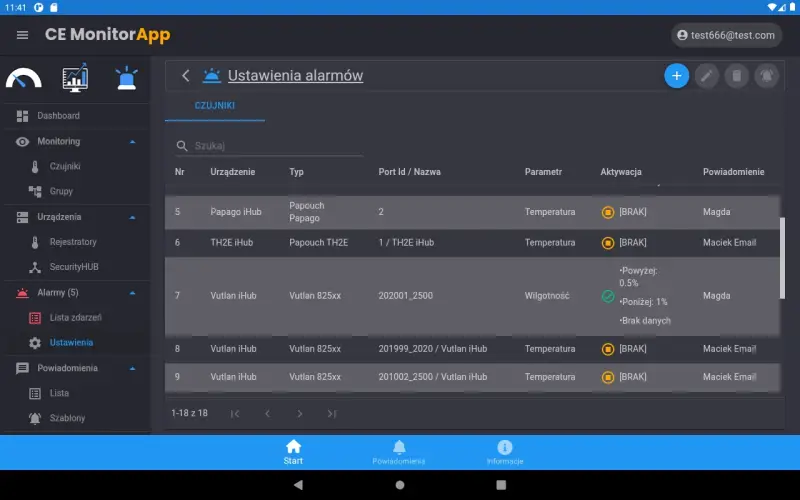

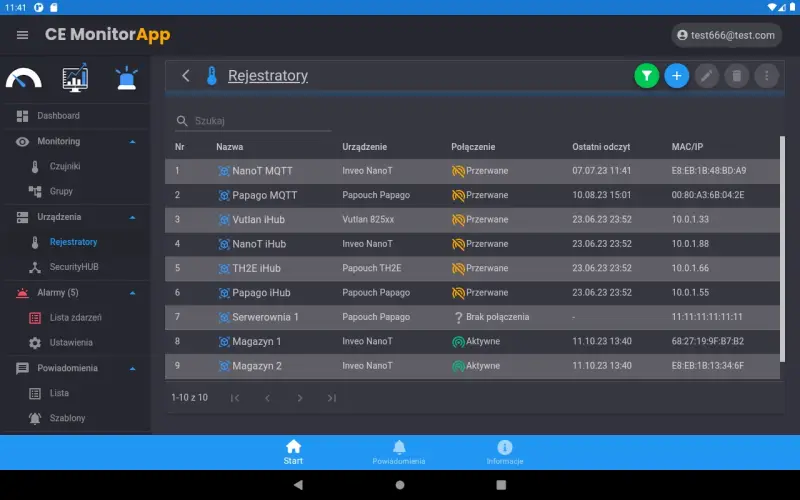

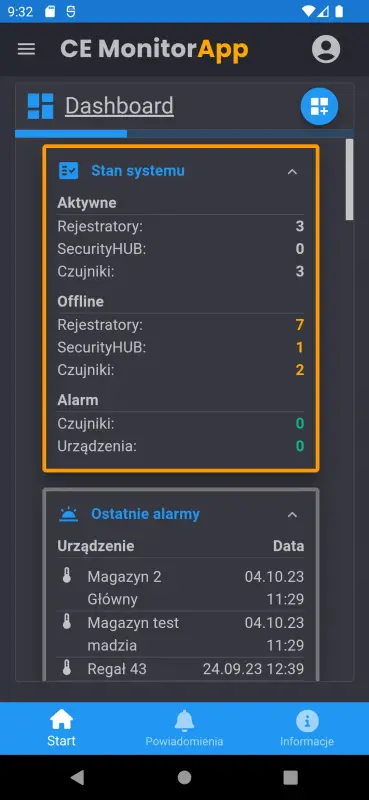

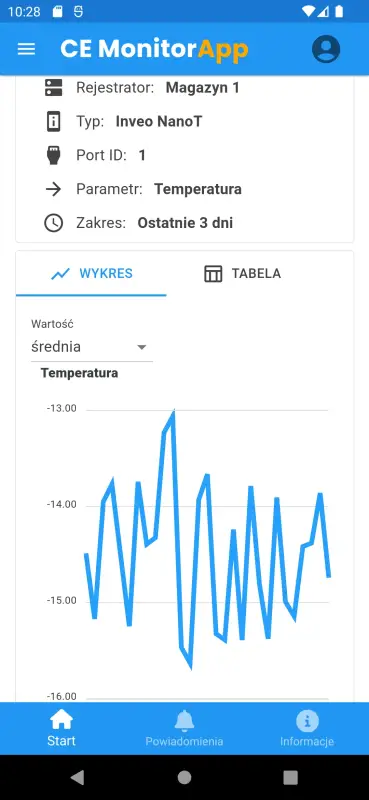

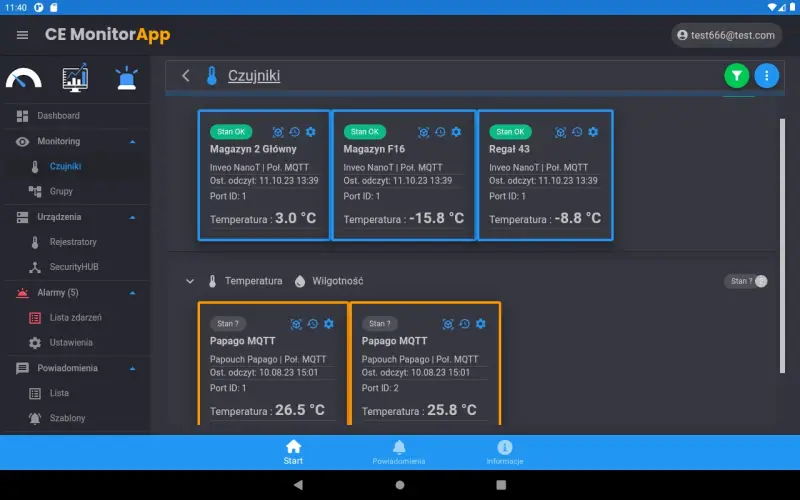

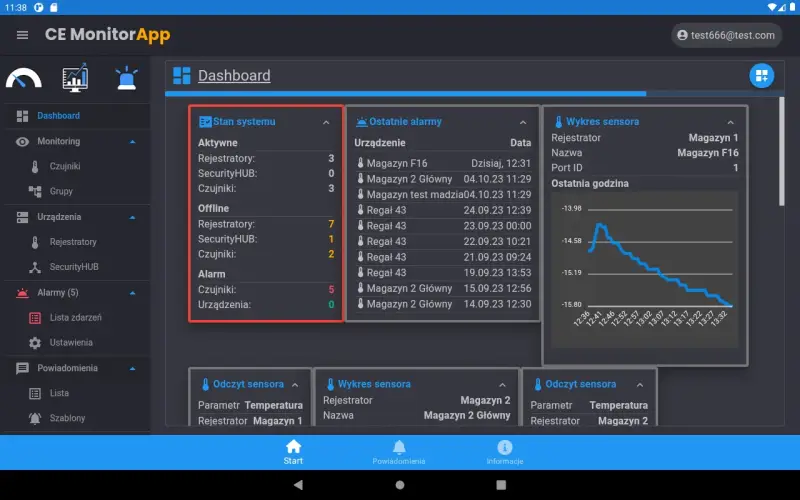

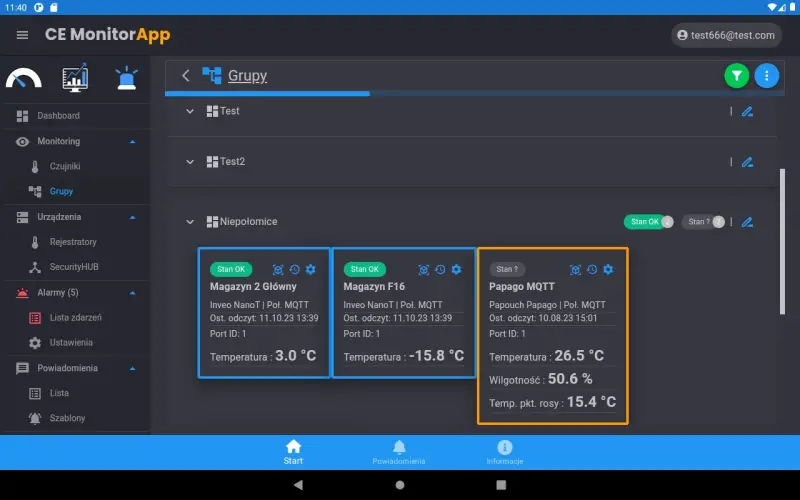

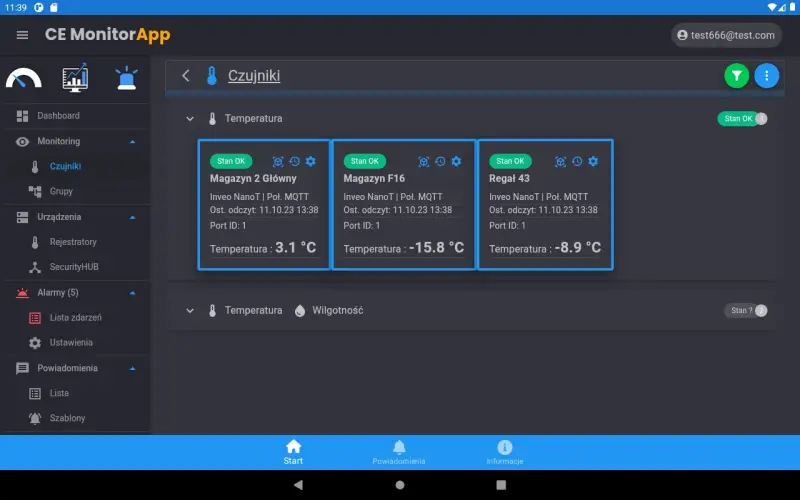

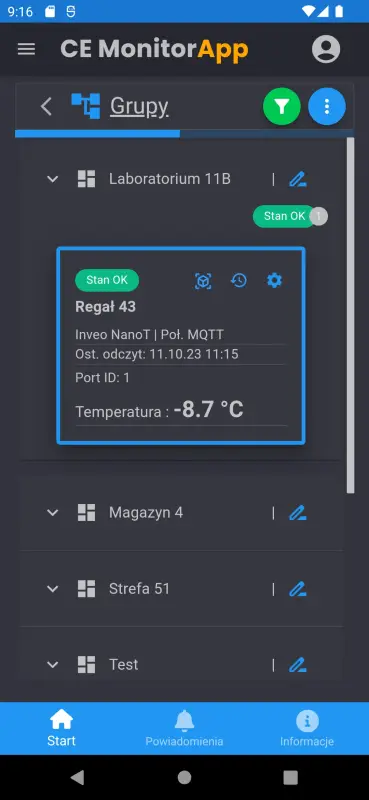

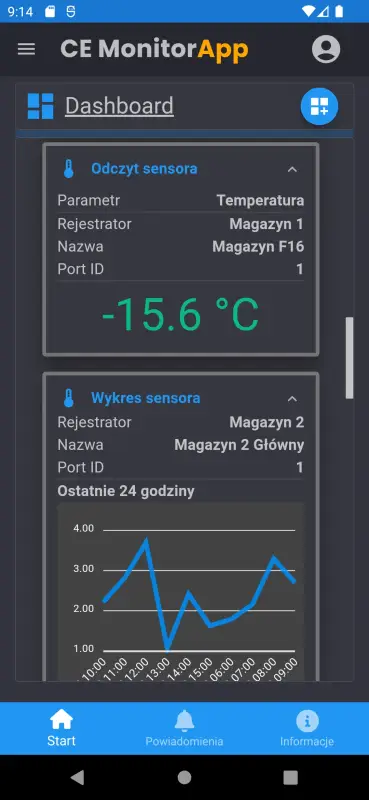

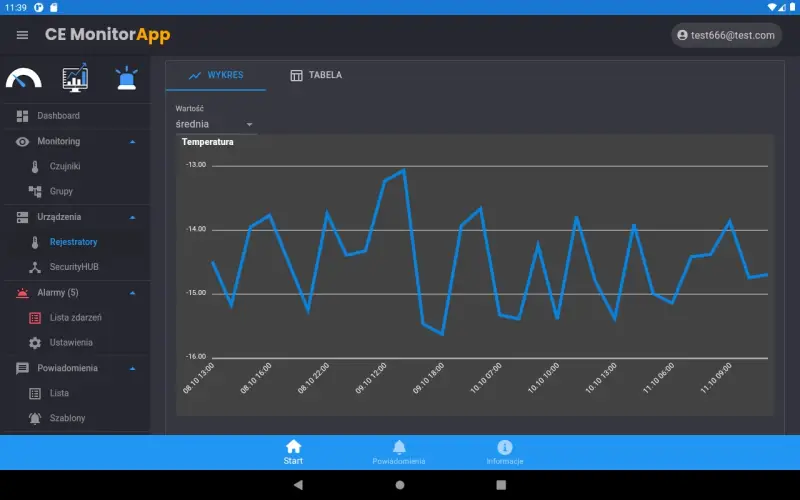

CE MonitorApp Management Software - Easy Environmental Monitoring with Multiple Notification Options
CE MonitorApp is advanced software enabling efficient monitoring of climatic conditions in various environments such as server rooms, warehouses, production lines, or industrial spaces. This system has been created to provide users with full control over environmental conditions in the workplace without the need to invest in costly equipment and complicated configuration.
Register and test for free for 30 days
Benefits
1. Cost Savings:
- CE MonitorApp reduces the need to invest in expensive LTE modems, UPSs, or allocate space for servers.
- Minimization of expenses on IT infrastructure and maintenance.
2. Customization:
- The ability to customize and expand the application according to individual customer requirements.
- Flexibility in integration with various systems and devices without limits for individual manufacturers.
3. Intuitive and Simple Operation:
- Easy configuration and intuitive user interface.
- Quick access to data and analysis through the built-in web interface.

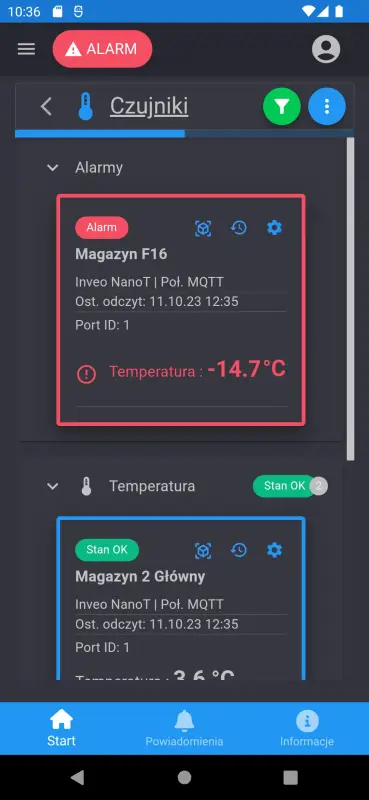

4. Advanced Notifications:
- Receiving SMS and email notifications about changes in environmental conditions.
- Ability to set alerts based on individual parameters.
- Exporting data to xlsx or csv files
5. Security and Data Protection:
- Optional SecurityHUB module providing additional data encryption.
- Confidence that confidential information is securely stored and transmitted.
6. Comprehensive Technical Support:
- Professional technical support available via phone, email, or chat.
- Quick troubleshooting and configuration support.
Special Features of Papago 2TH ETH
- Measurement of two external sensors (sensors not included). Ability to connect both a temperature sensor and a combined sensor for measuring temperature, humidity, and dew point.
- Combined sensor: temperature (-40 to +125°C), humidity (0 to 100%), and dew point.
- Temperature sensor: temperature (-55 to +125°C).
- Choice of measurement frequency: 1, 2, or 5 measurements per second, according to preferences.
- Compliance with IEEE 802.3af PoE standard.
- Ability to power externally in the range of 11-58 V DC.
- Typical power consumption is 1.8 W.

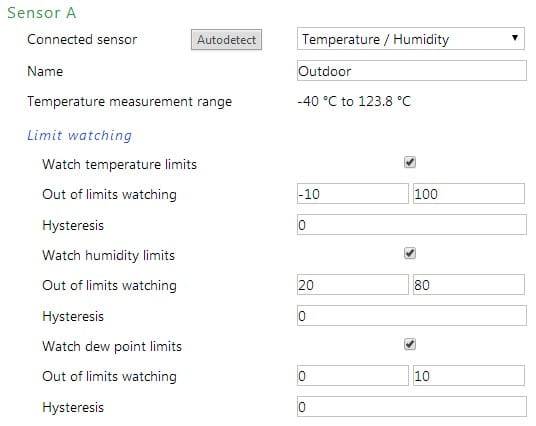

- Email notifications in case of exceeding set limits (configurable port, SSL-less email).
- Included: Papago 2TH ETH, 1 m patch cable (external power source not included, 15V/0.8A power source can be used).

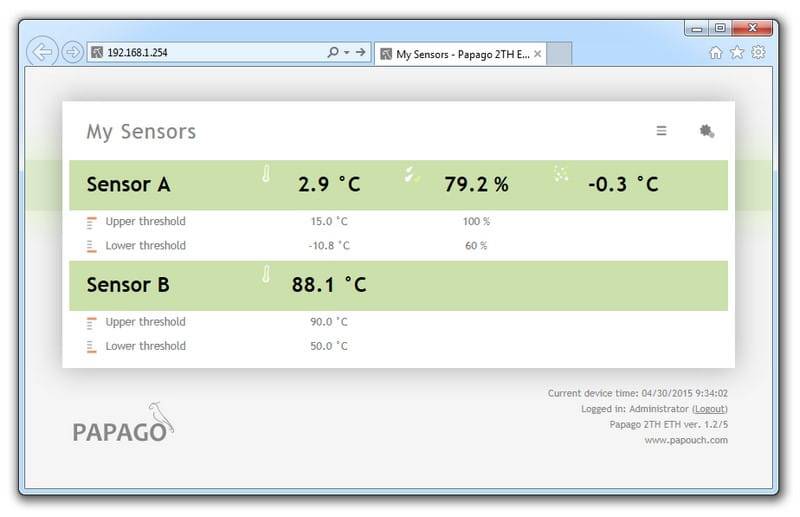

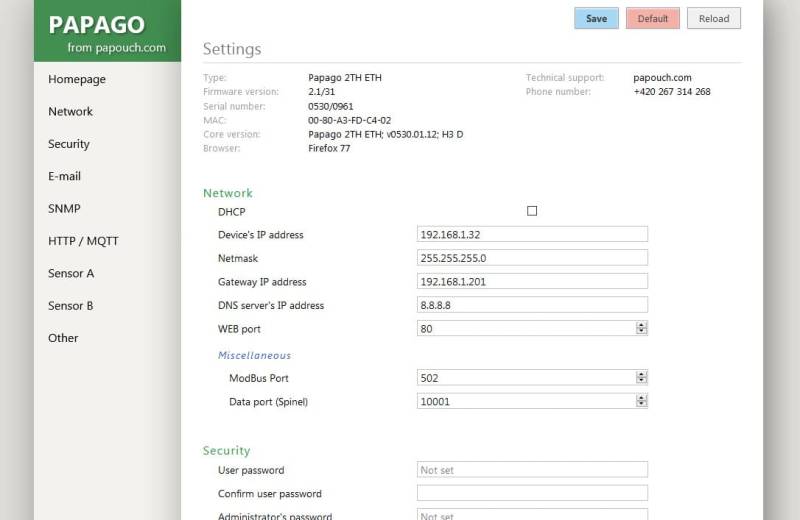

- WWW Interface of the Thermometer available in Czech or English.

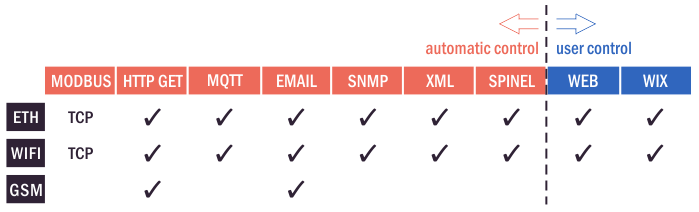

Communication Capabilities of Papago 2TH
All products from the Papago family, including the Papago 2TH ETH shrink thermometer, offer a wide range of communication options. Thanks to machine-readable protocols, thermometers can be easily integrated with existing systems. Of course, there is also the option of remote control of Papago via the web interface or using Windows software.
- MODBUS TCP - standard industrial protocol.

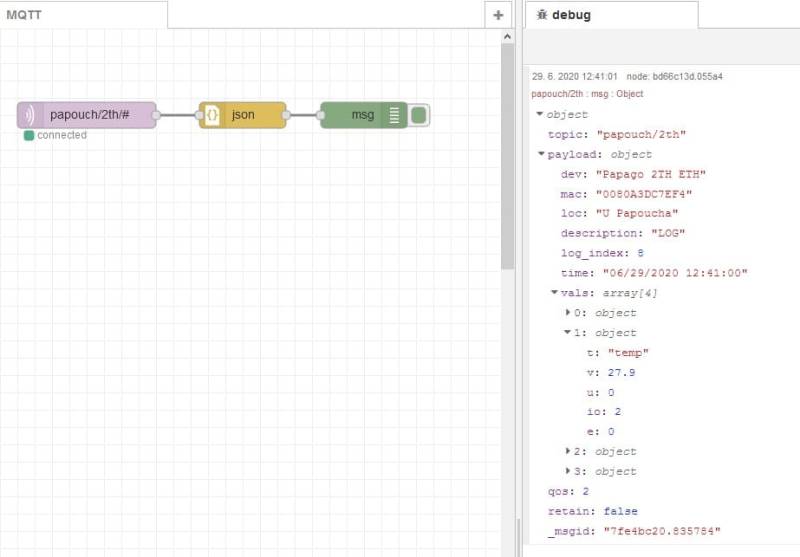

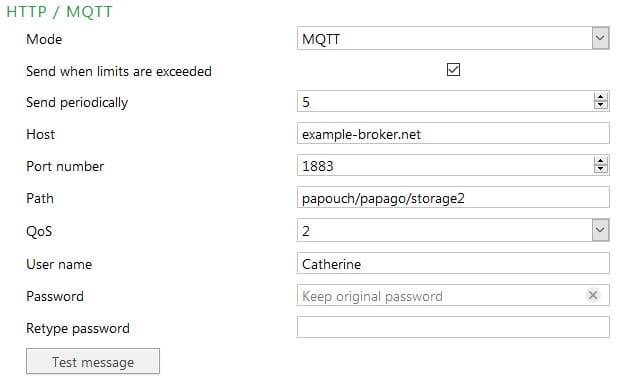

- MQTT Protocol with data in JSON format.
- SNMP (including TRAP messages for specific events).

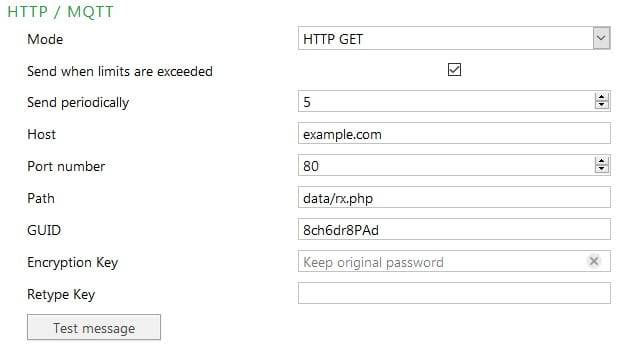

- HTTP GET with open or encrypted data (128-bit AES).
- E-MAIL for specific events (SSL-less email).
- XML with current measurement data.
- Spinel (binary protocol developed by Papouch).

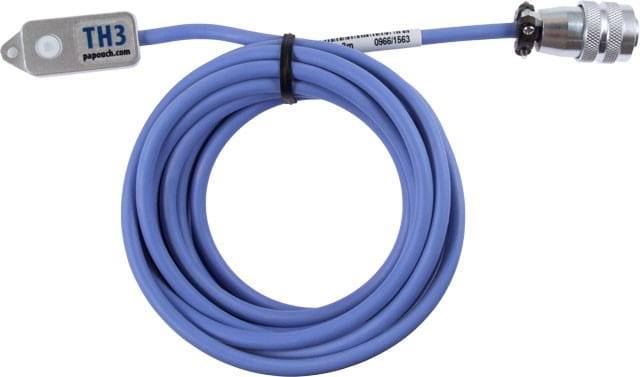

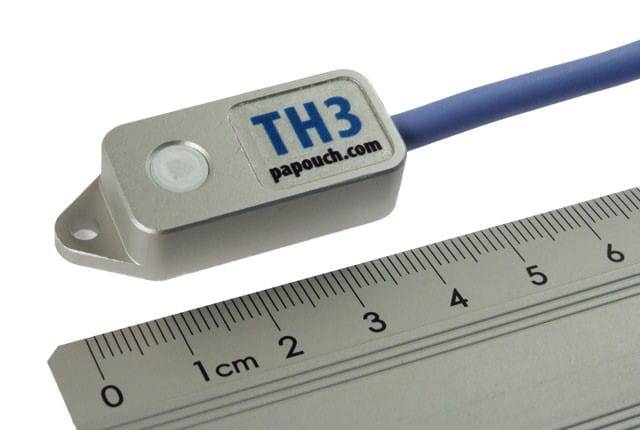

Temperature and Humidity Sensor for TH2E, THT2, or Papago
- Length: Variants available in different lengths.
- Temperature measurement range: from -40°C to +125°C.
- Humidity measurement range: from 0% to 100% RH.
- Sensor dimensions: Anodized aluminum prism measuring 40 × 16 × 10 mm.
- IP Protection: IP 54.
- Sensor cable diameter: 4.7 mm.
- Sensor cable material: blue silicone.
- Sensor cable temperature resistance: from -60°C to +200°C (during movement).
Kit Includes
- Main unit Papago 2TH ETH
- Temperature and humidity sensor 3m
- CE MonitorApp Basic 12 months
