Quido ETH 10/1: 10 inputs, 1 output and thermometer

Rating:
0
Gross price: €268.62
incl. 23.00% TAX, excl. shipping costs

Regular price:

268.62
The lowest price during 30 days prior to the reduction:
Net price: €218.39
excl. 23.00% TAX, excl. shipping costs

Regular price:

The lowest price during 30 days prior to the reduction:


quantity szt.
You gain 873 points [?]

product unavailable

* - Field mandatory
Vendor: Papouch
Product code: QUIDO_ETH_10/1_1

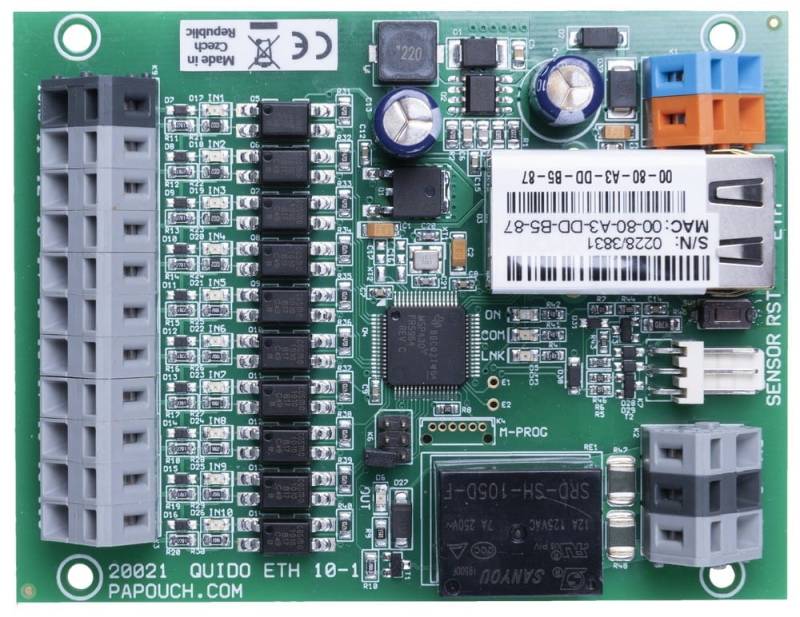

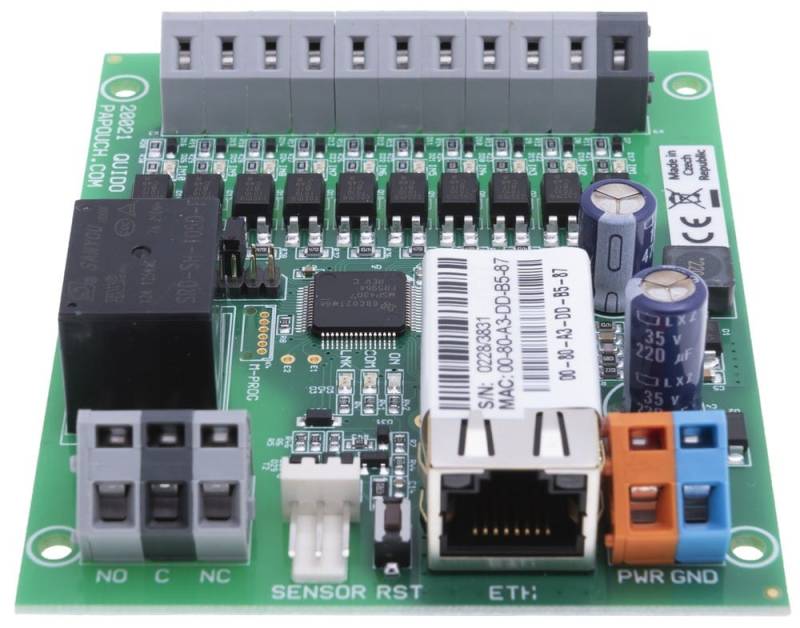

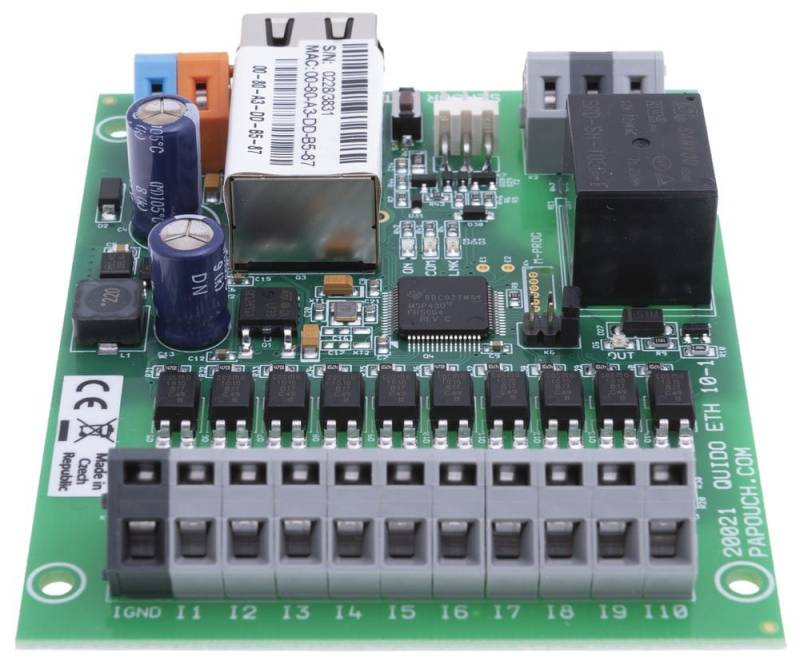

Quido ETH 10/1 includes 10 digital inputs, 1 output and thermometer.



Quido connects directly to a LAN (Ethernet) and can be fully controlled and managed through a web interface. Inputs are designed to connect voltage or contacts – can distinguish two states (0 and 1). The outputs are relays with a changeover contact. The thermometer can be connected to a cable of up to 15 meters and is able to measure temperatures in the range from -55 to +125 °C.

Thermometers, plexi covers, metal boxeses or DIN rail holder ban be found in Quido accessories.

Features of I/O module

  • Connects directly to LAN (10/100 Ethernet)
  • Controlled by: Web interface, e-mail, SpinelMODBUS TCPSNMPHTTP GETXML and Wix applications
  • E-mail notification (without SSL/TLS, port 25).

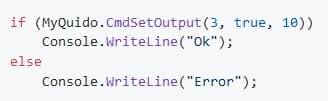

  • For developers: Spinel.NET library on Github with examples in C# (documentation only in Czech)
  • LED indication of power, communication, and the status of inputs and outputs.
  • 10 Galvanically isolated digital inputs for voltage or contacts.
  • 1 Output = changeover contact relays.
  • 1 Thermometer with a measuring range of -55 to +125 °C.
  • Automatically sends information about changes on the inputs.
  • Autonomous control based on the measured temperature.
  • Counts pulses on the inputs.
  • Operating temperature of electronics -20 to +60 °C.
  • External power supply 8 to 30 V.
  • Plastic lever for Wago 236 terminals (standard part of delivery).

Basic functions and block diagram of Quido ETH module

Basic functions of I/O module

  • Reads the current status of inputs

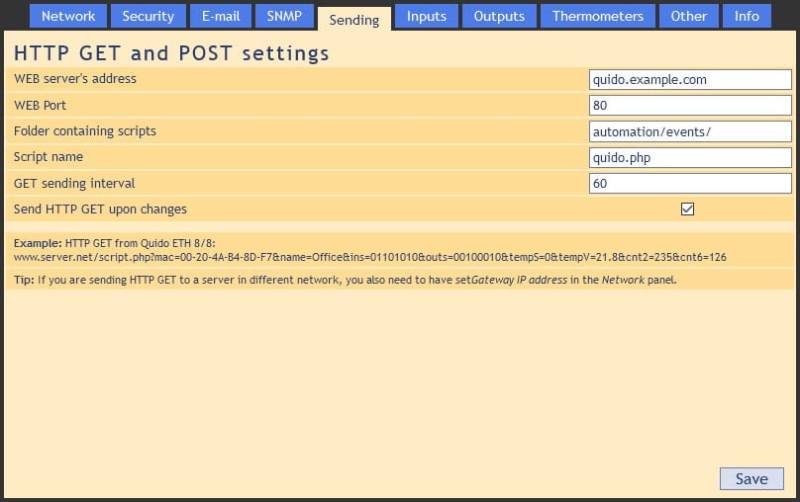

  • Automatically sends information (email, HTTP GET, ...) about changes on the inputs.
  • Counts pulses on the inputs or changes in the status of the input
  • Control of output relays with a changeover contact
  • Configuration of the outputs for a defined period
  • Thermometer: measuring range of -55 to +125 °C
  • Temperature monitoring (the relay closes when temperature changes, closes for a predefined period when a specified temperature has been reached; sends an e-mail or HTTP GET)

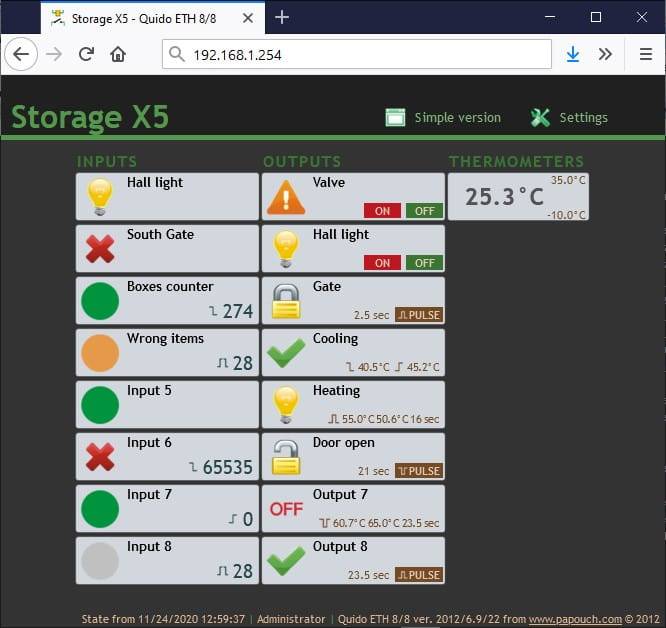

The main page of Quido ETH 8/8

Practical applications

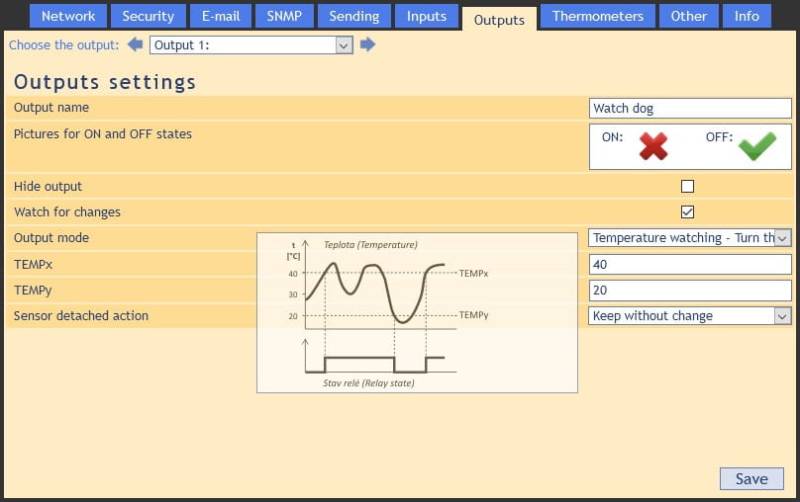

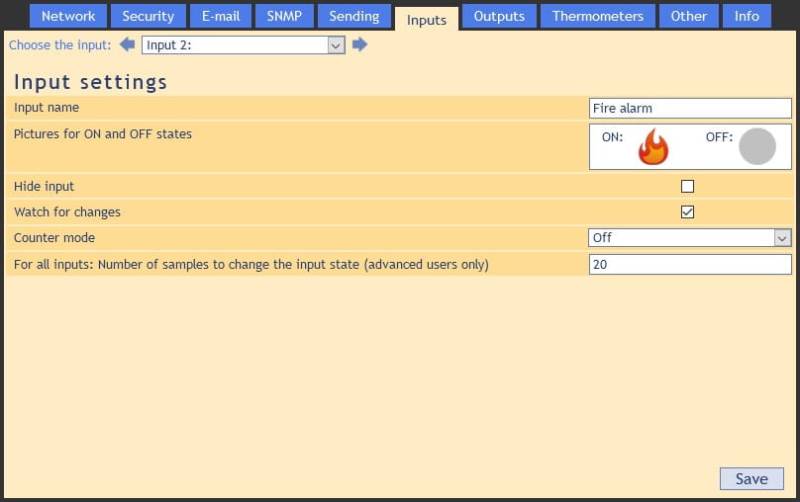

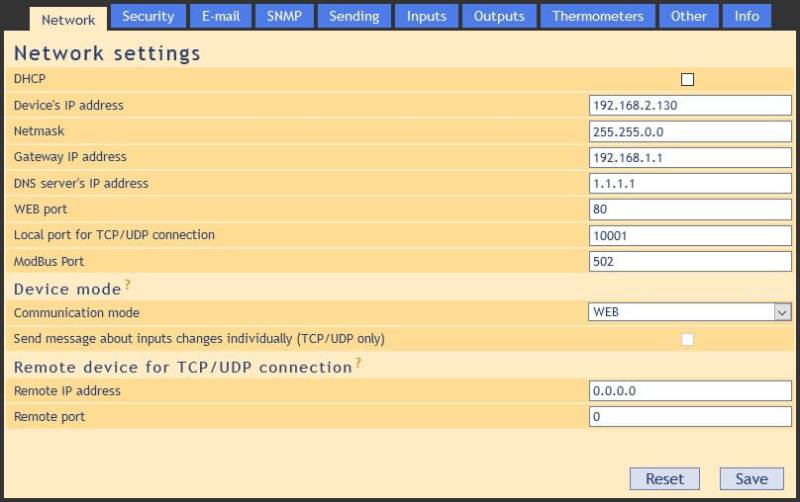

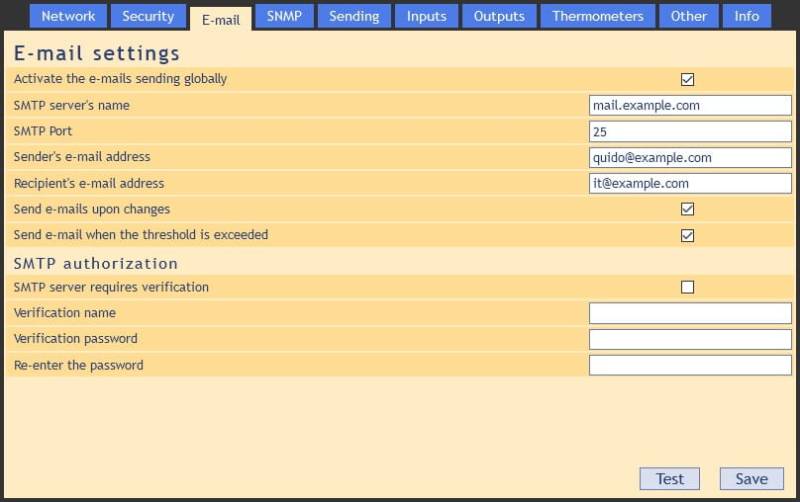

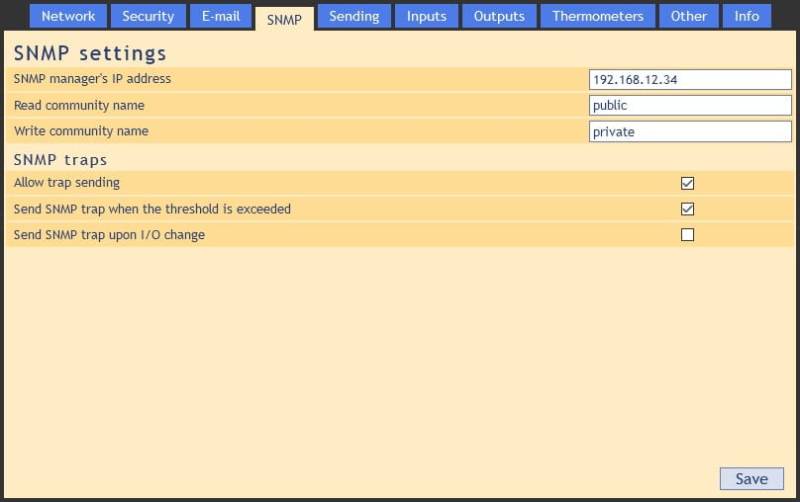

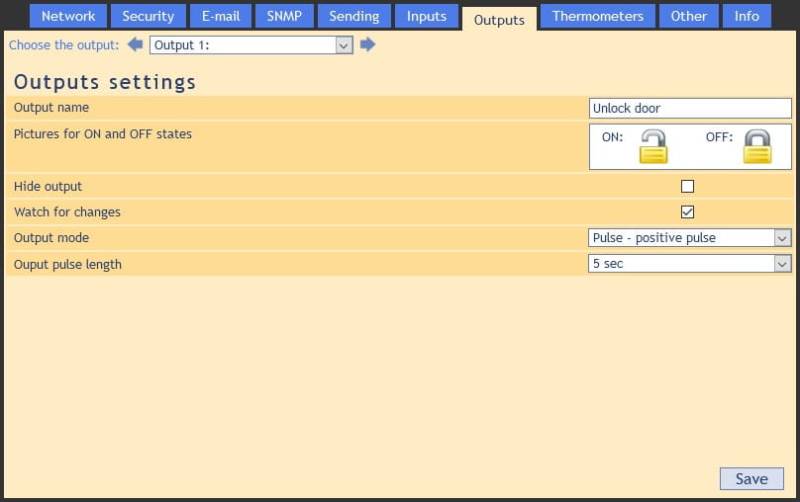

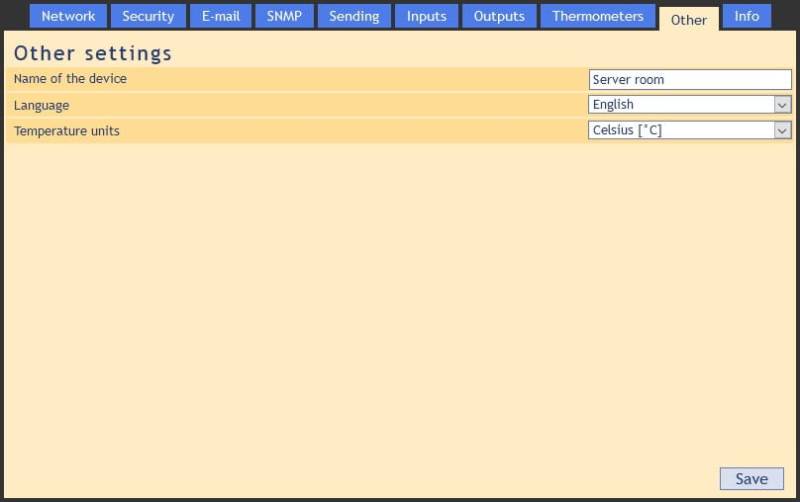

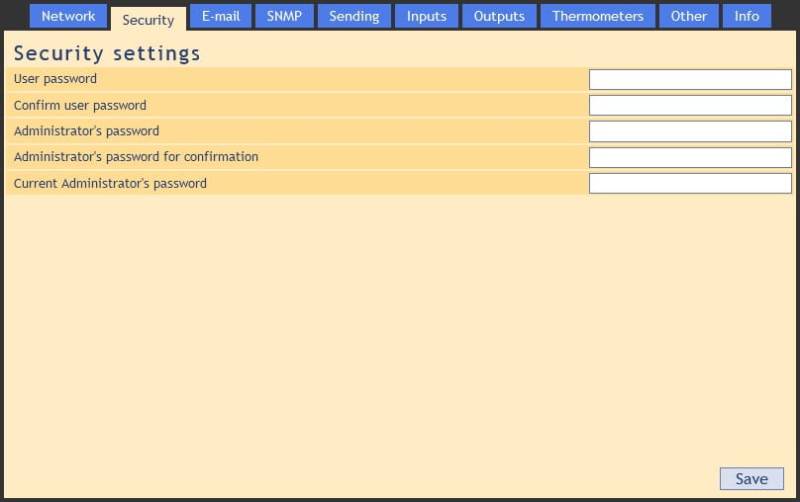

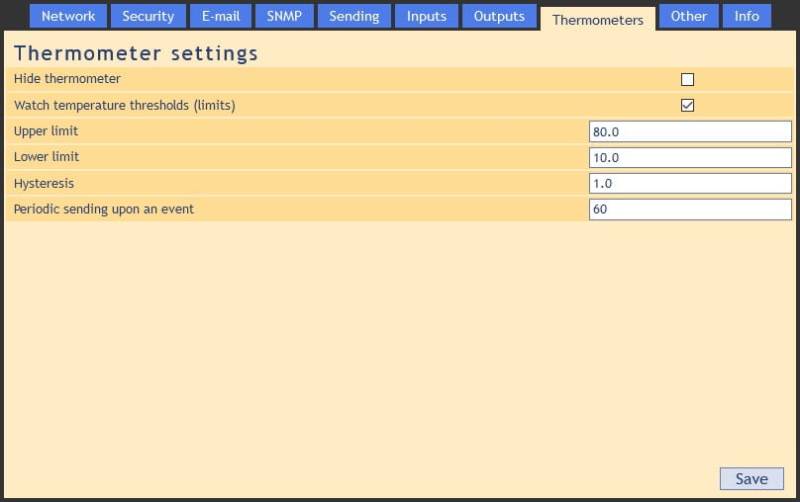

Configuration via web interface (example from Quido ETH 8/8)
