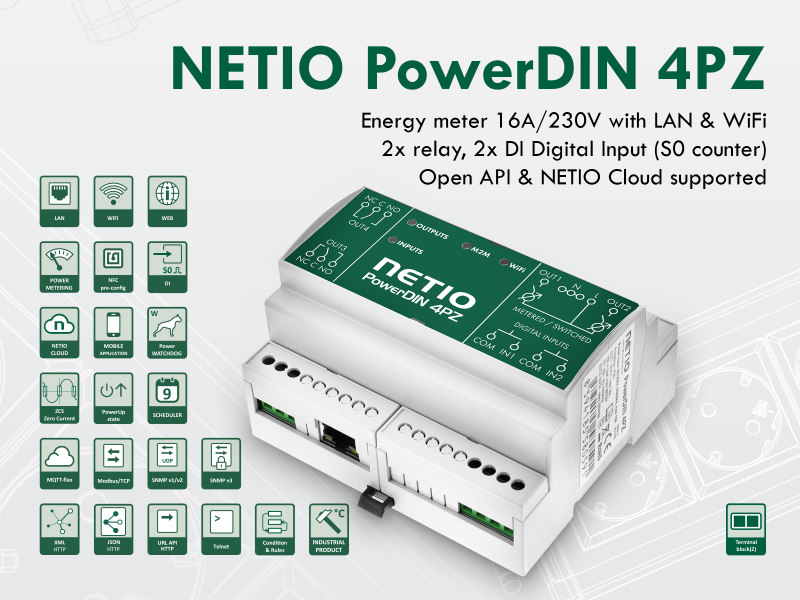

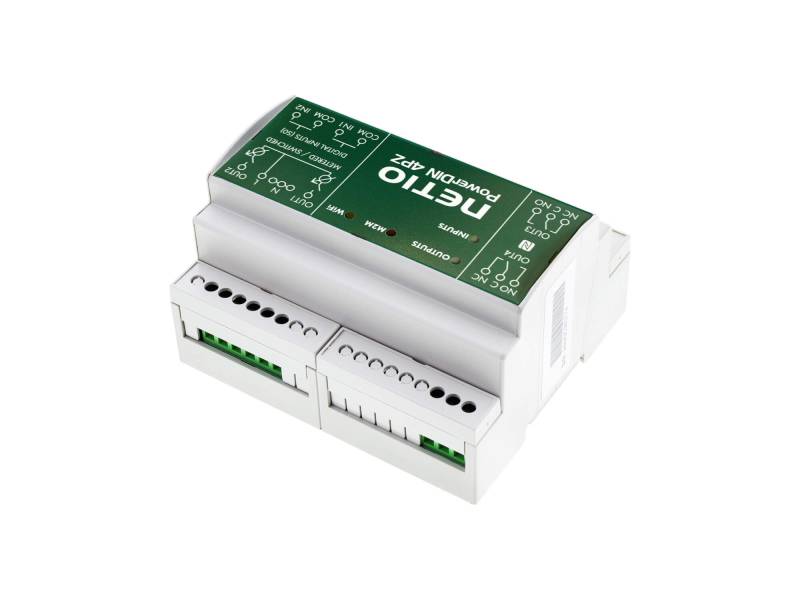

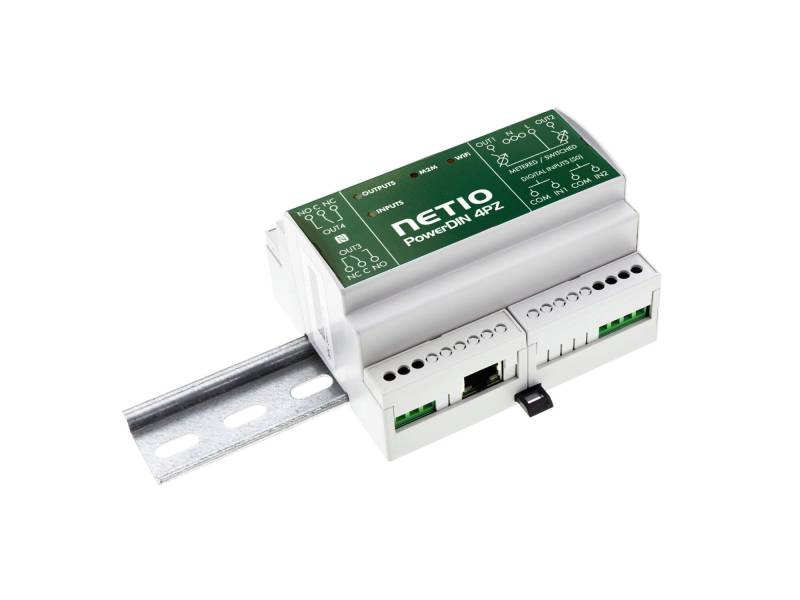

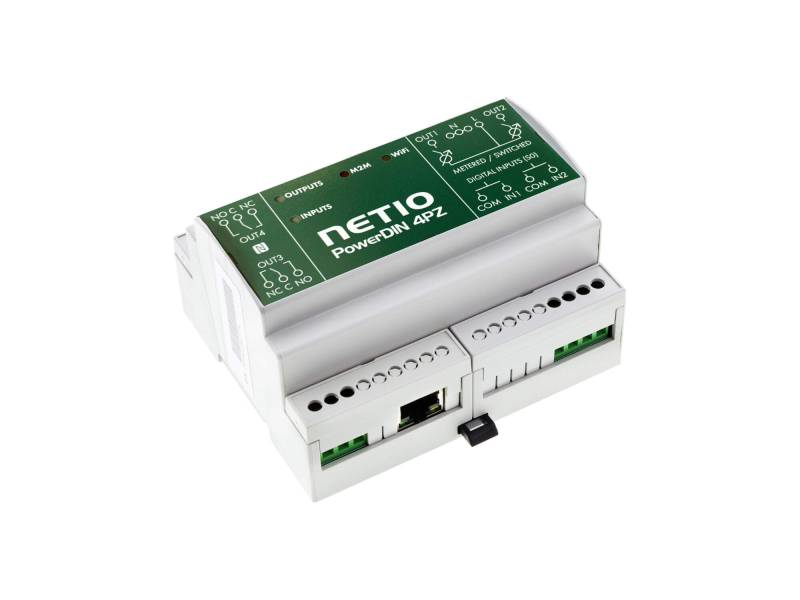

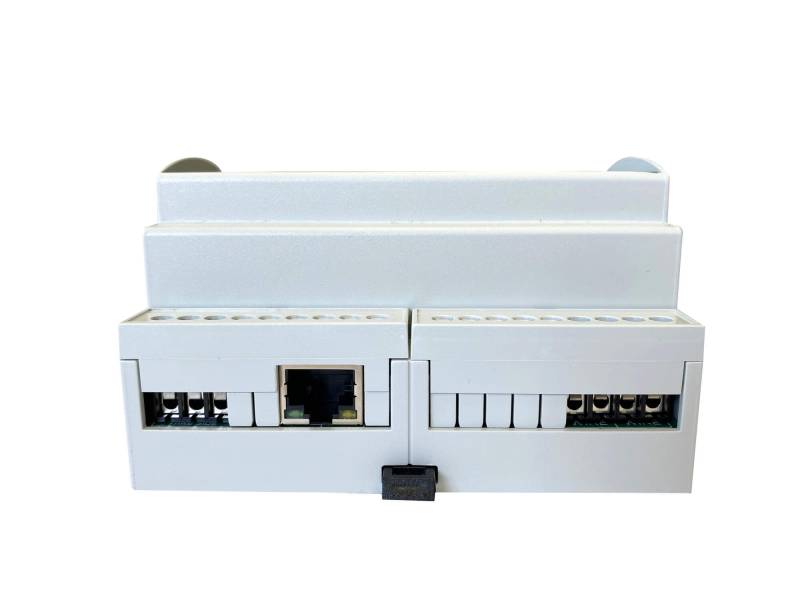

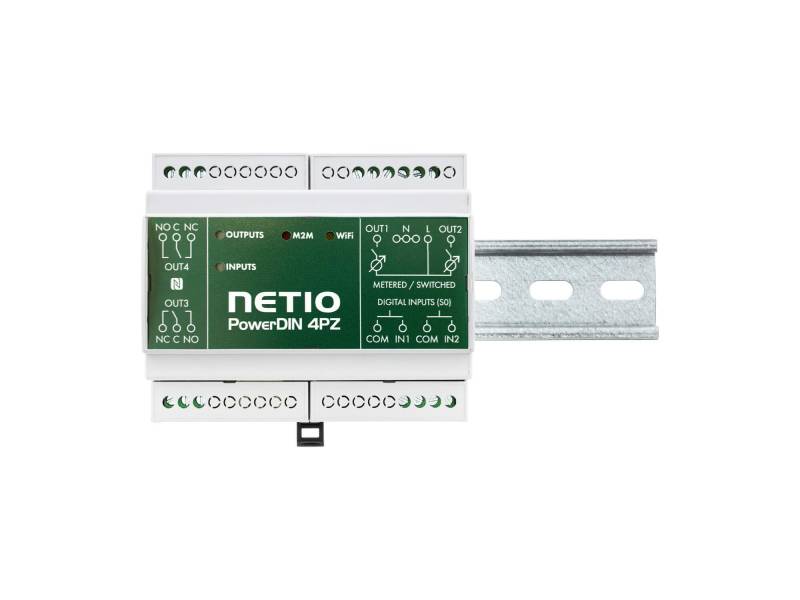

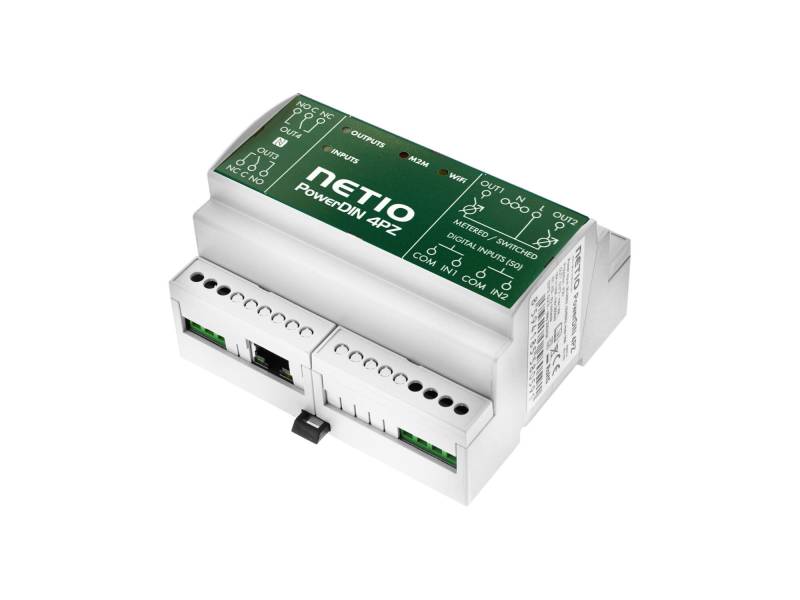

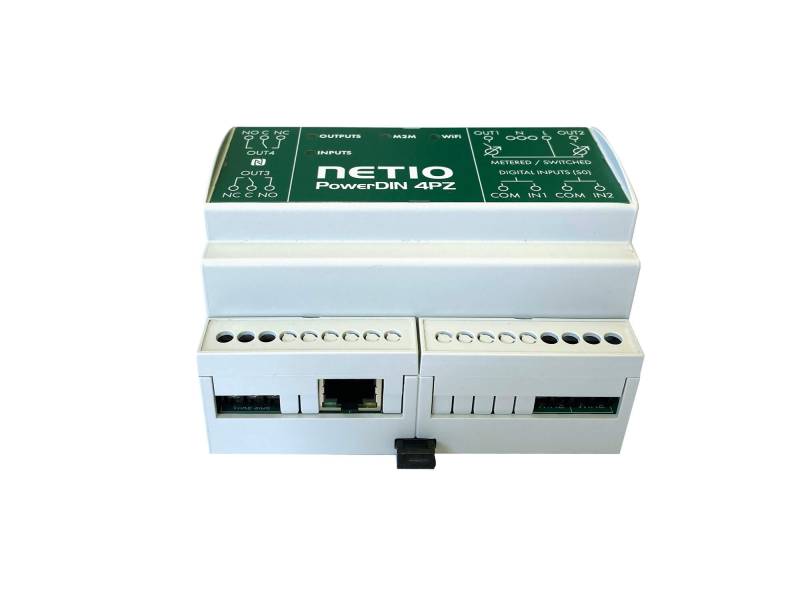

NETIO PowerDIN 4PZ - Energy Meter with Two Channels, 110-230V Voltage, and 16A Max Current

PowerDIN 4PZ is an advanced energy meter with two channels, operating at 110-230V voltage and a maximum current of 16A, designed for DIN rail mounting. This intelligent device allows for remote control via LAN/WiFi and a web interface. Each of the four outputs can be independently turned on or off using the web interface, Open API, and the NETIO Cloud service.

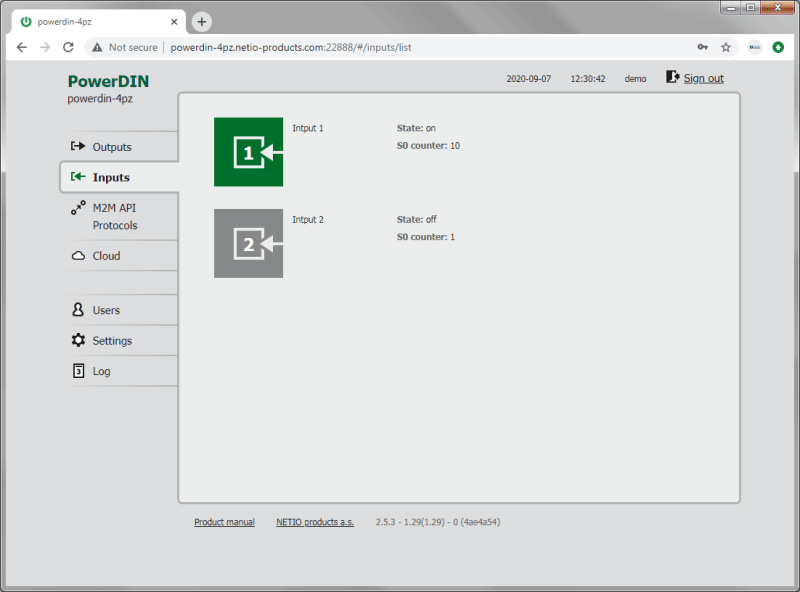

Additionally, the status of two digital inputs (including the S0 pulse counter) can be remotely read. With the Open API interface, the device can be easily integrated with systems from third-party manufacturers using various protocols (JSON, Modbus/TCP, SNMP, MQTT-flex, Telnet, etc.).

Benefits:

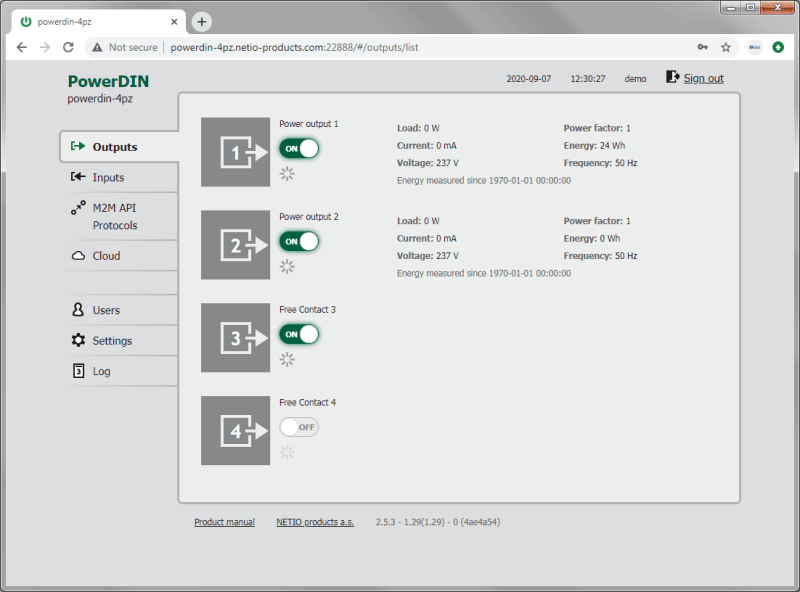

• Individual Output Control: Each of the four meter outputs can be independently turned on or off using an intuitive web interface. This means you have full control over connected devices, enabling flexible energy management.

• Remote Management: With built-in LAN/WiFi support and the NETIO Cloud service, you can control your devices from anywhere in the world. It's an ideal solution for remote monitoring and device restarts.

• Integration with Other Systems: The open API interface allows easy integration with various third-party systems using different protocols such as JSON, Modbus/TCP, SNMP, MQTT-flex, Telnet, and more. This gives you greater flexibility in customizing the product to your needs.

• ZCS - Zero Voltage Switching: The ZCS function minimizes voltage spikes and extends the lifespan of connected devices. This is particularly important when switching "problematic" devices such as LED lighting or electric motors.

• Scheduler (Output Scheduling): With the Scheduler function, you can schedule the turning on and off of outputs at specified times and days of the week, helping optimize energy management.

• PowerUp State Monitoring: The ability to set the output state immediately after device startup is useful in many industrial applications.

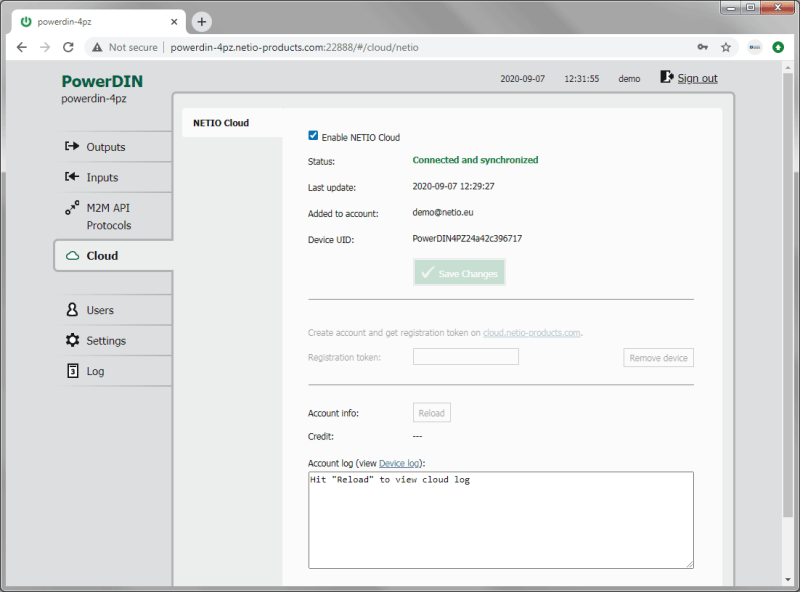

• NETIO Cloud: The NETIO Cloud service provides secure access to the device from anywhere in the world, and with secure SSL connection, you can be sure your data is protected.

Technical Specifications:

• Input Voltage: 110/230V

• Outputs: 4 x IEC-320 C13 socket

• Electrical Measurement: None (however, individual on/off control is possible)

• M2M Protocols: JSON, Modbus/TCP, SNMP, MQTT-flex, Telnet, and others

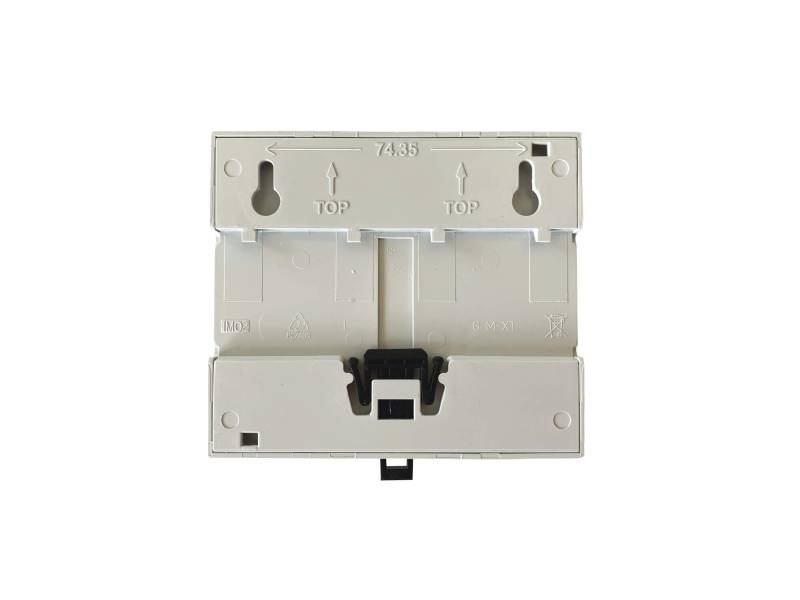

• Mounting: Horizontal, vertical, or as a 1U device in a rack cabinet

Online Demo - LINK

Login: demo

Pass: demo

Applications of NETIO PowerIN 4PZ:

• Electricity Measurement and Distribution: PowerDIN 4PZ is an excellent tool for measuring and distributing electricity in DIN-type electrical cabinets. It allows for precise monitoring and control of energy consumption.

• Remote Energy Consumption Monitoring: The device enables remote energy consumption monitoring in one or two circuits. This allows you to continuously track how much energy connected devices are consuming.

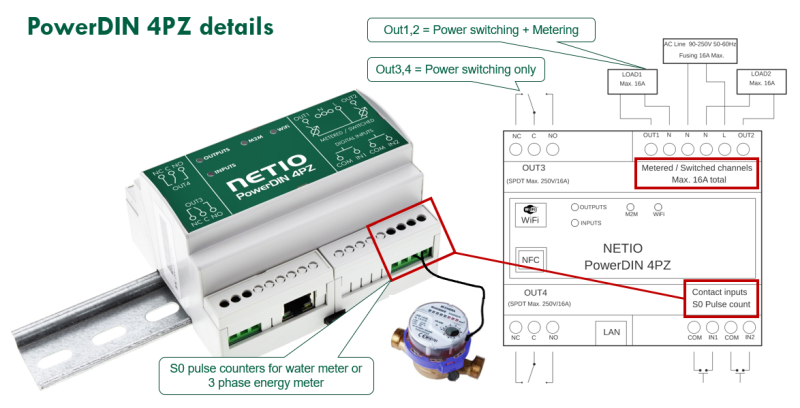

• Connection to Three-Phase Meter: If you need to monitor energy consumption above 16A, you can connect outputs In1 or In2 to the pulse output of a three-phase meter. This is ideal for professional industrial applications.

• Remote Output Control: Each output can be independently turned on, off, or reset (e.g., to restart all devices connected to the same circuit) using the web interface or the NETIO Cloud service.

• Charging Control for E-Bikes and Boats: PowerDIN 4PZ can be used to manage the charging of e-bikes, boats, and other devices with a maximum power of 3.6 kW (230V/16A).

Additional Advantages

Integration with Applications:

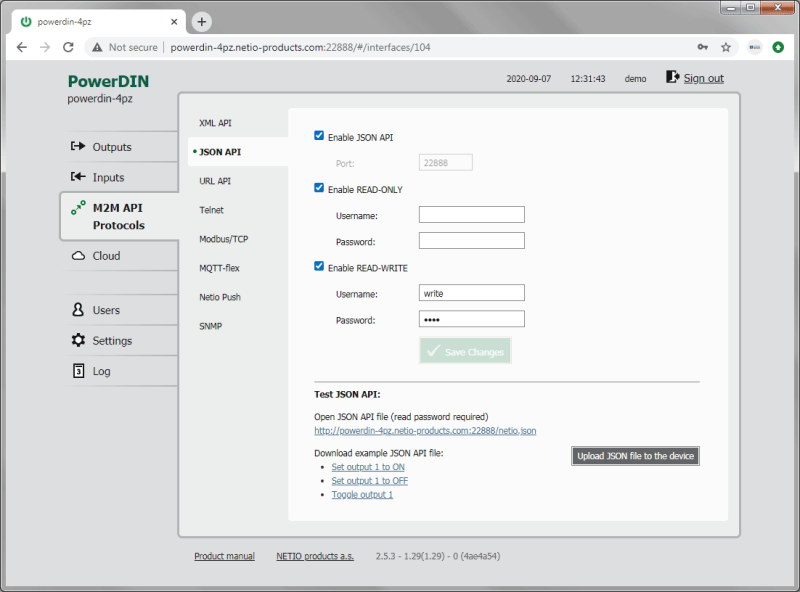

With support for various M2M protocols such as JSON, Modbus/TCP, SNMP, MQTT-flex, Telnet, the device can be easily integrated with applications from other manufacturers, increasing its flexibility.

Control via Mobile Applications:

Through the NETIO Mobile 2 application (Android and iOS), users can control the device outputs as long as they are on the same local network.

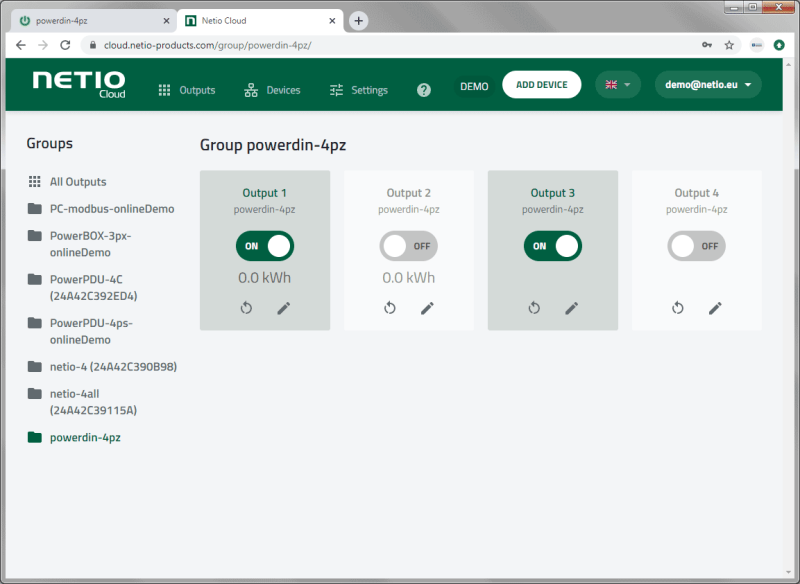

NETIO Cloud Service:

The NETIO Cloud service, available for a fee, allows central management of outputs from multiple devices in different locations. It's an excellent solution for remote control.
