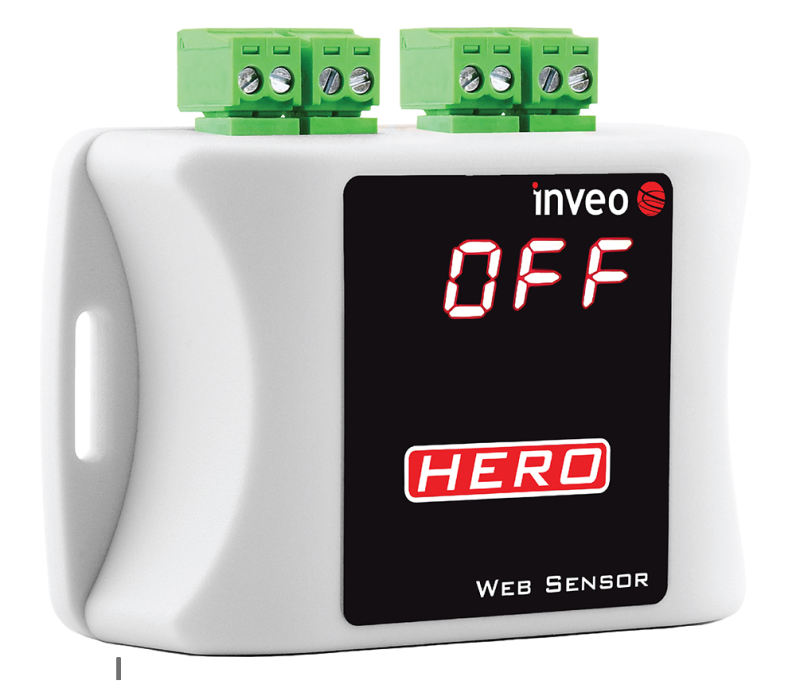

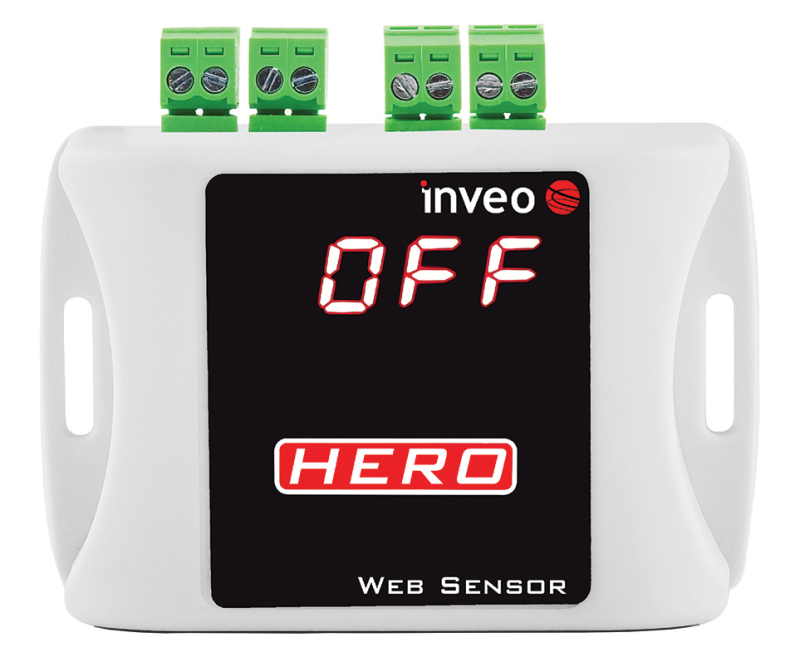

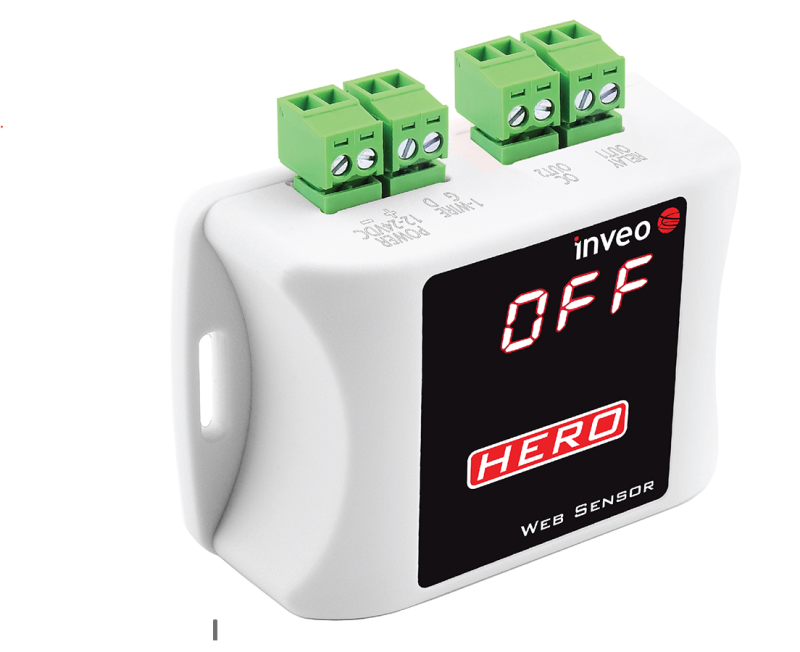

Hero Web Sensor: Precision Monitoring and Control with Sensors

The Hero Web Sensor is an innovative module that enables advanced monitoring of temperature and humidity, and provides control using various sensors. This versatile device can assist in maintaining optimal environmental conditions and controlling other parameters. Discover all its capabilities and benefits.

Key Information

CE MonitorApp Management Software – Easy Environmental Monitoring with Multiple Notification Options

CE MonitorApp is an advanced software that enables effective monitoring of climatic conditions in various environments, such as data centers, warehouses, production lines, or industrial spaces. This system was created to provide users with full control over the climatic conditions in their work environment, without the need for expensive equipment and complicated setup.

Register and Test for 30 Days Free

Click here to test for free

Benefits

1. Cost Savings:

• CE MonitorApp reduces the need for investment in expensive LTE modems, UPSs, or allocating server space.
• Minimizing IT infrastructure and maintenance expenses.

2. Customization:

• Possibility to customize and expand the application according to individual client requirements.
• Flexibility in integration with various systems and devices without limits for individual manufacturers.

3. Intuitive and Simple Operation:

• Easy setup and intuitive user interface.
• Quick access to data and analytics through the built-in WWW interface.

4. Advanced Notifications:

• Receiving SMS and email notifications about changes in environmental conditions.
• Possibility to set alerts based on individual parameters.
• Exporting data to xlsx or csv file

5. Security and Data Protection:

• Optional SecurityHUB module providing additional data encryption.
• Confidence that sensitive information is securely stored and transmitted.

6. Comprehensive Technical Support:

• Professional technical support available by phone, email, or chat.
• Quick problem resolution and support in configuration.

Benefits:

• Versatility of Monitoring: Hero Web Sensor allows monitoring data from up to 4 different sensors, including temperature, humidity, flooding, and many others.

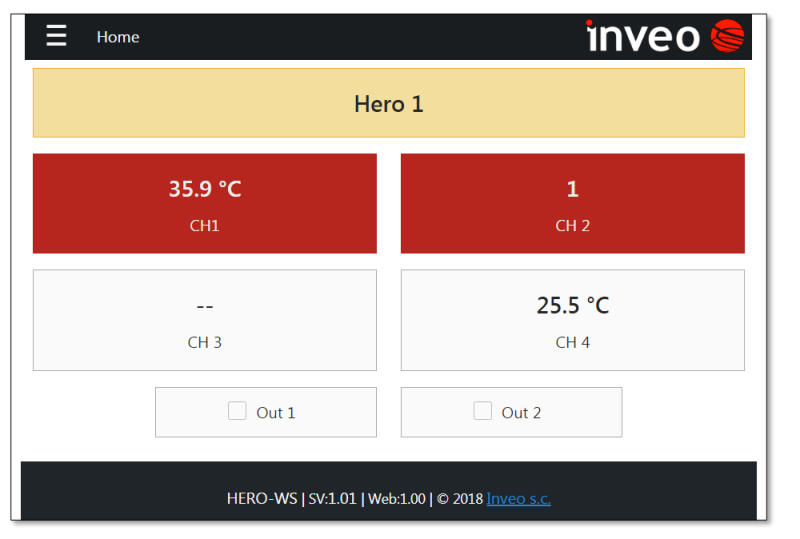

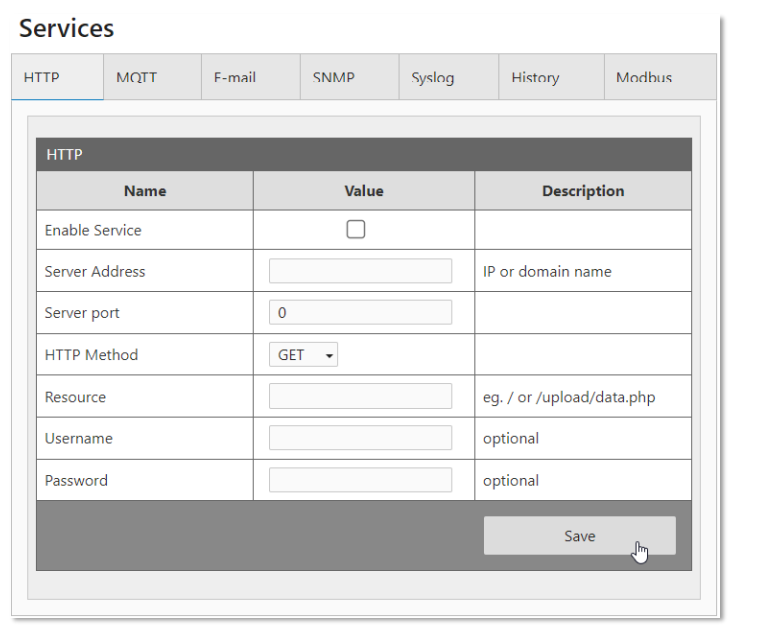

• Simple Communication: Through LAN network communication, users can read data from sensors using standard web browsers, Windows/Linux command line, and various protocols such as HTTP, MQTT, SNMP, Modbus TCP, email, and syslog.

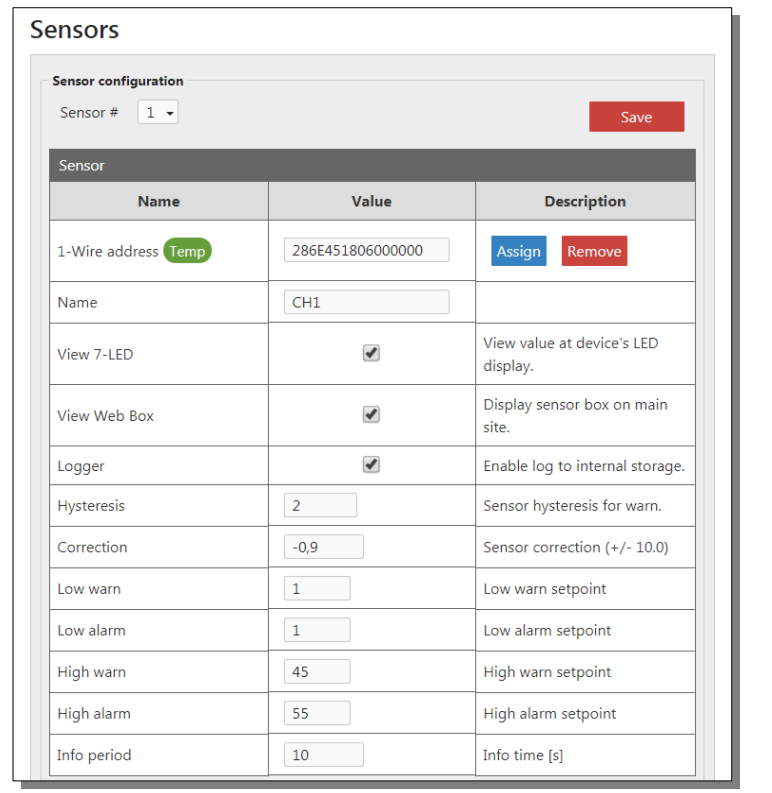

• Warning Notifications: Hero Web Sensor enables setting warning and alarm values for measured parameters, allowing quick response to changes.

• Integrated Display: Equipped with a clear, red 7-segment display that shows measured values, IP address, and DHCP status, facilitating real-time monitoring.

• Output Control: Features two output channels - relay and transistor OC, which can operate in various modes such as astable, bistable, and single trigger.

• Time Synchronization: Hero Web Sensor automatically synchronizes time with SNTP servers, ensuring accurate timing for logs and data.

Technical Data:

• Power Supply:

• PoE (IEEE 802.3af)
• DC: 10V - 24V DC
• Power consumption: 1.5W

• Inputs:

• 1-wire bus

• Outputs:

• OUT1:

• Output type: relay
• Maximum operating voltage: 30V DC
• Maximum relay load current: 1A
• NO output (normally open)

• OUT2:

• Output type: transistor OC
• NO output (normally open)

• LAN:

• Ethernet 1x10Mbps, RJ45

Dedicated Sensors for the Hero Web Sensor Device:

• WebSensor – T:

• Temperature measurement
• Temperature measurement range: -55°C to +125°C
• Accuracy: ±0.5°C within the temperature range -10°C to +85°C
• Accuracy: ±2°C within the temperature range -55°C to +125°C

• WebSensor – HT:

• Temperature measurement
• Relative humidity measurement
• Humidity measurement range: 0÷100% RH
• Accuracy: ±3%
• Temperature measurement range: -40÷85°C

• WebSensor – COMBO:

• Temperature measurement
• Relative humidity measurement
• Two digital inputs (CONTACT and LEAKAGE) for connecting various sensors

Summary

The Hero Web Sensor is an advanced tool for monitoring, controlling, and responding to changing environmental conditions and sensors. With precise measurement and flexible configuration options, it is the ideal solution for companies that depend on maintaining optimal working conditions and safety. It offers full control and insight into the environment, allowing for quick response to any changes.
