AVTECH Tank Fuel Level Sensor

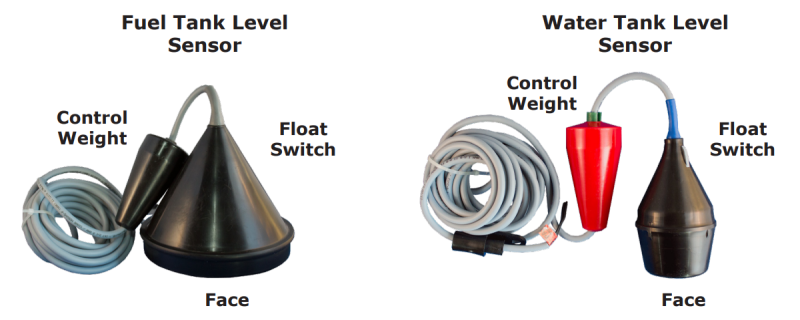

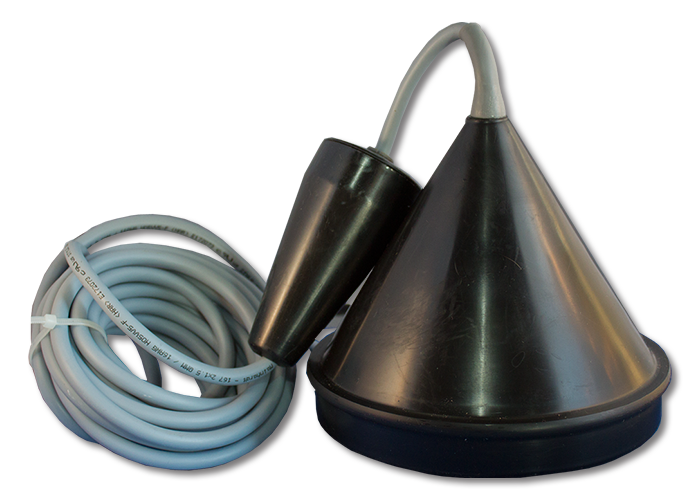

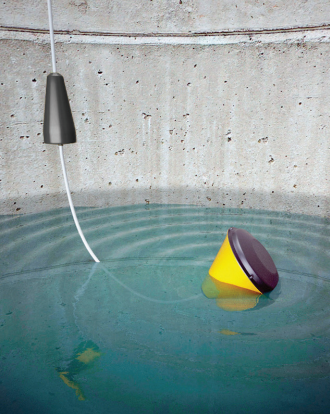

The AVTECH Tank Fuel Level Sensor is a reliable tool for monitoring the rise and fall of fuel or other aggressive fluids in containers, such as large tanks. Equipped with a float switch and a chemical-resistant polypropylene weight, it ensures durability and measurement accuracy.
Key Benefits:
- Multi-functionality: Monitoring of two levels (high and low) with a single sensor.
- Chemical Resistance: Float switch and weight made of chemical-resistant polypropylene.
- Durability: 16' (4.88 m) protective PVC cabling ensures long-lasting protection and reliability.

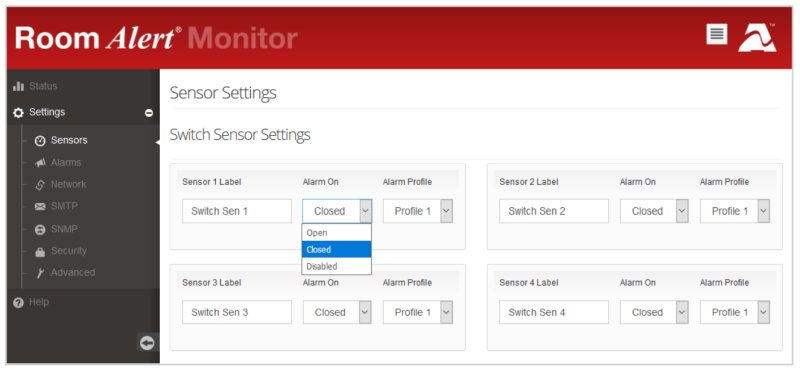

- Versatility: Compatibility with various Room Alert products.

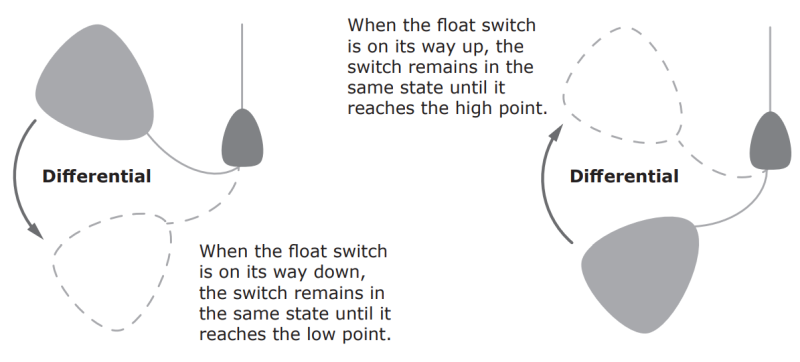

- Precision Measurement: Switch state differential range from 10" (25.4 cm) to 50" (1.27 m).
- Protection: Cabling protected to IP67 and NEMA 6 standards, providing protection in challenging conditions.
Technical Specifications:
- Monitored Conditions: Fuel level in tank
- Sensor Type: Switch
- Power Supply: Monitoring unit
- Attached Tank Sensor Cable: Low-voltage 2-wire, PVC, IP67 NEMA6
- Cable Length: 4.88 m
- Maximum Cable Length: 900' (274.32 m)

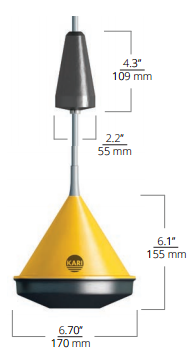

- Float Switch Dimensions: 6.1" H x 6.7" W (15.5 cm x 17.02 cm)
- Weight Dimensions: 4" H x 2.25" W (10.16 cm x 5.72 cm)
By using the AVTECH fuel level sensor, you ensure effective monitoring of fluid levels in your tank, minimizing the risk of unforeseen issues related to their shortage or excess.
