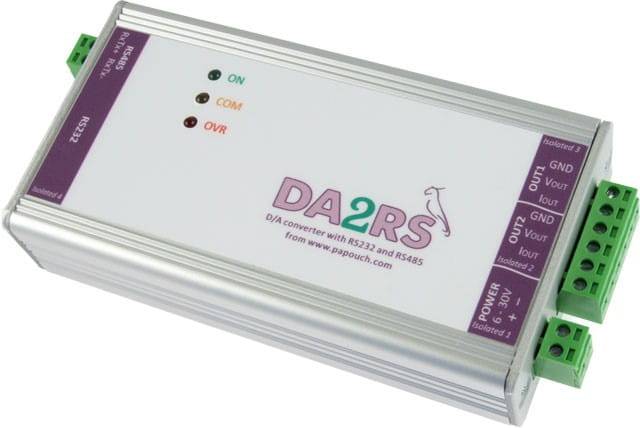

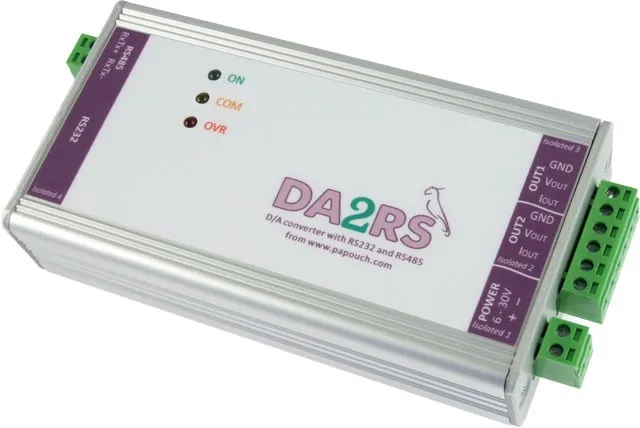

DA2RS: DA converter with two voltage or current outputs with RS232/RS485

Rating:
0
Gross price: €245.29
incl. 23.00% TAX, excl. shipping costs
245.29
Net price: €199.42
excl. 23.00% TAX, excl. shipping costs
quantity szt.
You gain 1,067 points [?]

product unavailable

Vendor: Papouch
Product code: DA2RS_1

DA2RS is a universal converter with analog output used for control and regulation. Two independent analog outputs can be either voltage or current. Available ranges are: 0 - 10 V, 0 - 5 V, ±10 V, ±5 V, 4 - 20 mA, 0 - 20 mA, 0 - 24 mA. Values for the outputs are sent from a control system using RS232 or RS485 line.

DA2 analog outputs can be used for process regulation and automation or controlling analog inputs (e.g.  electronic thermostats, electronic valves, speed control, dimming of lighting,...).

Princip funkce

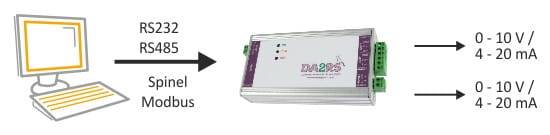

Device function principal

Features

  • Two analog outputs (independent settings for current or voltage). Available ranges:
    0 – 10 V, 0 – 5 V, ±10 V, ±5 V, 4 – 20 mA, 0 – 20 mA, 0 – 24 mA
  • Output range divided to 10 000 divisions.
  • Active current outputs.
  • Each output galvanically isolated.
  • 16 bit D/A converter
  • RS232 or RS485 communication using Spinel or Modbus RTU.
  • Wide power voltage range (8 to 30 V).

Block diagram

The device is divided into four completely galvanically isolated sections:

  1. Power and processor unit,
  2. communication lines (RS232 a RS485),
  3. output 1,
  4. output 2.

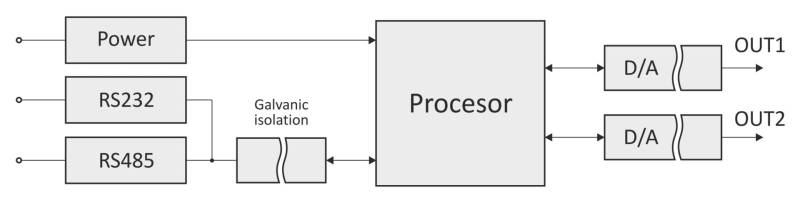

Block diagram of DA2RS

Block diagram of DA2RS

Dueto the galvanic isolation, the analog converter can be connected to other systems without damaging the equipment or adversely affecting the systems beacuse of the connection of different voltage potentials via a common ground conductor..
