LANTICK PE-8-0 An advanced module for controlling electrical circuits over a LAN network, equipped with 8 relay outputs.

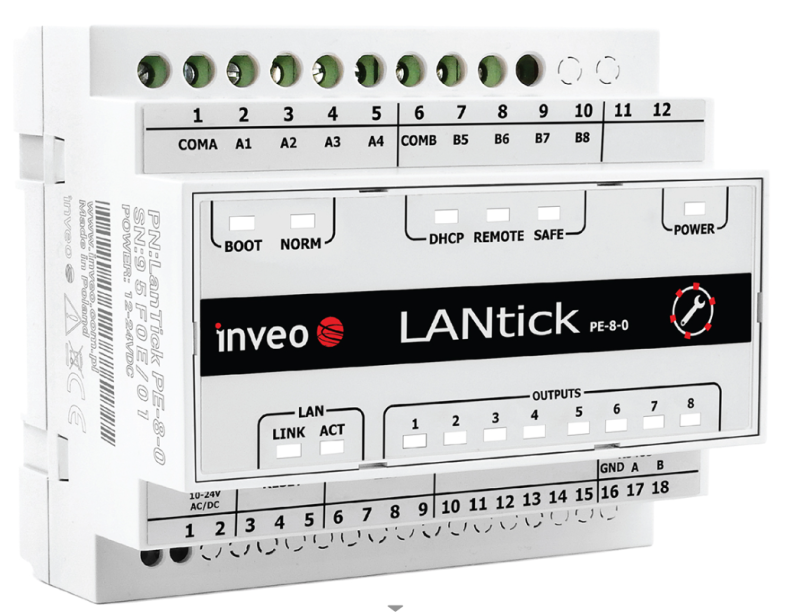

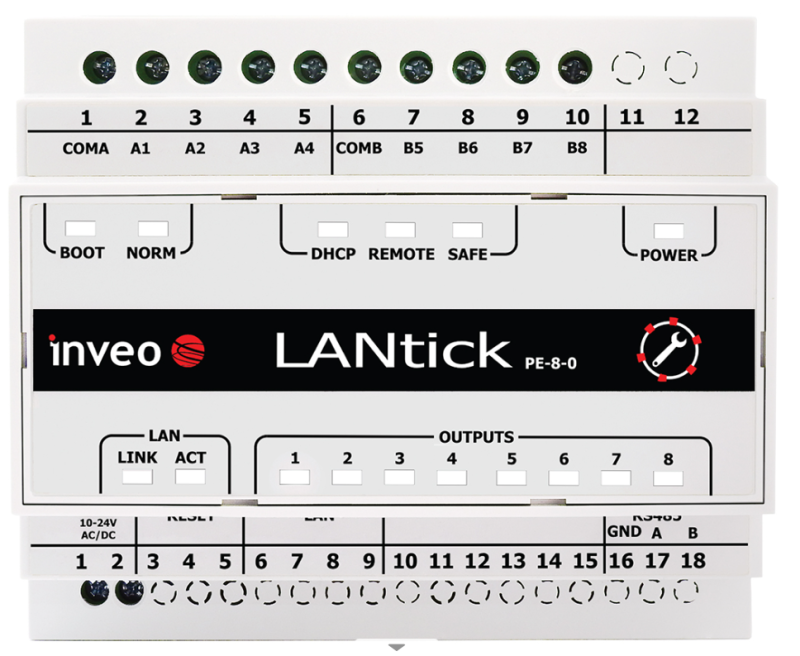

Inveo LANTICK PE-8-0: Internet-Controlled Relay Output Module

The Lantick PE-8-0 is a smart relay output module that enables control and monitoring of devices over the internet. This advanced module offers 8 relay outputs, each of which can be independently configured to suit your specific needs. The unique flexibility of this device allows for control via a built-in web page, various communication protocols, or by integrating with other modules.

Benefits

• Benefits Flexibility and Convenience: With 8 relay outputs, the PE-8-0 module enables control over multiple devices or processes simultaneously. This means you can manage various aspects of your project without the need to switch between multiple devices.

• Remote Access: The module allows for remote control of outputs via a LAN network, meaning you can control your devices from anywhere in the world via the internet.

• Diverse Operating Modes: Each output can be individually configured, choosing the operating mode that best suits your needs. The module supports astable, bistable, and single-trigger modes.

• Integration with Other Devices: The module can work in conjunction with other Inveo devices, opening doors to creating intelligent systems, including smart offices or homes.

• Wide Range of Protocols: The module's software supports a variety of communication protocols, such as HTTP, SNMP, Modbus TCP, and more. This means the module is compatible with various systems and platforms.

• Monitoring and Control: With the ability to display output states on a selected graphic background, you have intuitive control over devices and processes.

• Low Power Consumption: The PE-8-0 module consumes a small amount of energy, helping to maintain low operational costs.

• Simple Configuration: The device's configuration is easy and intuitive, thanks to tools provided by Inveo.

Check out the test and configuration

Technical Specifications

• Power Supply 12-24VDC via a 3.5mm screw terminal,
• 12-24VDC Passive PoE via a LAN connector,
• power consumption: 1.5-4.2W (depending on the number of outputs activated).

When using power from the screw terminal, set the blue switch to the “up” position to avoid damaging the switch or computer socket. When using Passive PoE power, the switch should be set to the “down” position.

Communication 1 Ethernet port 1x10Mbps.

Outputs number of outputs: 8, output type: relay NO, maximum voltage: 250VAC, maximum load current: 2A per channel, relay operating modes: astable (alternating on/off), bistable, single trigger.

Communication Protocols Advanced software allows for communication through:

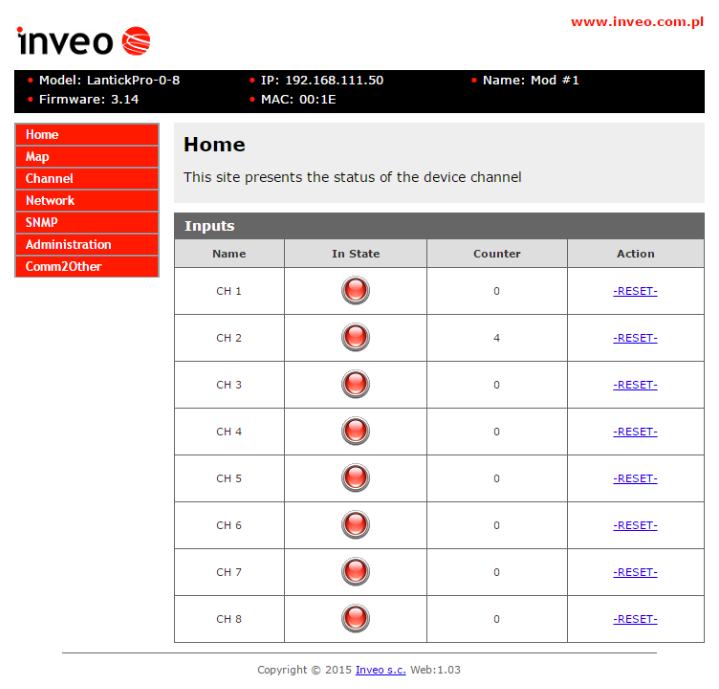

• a built-in WWW page, KNX/IP protocol,
• HTTP protocol,
• Inveo Dashboard access service http://dash.inveo.com.pl,
• M2M, SNMP protocol,
• Modbus TCP protocol,
• Windows command line program,
• Linux command line program,
• Android phone/tablet.

With such an extensive communication system, the device can be used in various fields of life. Additionally, the implemented KNX protocol and M2M communication, e.g., with the Lantick PE-0-8 module having inputs, allow for building an intelligent office or home.

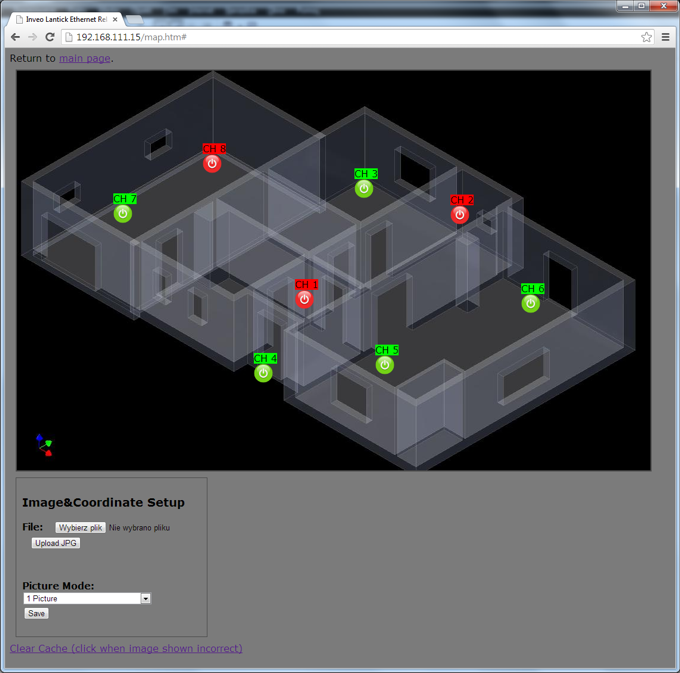

The device enables the presentation of output states on a background chosen by the user, allowing for control of outputs on a graphically represented building.

Device Configuration

Upon first startup, the device needs to be configured. The simplest method to configure Inveo devices is to use the Discoverer program. The program is available here.

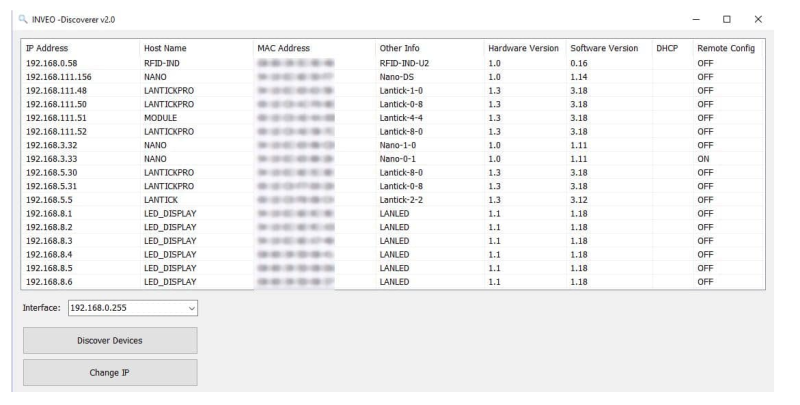

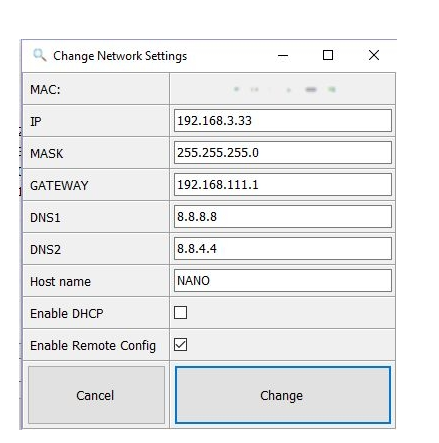

After installing and launching the application, all Inveo devices connected to the network will appear in the table. If the device is not found, select a different Interface or check the connection with the router. If the device has the Enable Remote Config option turned off, manual change of settings is necessary by changing the IP address of the computer. Detailed instructions for configuring the device can be found in the user manual.W przypadku, gdy urządzenie ma wyłączoną opcję Enable Remote Config, konieczna jest ręczna zmiana ustawień poprzez zmianę adresu IP komputera. Dokładna instrukcja konfiguracji urządzenia znajduje się w instrukcji obsługi.
